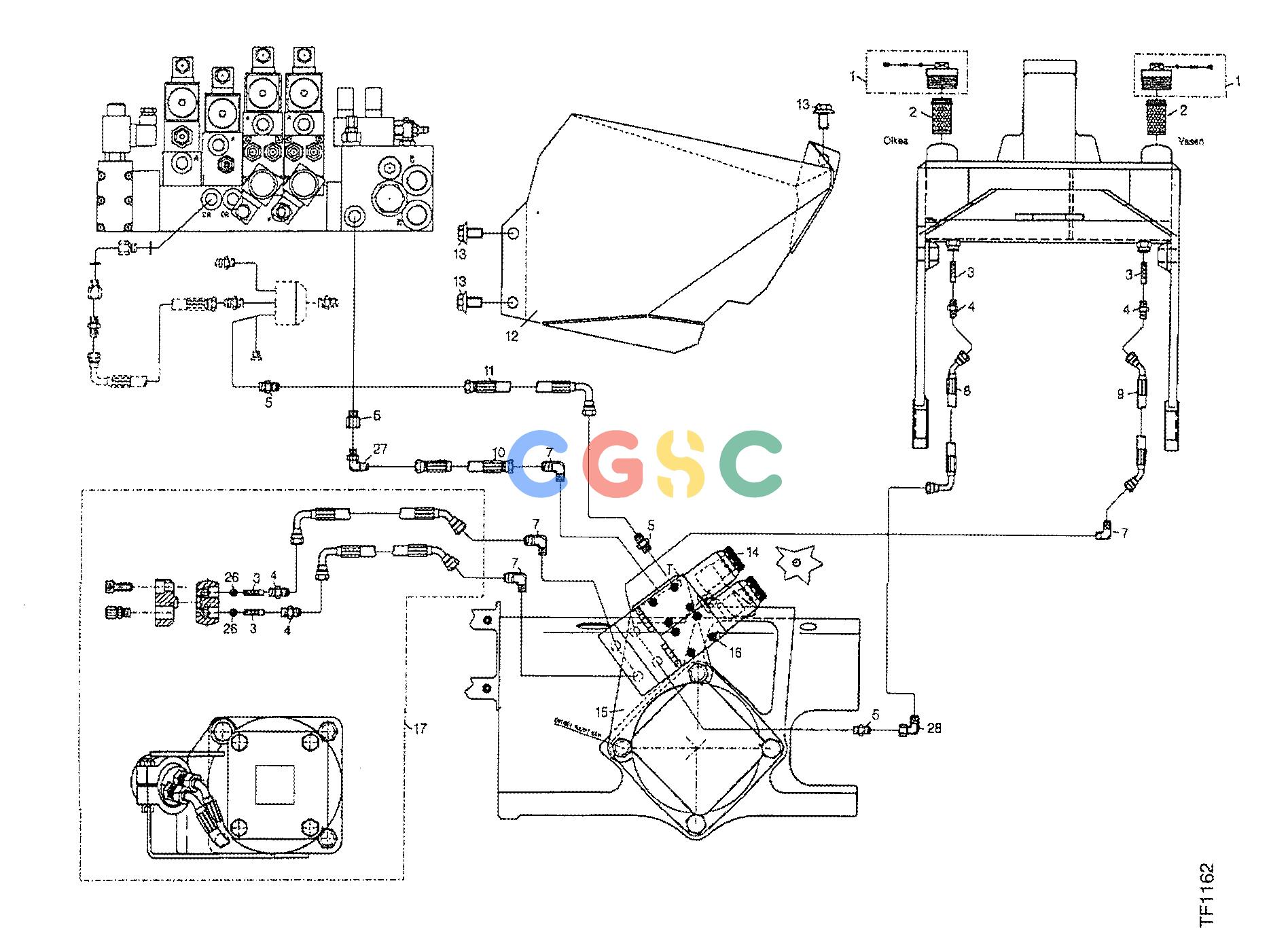

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F045006 11 76 TF1162 [TF1162]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047669
|
[2] |
Plug
|
|
| 2. |
F048002
|
[2] |
Valve
|
|
| 3. |
F048003
|
[4] |
Filter
|
|
| 4. |
F048004
|
[4] |
NIPPLE
|
|
| 5. |
F005057
|
[3] |
NIPPLE
|
|
| 6. |
F053724
|
[1] |
CONNECTION
|
|
| 7. |
F048005
|
[3] |
ELBOW CONNECTION
|
|
| 8. |
F048006
|
[1] |
HOSE-ASSY
|
|
| 9. |
F048007
|
[1] |
HOSE-ASSY
|
|
| 10. |
F048008
|
[1] |
HOSE-ASSY
|
|
| 11. |
F048009
|
[1] |
HOSE-ASSY
|
|
| 12. |
F048010
|
[1] |
PROTECTION
|
|
| 13. |
F040644
|
[3] |
Screw
|
|
| 14. |
F030987
|
[1] |
Pump
|
|
| 15. |
F048011
|
[1] |
Plate
|
|
| 16. |
F003410
|
[3] |
Screw
|
|
| 17. |
F053723
|
[1] |
Nozzle
|
|
| 22. |
F048013
|
[2] |
HOSE-ASSY
|
|
| 26. |
F047704
|
[2] |
STEEL BALL
|
|
| 27. |
F031937
|
[1] |
CONNECTION
|
|
| 28. |
F053722
|
[1] |
ELBOW CONNECTION
|
|
