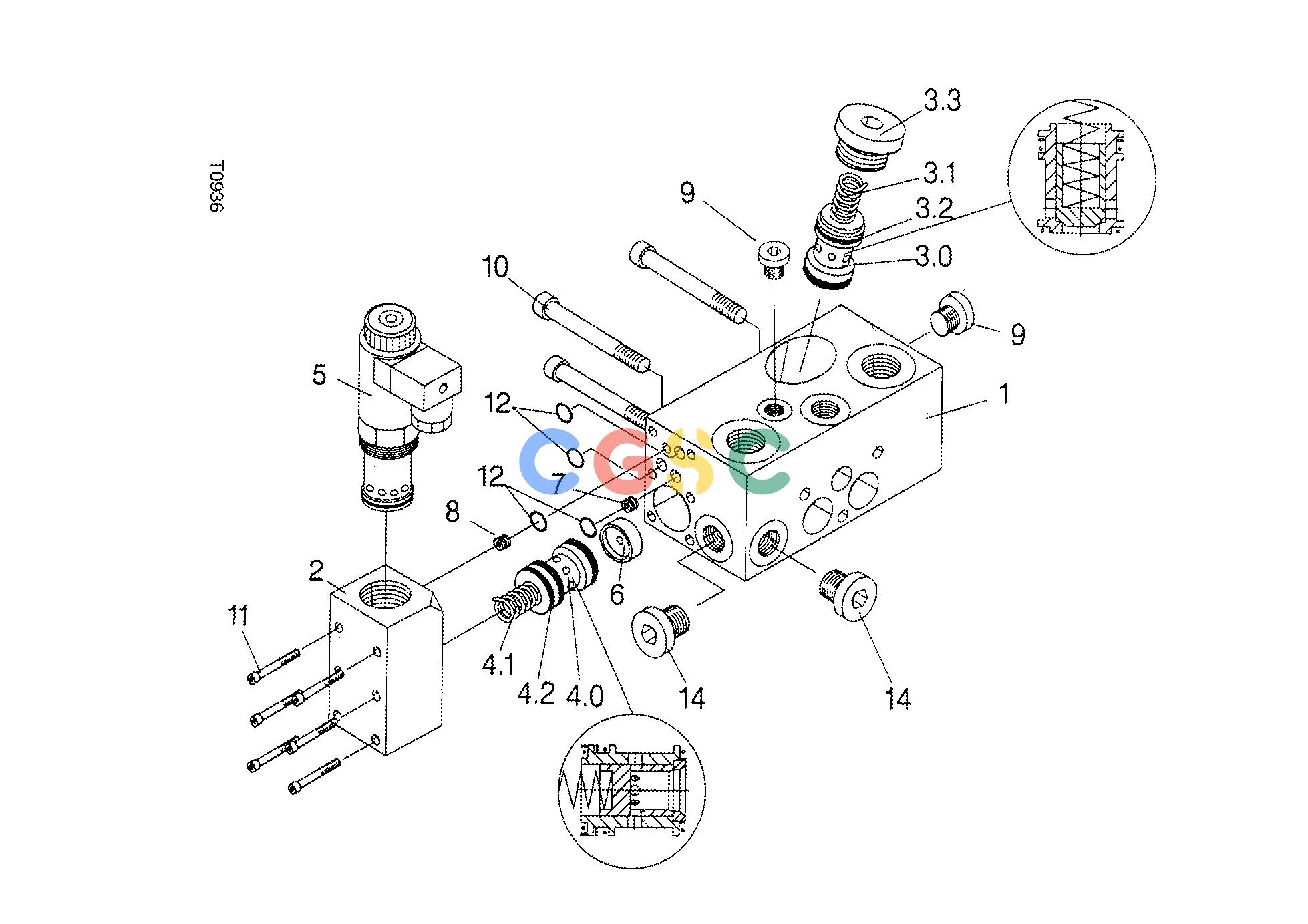

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE BLOCK, SAW F045006 11 20 T0936 [T0936]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F047842
|
[1] |
VALVE BLOCK
|
|
| 1. |
F021584
|
[1] |
VALVE BLOCK
|
|
| 2. |
F021585
|
[1] |
VALVE BLOCK
|
|
| 3. |
F018784
|
[1] |
Control Valve
|
|
| 3. |
F047849
|
[1] |
Spring
|
|
| 3. |
F008638
|
[1] |
Seal Kit
|
|
| 3. |
F047850
|
[1] |
Plug
|
|
| 4. |
F008637
|
[1] |
RELIEF CARTRIDGE
|
|
| 4. |
F047851
|
[1] |
Spring
|
|
| 4. |
F008638
|
[1] |
Seal Kit
|
|
| 5. |
F021586
|
[1] |
Solenoid Valve
|
|
| 5. |
F021588
|
[1] |
Solenoid
|
|
| 5. |
F004578
|
[1] |
Connector
|
|
| 5. |
F021587
|
[1] |
Seal Kit
|
|
| 6. |
F018786
|
[1] |
THROTTLE SCREW
|
|
| 7. |
F018787
|
[1] |
THROTTLE SCREW
|
|
| 7. |
F052779
|
[1] |
THROTTLE SCREW
|
|
| 8. |
F021591
|
[1] |
THROTTLE SCREW
|
|
| 9. |
F003382
|
[2] |
Plug
|
|
| 10. |
F008447
|
[3] |
Screw
|
|
| 11. |
F011314
|
[6] |
Screw
|
|
| 12. |
F003285
|
[4] |
O-Ring
|
|
| 14. |
F005570
|
[2] |
Plug
|
|
