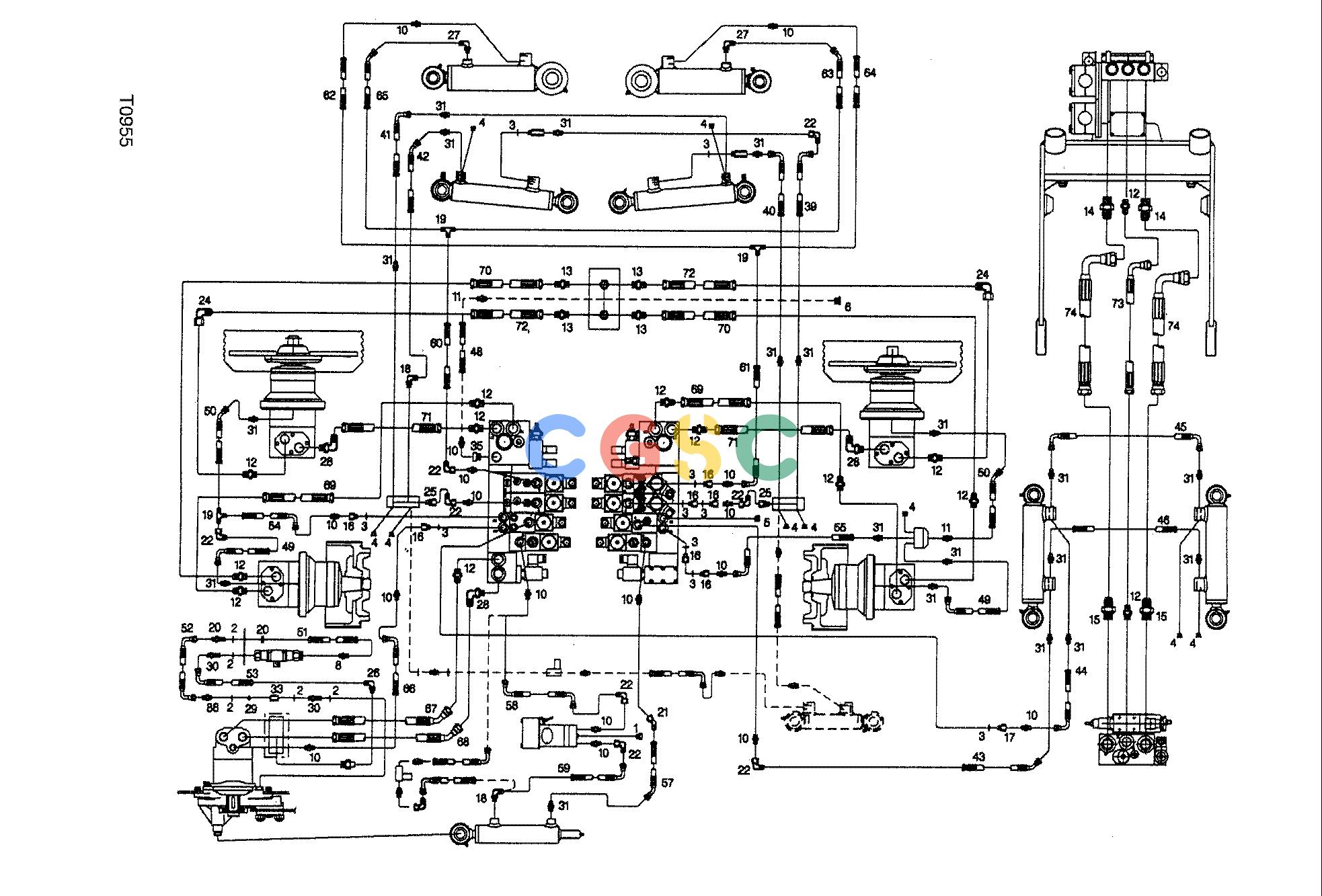

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F045006 11 56 T0955 [T0955]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F035104
|
[1] |
Plug
|
|
| 2. |
F005164
|
[6] |
SEAL RING
|
|
| 3. |
F005166
|
[10] |
SEAL RING
|
|
| 4. |
F003382
|
[8] |
Plug
|
|
| 5. |
F024820
|
[1] |
Plug
|
|
| 6. |
F005570
|
[1] |
Plug
|
|
| 8. |
F031896
|
[4] |
CONNECTION
|
|
| 9. |
F031898
|
[2] |
CONNECTION
|
|
| 10. |
F005055
|
[14] |
NIPPLE
|
|
| 11. |
F031909
|
[2] |
CONNECTION
|
|
| 12. |
F005063
|
[13] |
NIPPLE
|
|
| 13. |
F047919
|
[4] |
CONNECTION
|
|
| 14. |
F047920
|
[2] |
CONNECTION
|
|
| 15. |
F005095
|
[2] |
NIPPLE
|
|
| 16. |
F033375
|
[7] |
CONNECTION
|
|
| 17. |
F047921
|
[1] |
NIPPLE
|
|
| 18. |
F023012
|
[2] |
CONNECTION
|
|
| 19. |
F022422
|
[3] |
T-CONNECTION
|
|
| 20. |
F047922
|
[1] |
CONNECTION
|
|
| 21. |
F047923
|
[1] |
ELBOW CONNECTION
|
|
| 22. |
F033374
|
[8] |
ELBOW CONNECTION
|
|
| 24. |
F011482
|
[2] |
ELBOW NIPPLE
|
|
| 25. |
F023030
|
[2] |
CONNECTION
|
|
| 26. |
F031937
|
[1] |
CONNECTION
|
|
| 27. |
F031897
|
[4] |
CONNECTION
|
|
| 28. |
F023026
|
[3] |
CONNECTION
|
|
| 29. |
F008631
|
[1] |
Check Valve
|
|
| 30. |
F015375
|
[2] |
NIPPLE
|
|
| 31. |
F005057
|
[20] |
NIPPLE
|
|
| 33. |
F047931
|
[1] |
NIPPLE
|
|
| 34. |
F031989
|
[3] |
Plug
|
|
| 35. |
F031908
|
[2] |
CONNECTION
|
|
| 36. |
F031909
|
[1] |
CONNECTION
|
|
| 37. |
F047932
|
[1] |
Plug
|
|
| 39. |
F047933
|
[1] |
HOSE-ASSY
|
|
| 40. |
F047934
|
[1] |
HOSE-ASSY
|
|
| 41. |
F047935
|
[1] |
HOSE-ASSY
|
|
| 42. |
F047936
|
[1] |
HOSE-ASSY
|
|
| 43. |
F047937
|
[1] |
HOSE-ASSY
|
|
| 44. |
F047938
|
[1] |
HOSE-ASSY
|
|
| 45. |
F047939
|
[1] |
HOSE-ASSY
|
|
| 46. |
F047940
|
[1] |
HOSE-ASSY
|
|
| 48. |
F047941
|
[1] |
HOSE-ASSY
|
|
| 49. |
F047942
|
[2] |
HOSE-ASSY
|
|
| 50. |
F047936
|
[2] |
HOSE-ASSY
|
|
| 51. |
F047943
|
[1] |
HOSE-ASSY
|
|
| 52. |
F047944
|
[1] |
HOSE-ASSY
|
|
| 52. |
F052784
|
[1] |
HOSE-ASSY
|
|
| 53. |
F047945
|
[1] |
HOSE-ASSY
|
|
| 54. |
F047946
|
[1] |
HOSE-ASSY
|
|
| 55. |
F047947
|
[1] |
HOSE-ASSY
|
|
| 57. |
F047948
|
[1] |
HOSE-ASSY
|
|
| 58. |
F047949
|
[1] |
HOSE-ASSY
|
|
| 59. |
F047950
|
[1] |
HOSE-ASSY
|
|
| 60. |
F047951
|
[1] |
HOSE-ASSY
|
|
| 61. |
F047952
|
[1] |
HOSE-ASSY
|
|
| 62. |
F047953
|
[1] |
HOSE-ASSY
|
|
| 63. |
F047954
|
[1] |
HOSE-ASSY
|
|
| 64. |
F047953
|
[1] |
HOSE-ASSY
|
|
| 65. |
F047955
|
[1] |
HOSE-ASSY
|
|
| 66. |
F047956
|
[1] |
HOSE-ASSY
|
|
| 67. |
F047957
|
[1] |
HOSE-ASSY
|
|
| 68. |
F047958
|
[1] |
HOSE-ASSY
|
|
| 69. |
F047959
|
[2] |
HOSE-ASSY
|
|
| 70. |
F047960
|
[2] |
HOSE-ASSY
|
|
| 71. |
F047961
|
[2] |
HOSE-ASSY
|
|
| 72. |
F047962
|
[2] |
HOSE-ASSY
|
|
| 73. |
F047963
|
[1] |
HOSE-ASSY
|
|
| 74. |
F047964
|
[2] |
HOSE-ASSY
|
|
