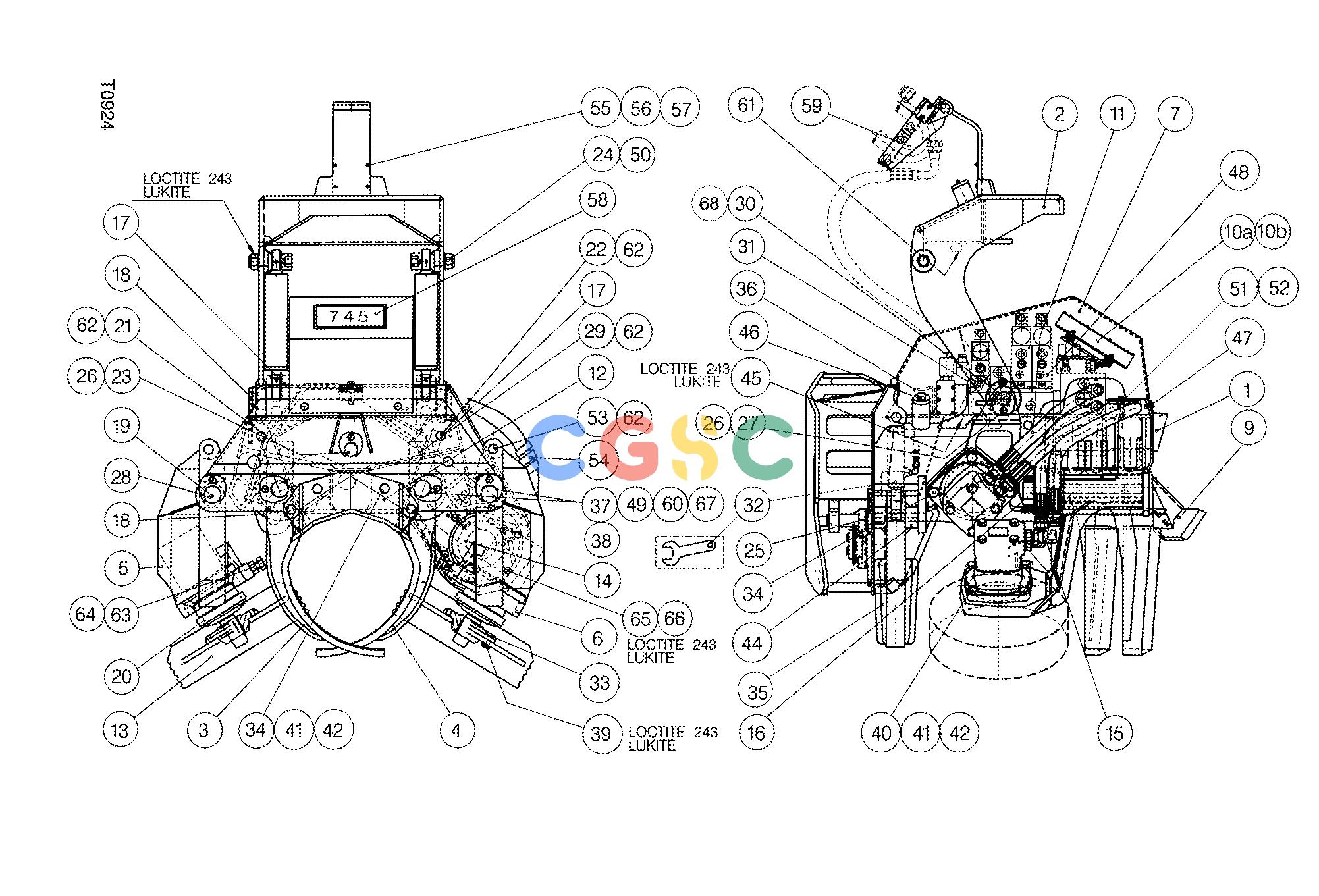

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE HARVESTER HEAD 745 F045006 11 2 T0924 [T0924]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
267 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047630
|
[1] |
HARVESTER UNIT
|
|
| 2. |
F047631
|
[1] |
Frame
|
|
| 3. |
F047632
|
[1] |
Blade
|
|
| 4. |
F047633
|
[1] |
Blade
|
|
| 5. |
F047634
|
[1] |
Frame
|
|
| 6. |
F047635
|
[1] |
Frame
|
|
| 7. |
F047636
|
[1] |
Cover
|
|
| 9. |
F047638
|
[1] |
Blade
|
|
| 10. |
F047639
|
[1] |
BLOCK
|
|
| 10. |
F047640
|
[1] |
ELECTRICAL SYSTEM
|
|
| 11. |
F047641
|
[1] |
HOSE AND NIPPLE KIT
|
|
| 11. |
F054547
|
|
HOSE AND NIPPLE KIT
|
|
| 12. |
F047642
|
[2] |
FEED ROLL
|
|
| |
F054543
|
[1] |
SPIKED ROLL
|
|
| |
F054544
|
[1] |
SPIKED ROLL
|
|
| 13. |
F047643
|
[2] |
Wheel
|
|
| |
F054541
|
[1] |
FEED ROLL
|
|
| |
F054542
|
[1] |
FEED ROLL
|
|
| 14. |
F047644
|
[1] |
Saw Unit
|
|
| 15. |
F047645
|
[1] |
Indicator
|
|
| 15. |
F054546
|
[1] |
Indicator
|
|
| 16. |
F047646
|
[2] |
Indicator
|
|
| 17. |
F047647
|
[9] |
Plate
|
|
| 18. |
F047648
|
[4] |
Plate
|
|
| 19. |
F047649
|
[4] |
Plate
|
|
| 20. |
F047650
|
[2] |
Ring
|
|
| 21. |
F047651
|
[1] |
PIVOT PIN
|
|
| 22. |
F047652
|
[1] |
PIVOT PIN
|
|
| 23. |
F047653
|
[1] |
Pin
|
|
| 24. |
F047654
|
[2] |
Pin
|
|
| 25. |
F047655
|
[1] |
PIVOT PIN
|
|
| 26. |
F047656
|
[8] |
LOCKING PLATE
|
|
| 27. |
F003531
|
[8] |
Screw
|
|
| 28. |
F047657
|
[4] |
PIVOT PIN
|
|
| 29. |
F047658
|
[5] |
Pin
|
|
| 30. |
F047659
|
[2] |
PIVOT PIN
|
|
| 31. |
F047660
|
[2] |
PIVOT PIN
|
|
| 32. |
F047661
|
[1] |
Oil Pump
|
|
| 32. |
F054545
|
[1] |
TOOLS
|
|
| 33. |
F047662
|
[4] |
Flange
|
|
| 34. |
F011154
|
[12] |
Screw
|
|
| 35. |
F047663
|
[1] |
DELIMBING KNIFE
|
|
| 36. |
F047663
|
[1] |
DELIMBING KNIFE
|
|
| 36. |
F047664
|
[1] |
Bracket
|
|
| 37. |
F003834
|
[4] |
Lock Nut
|
|
| 38. |
F003829
|
[4] |
Lock Washer
|
|
| 39. |
F047665
|
[24] |
Screw
|
|
| 40. |
F007784
|
[8] |
Screw
|
|
| 41. |
F047666
|
[12] |
Lock Nut
|
|
| 42. |
F047667
|
[12] |
Washer
|
|
| 43. |
F003523
|
[9] |
Screw
|
|
| 44. |
F047668
|
[1] |
Bushing
|
|
| 45. |
F007569
|
[4] |
Screw
|
|
| 46. |
F047669
|
[3] |
Plug
|
|
| 47. |
F040644
|
[4] |
Screw
|
|
| 48. |
F047670
|
[1] |
HYDRAULIC
|
|
| 48. |
F054548
|
[1] |
HYDRAULIC
|
|
| 49. |
F046322
|
[8] |
BEARING BUSHING
|
|
| 49. |
F047671
|
[8] |
BEARING BUSHING
|
|
| 50. |
F024735
|
[2] |
Lock Nut
|
|
| 51. |
F047672
|
[1] |
FASTENING PLATE
|
|
| 52. |
F003494
|
[1] |
Screw
|
|
| 53. |
F047673
|
[2] |
PIVOT PIN
|
|
| 54. |
F047674
|
[6] |
PROTECTION SPIRAL
|
|
| 55. |
F024728
|
[1] |
Sign
|
|
| 56. |
F026257
|
[4] |
Screw
|
|
| 57. |
F003584
|
[4] |
Lock Nut
|
|
| 58. |
F047675
|
[1] |
STRIPES
|
|
| 59. |
F047676
|
[1] |
HOSE HOLDER
|
|
| 59. |
F054745
|
[1] |
HOSE HOLDER
|
|
| 60. |
F047677
|
[8] |
Bearing
|
|
| 61. |
F024820
|
[2] |
Plug
|
|
| 62. |
F003325
|
[9] |
Lock Washer
|
|
| 63. |
F008728
|
[2] |
Screw
|
|
| 64. |
F003570
|
[2] |
Nut
|
|
| 65. |
F003415
|
[6] |
Screw
|
|
| 66. |
F002920
|
[6] |
Washer
|
|
| 67. |
F054549
|
[2] |
Spring Washer
|
|
| 68. |
F003820
|
[2] |
SPHERICAL BEARING
|
|
