神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-008) - PISTON Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
939 次

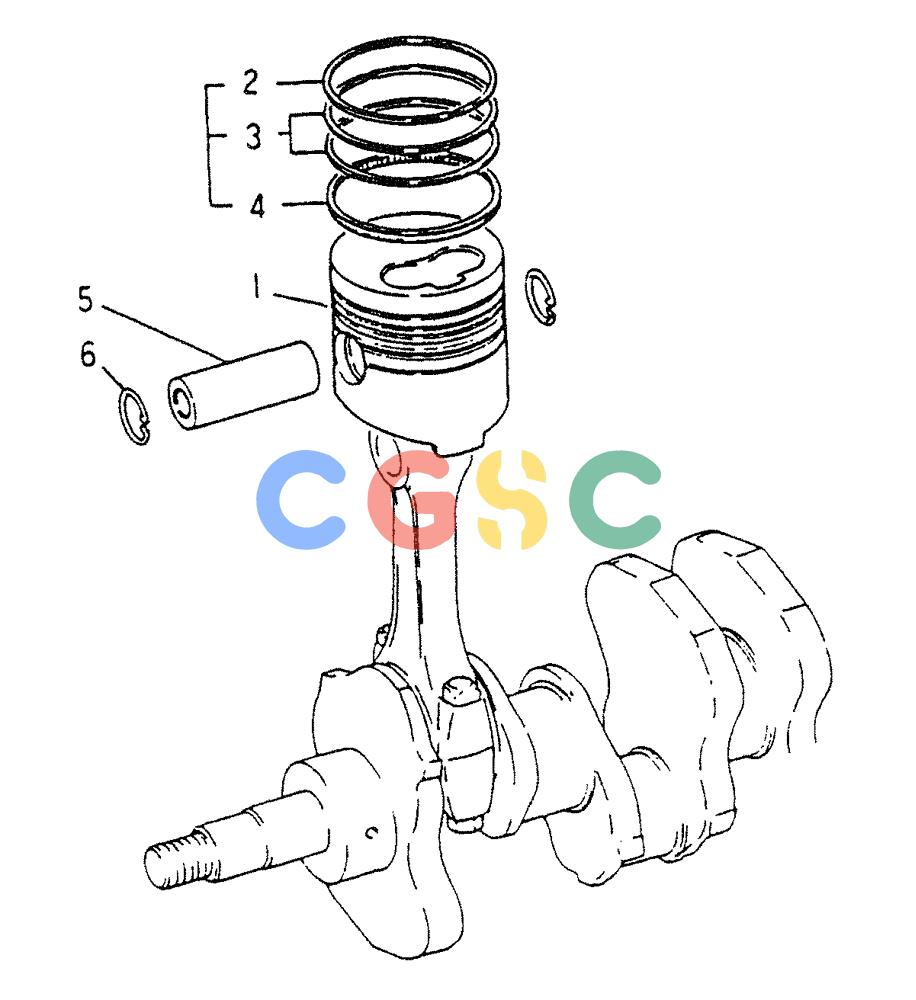

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME002044 | [6] | PISTON | KOB |
| 1. | VAME002045 | [1] | PISTON OS 0.25 | |
| 1. | VAME002046 | [1] | PISTON 0.50 PISTON OS 0.50 | PISTON 0.50 PISTON OS 0.50 |
| 1. | VAME002047 | [1] | PISTON | KOBPISTON OS 0.75 |
| 2-4. | VAME999046 | [1] | SET OF RINGS | KOBPISTON, ONE MODEL STD |
| 2-4. | VAME999044 | [1] | SET OF RINGS | KOBPISTON,ONE MODEL OS |
| 2-4. | VAME999045 | [1] | RINGSET 050 PISTON, ONE MODEL OS | RINGSET 050 PISTON, ONE MODEL OS |
| 2-4. | VAME999047 | [1] | PISTON RING SET, ONE MODEL OS 1.00 | |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONRING,COMPRESSION NO.1 (3161701100) |
| 3. | NSS | [12] | NOT SOLD SEPARAT | CONRING,COMPRESSION NO.2 (3161702100) |
| 4. | NSS | [6] | NOT SOLD SEPARAT | CONRING, OIL (ME002077) |
| 5. | VAME002049 | [6] | PISTON PIN | KOBPIN, PISTON |
| 6. | VA3161708502 | [12] | SNAP RING | KOBRING, SNAP |
