神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-009) - CONNECTING ROD AND BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1008 次

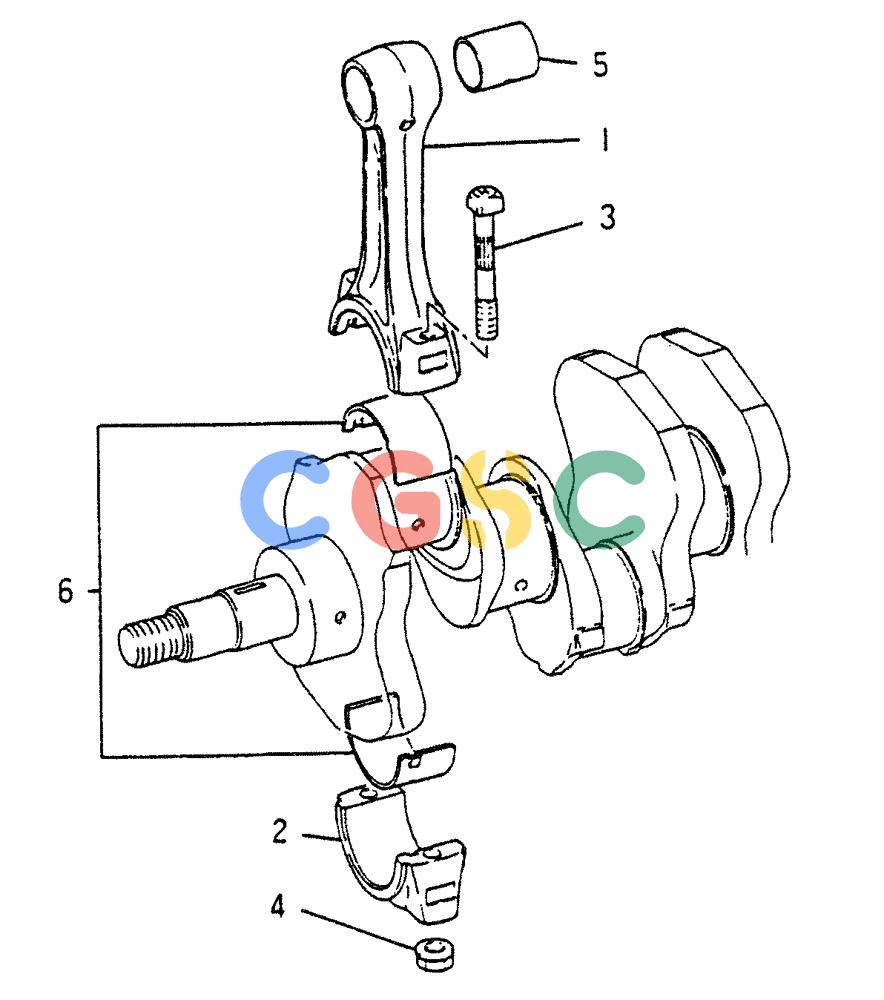

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME002108 | [6] | LINK CONROD | KOBASSY |
| 1. | NSS | [6] | NOT SOLD SEPARAT | CONROD,CONNECTING |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONCAP,CONN-ROD |
| 3. | VAME002087 | [12] | SCREW | KOBBOLT |
| 4. | VA3131900401 | [12] | NUT | KOBNUT |
| 5. | VA3161900700 | [6] | BUSHING | KOBBUSHING,CONN-ROD |
| 6. | VAME002023 | [1] | CONN. ROD SHELL | KOBBEARING SET,ONE MODEL STD |
| 6. | VAME002024 | [1] | SET OF STD MAIN BRGS | KOBCONN-ROD BEARING SET,ONE MODEL US |
| 6. | VAME002025 | [1] | SET OF THRUST WASHER | KOBCONN-ROD BEARING SET,ONE MODEL US |
| 6. | VAME002026 | [1] | SET OF THRUST WASHER | KOBCONN-ROD BEARING SET,ONE MODEL US |
