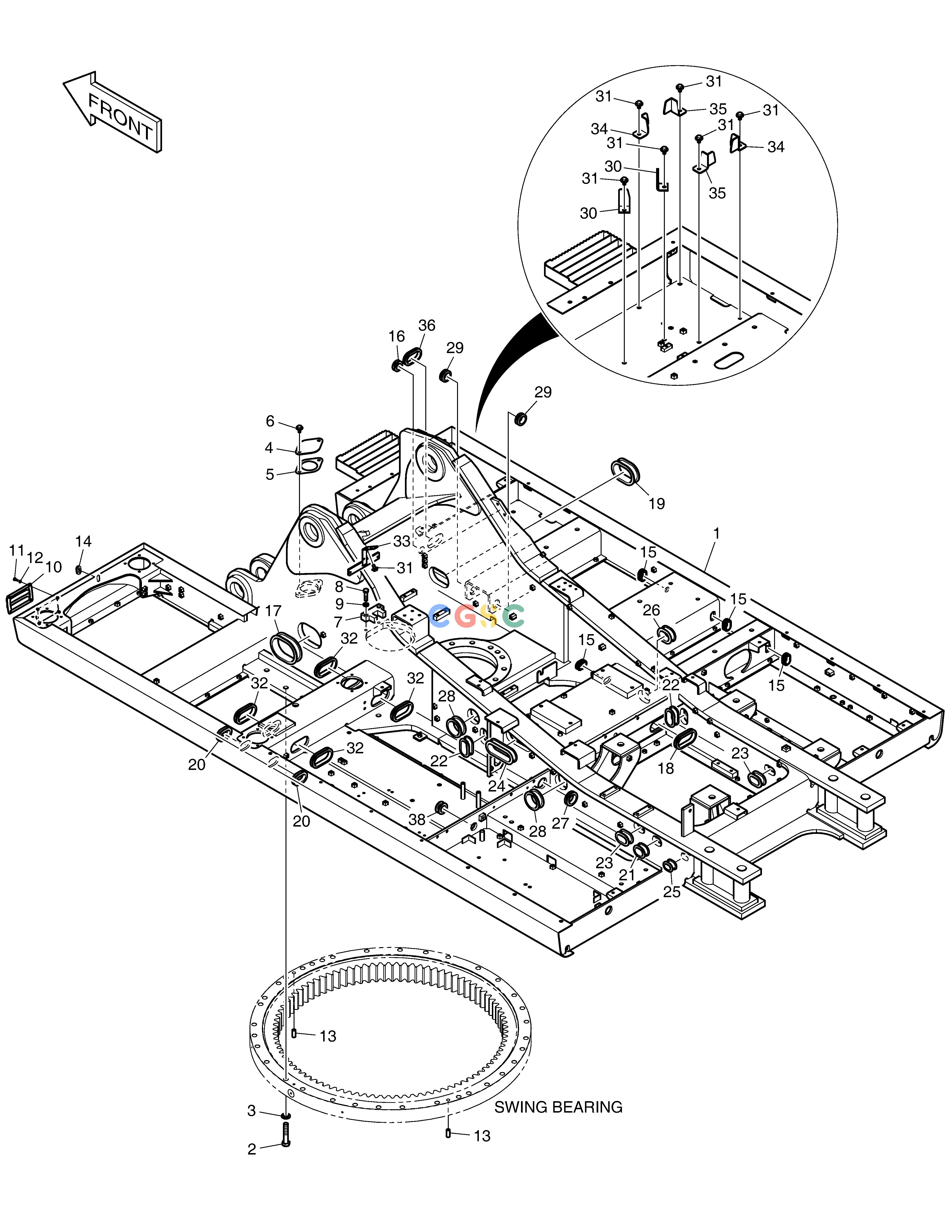

斗山零件查询MAIN FRAME DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
128 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160620-00394
|
[-] |
|
|
| 1. |
160620-00395E
|
[1] |
|
|
| 1. |
160620-00395G
|
[1] |
|
|
| 10. |
110921-02771
|
[1] |
GUARD,LAMP
|
|
| 11. |
2120-2166D5
|
[4] |
BOLT
|
|
| 12. |
2114-1898D14
|
[4] |
WASHER
|
|
| 13. |
2123-1107D7
|
[2] |
PIN,KNOCK
|
|
| 14. |
160-00081
|
[1] |
CAP;RUBBER
|
|
| 15. |
DS7601097
|
[4] |
|
|
| 16. |
2160-1004D44
|
[1] |
BUSHING,RUBBER
|
|
| 17. |
2160-1201D9
|
[1] |
BUSHING;RUBBER
|
|
| 18. |
DS7601027
|
[1] |
BUSHING,RUBBER
|
|
| 19. |
DS7601032
|
[1] |
BUSHING;RUBBER
|
|
| 2. |
S0775866
|
[35] |
BOLT
|
|
| 20. |
DS7601096
|
[2] |
|
|
| 21. |
DS7601052
|
[1] |
|
|
| 22. |
DS7601056
|
[2] |
RUBBER
|
|
| 23. |
DS7601064
|
[2] |
BUSHING;RUBBER
|
|
| 24. |
DS7601090
|
[1] |
|
|
| 25. |
DS7601091
|
[1] |
|
|
| 26. |
DS7601092
|
[1] |
|
|
| 27. |
DS7603055
|
[1] |
|
|
| 28. |
DS7603042
|
[2] |
|
|
| 29. |
DS7603059
|
[2] |
BUSHING;RUBBER
|
|
| 3. |
2114-1831A
|
[35] |
. WASHER
|
|
| 30. |
195-02623B
|
[2] |
BRACKET
|
|
| 31. |
DS0025015
|
[8] |
BOLT
|
|
| 32. |
DS7601103
|
[4] |
|
|
| 33. |
110452-00133A
|
[1] |
|
|
| 34. |
110406-01922
|
[2] |
|
|
| 35. |
110406-01921
|
[2] |
|
|
| 36. |
DS7601031
|
[1] |
RUBBER;BUSHING
|
|
| 38. |
DS7603051
|
[1] |
|
|
| 4. |
621-02938B
|
[1] |
COVER
|
|
| 5. |
180-00463
|
[1] |
PACKING
|
|
| 6. |
DS0025023
|
[2] |
BOLT
|
|
| 7. |
K1002107A
|
[1] |
PLATE
|
|
| 8. |
S0565466
|
[2] |
BOLT
|
|
| 9. |
S5102903
|
[2] |
WASHER
|
|
