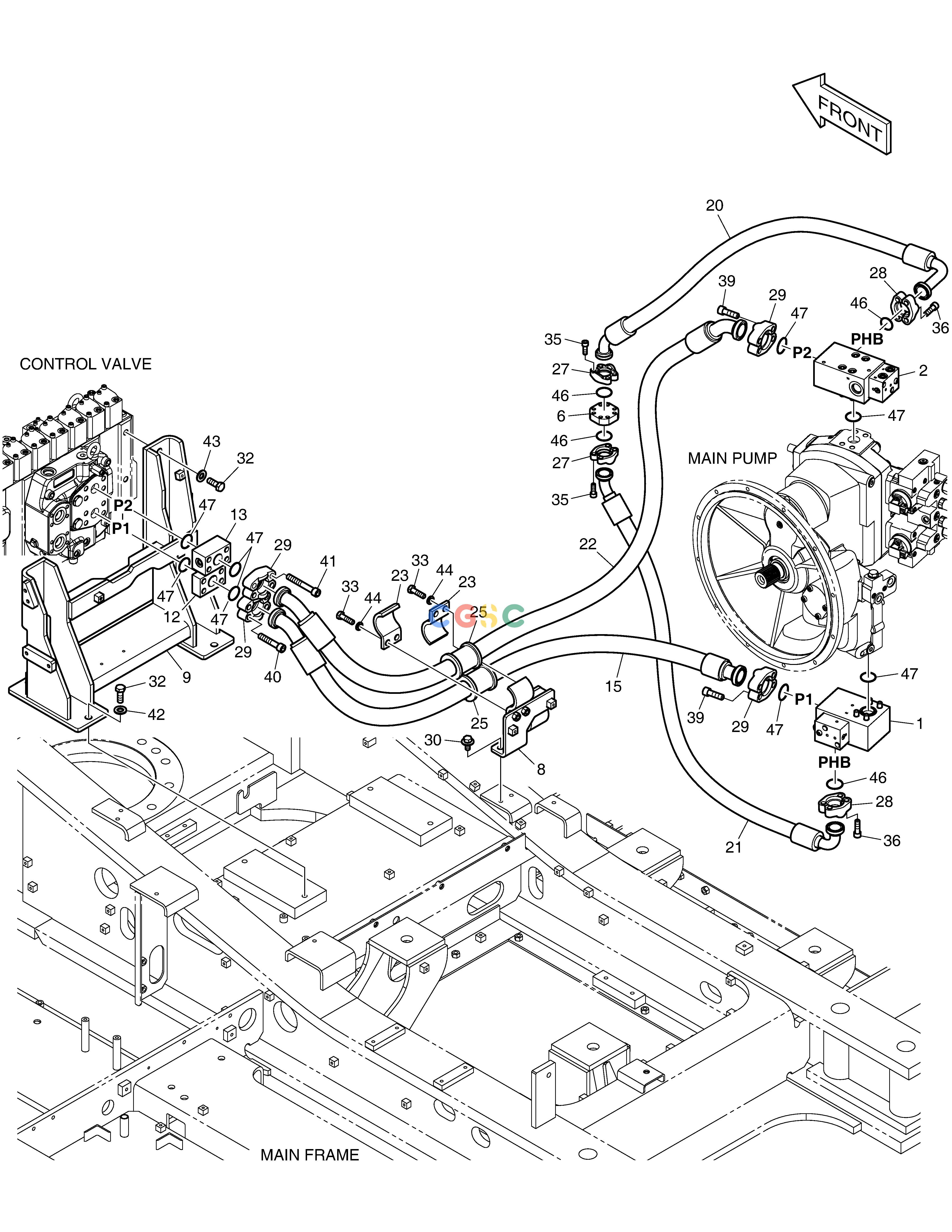

斗山零件查询MAIN PIPING(1) - PUMP DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07898
|
[-] |
|
|
| 1. |
410126-00021A
|
[1] |
|
|
| 12. |
100201-00068C
|
[1] |
|
|
| 13. |
100201-00913
|
[1] |
|
|
| 15. |
DS2039264
|
[1] |
|
|
| 2. |
410126-00023A
|
[1] |
|
|
| 20. |
DS2043259
|
[1] |
|
|
| 21. |
DS2043260
|
[1] |
|
|
| 22. |
DS2048041
|
[1] |
|
|
| 23. |
K1004001
|
[2] |
CLAMP;PIPE
|
|
| 25. |
161-00280
|
[2] |
RUBBER
|
|
| 27. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 28. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 29. |
2181-9086
|
[8] |
FLANGE;SPLIT
|
|
| 30. |
DS0025018
|
[2] |
BOLT
|
|
| 32. |
S0521466
|
[7] |
BOLT
|
|
| 33. |
S0560666
|
[4] |
BOLT
|
|
| 35. |
S2212266
|
[8] |
BOLT
|
|
| 36. |
S2215466
|
[8] |
BOLT
|
|
| 39. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 40. |
S2219166
|
[4] |
BOLT;SOCKET M14X2.0X75
|
|
| 41. |
S2219666
|
[4] |
|
|
| 42. |
2114-1816A
|
[4] |
WASHER
|
|
| 43. |
4114-1791A
|
[3] |
WASHER;HARD
|
|
| 44. |
S5102703
|
[4] |
WASHER
|
|
| 46. |
2180-1026D19
|
[4] |
O-RING
|
|
| 47. |
2180-1026D23
|
[8] |
O-RING
|
|
| 6. |
100201-00016A
|
[1] |
|
|
| 8. |
110420-00176A
|
[1] |
|
|
| 9. |
110425-00076H
|
[1] |
|
|
