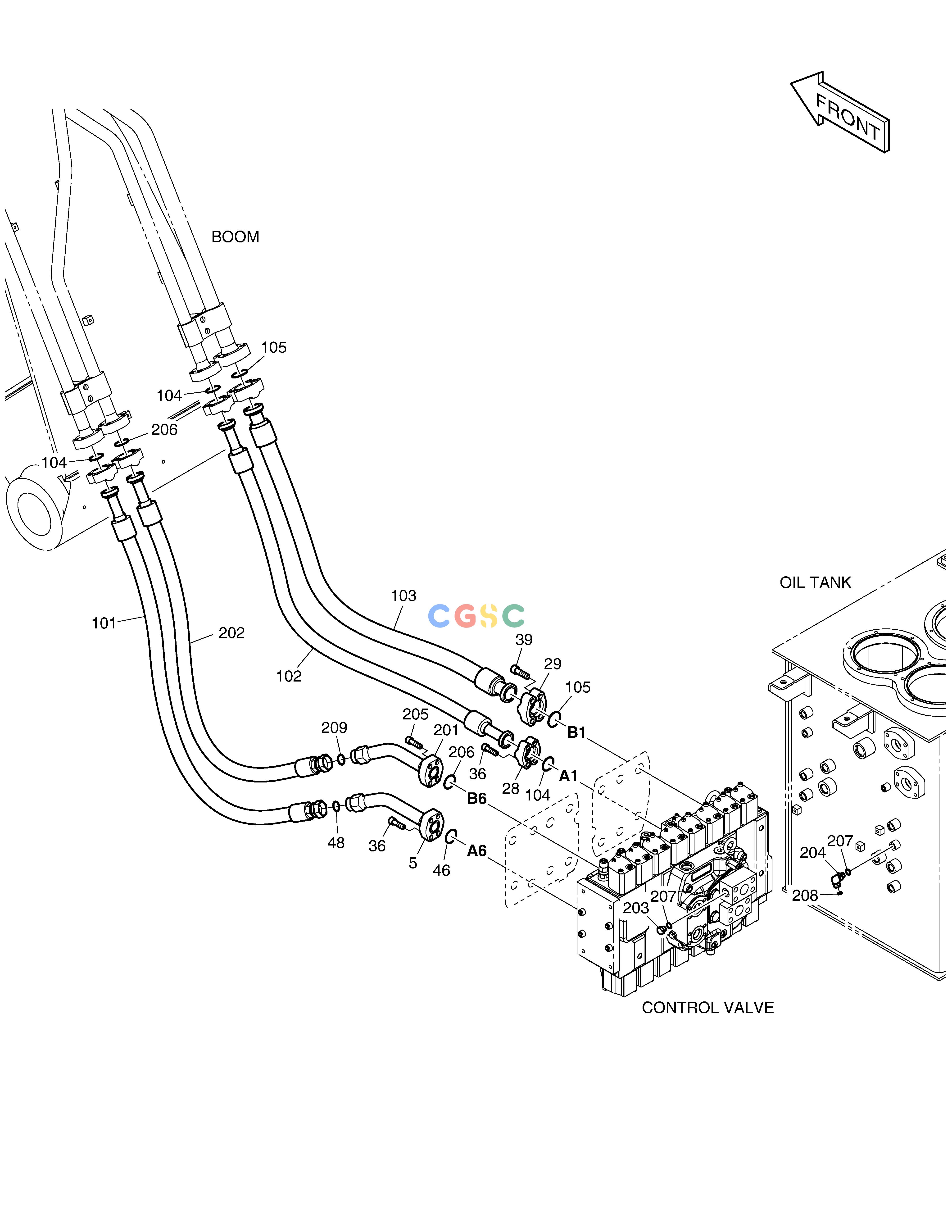

斗山零件查询MAIN PIPING(3) - ARM & BUCKET DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
912 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07898
|
[-] |
|
|
| 101. |
DS2016168
|
[1] |
|
|
| 102. |
DS2038339
|
[1] |
|
|
| 103. |
DS2038340
|
[1] |
|
|
| 104. |
2180-1026D19
|
[3] |
O-RING
|
|
| 105. |
2180-1026D23
|
[2] |
O-RING
|
|
| 201. |
420207-01905
|
[1] |
|
|
| 202. |
DS2016167
|
[1] |
|
|
| 203. |
2181-1950D1
|
[1] |
PLUG
|
|
| 204. |
DS2304009
|
[1] |
ELBOW
|
|
| 205. |
S2215466
|
[4] |
BOLT
|
|
| 206. |
2180-1026D19
|
[2] |
O-RING
|
|
| 207. |
S8000111
|
[2] |
O-RING
|
|
| 208. |
S8030041
|
[1] |
O-RING
|
|
| 209. |
S8030161
|
[1] |
O-RING
|
|
| 28. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 29. |
2181-9086
|
[2] |
FLANGE;SPLIT
|
|
| 36. |
S2215466
|
[8] |
BOLT
|
|
| 39. |
S2218566
|
[4] |
BOLT;SOCKET
|
|
| 46. |
2180-1026D19
|
[1] |
O-RING
|
|
| 48. |
S8030161
|
[1] |
O-RING
|
|
| 5. |
420207-00647A
|
[1] |
|
|
