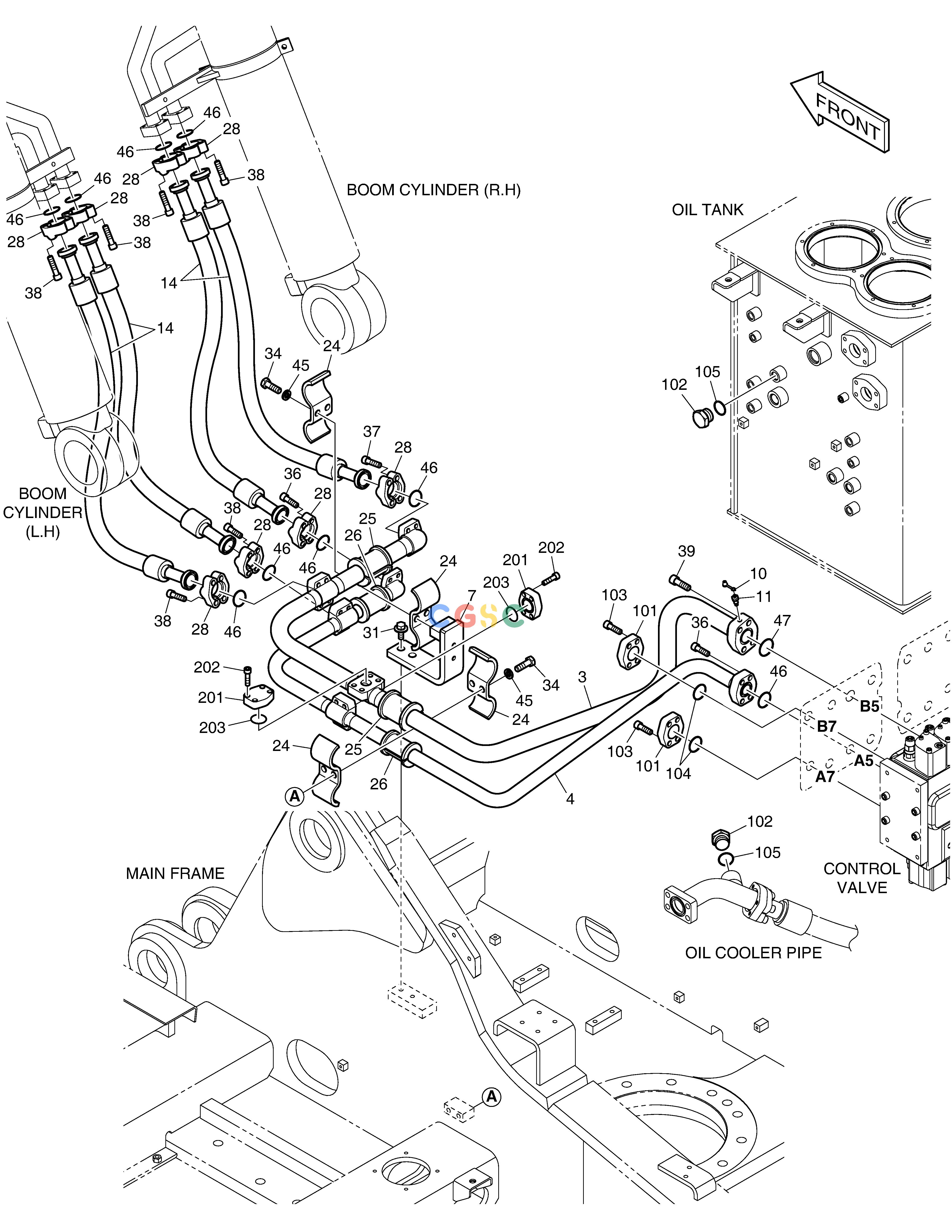

斗山零件查询MAIN PIPING(2) - BOOM DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07898
|
[-] |
|
|
| 10. |
160-00020
|
[1] |
CAP
|
|
| 101. |
2181-2157D3
|
[2] |
FLANGE
|
|
| 102. |
2181-1950D9
|
[2] |
PLUG
|
|
| 103. |
S2215466
|
[8] |
BOLT
|
|
| 104. |
2180-1026D19
|
[2] |
O-RING
|
|
| 105. |
S8000291
|
[2] |
O-RING
|
|
| 11. |
120705-00105
|
[1] |
|
|
| 14. |
DS2038308
|
[4] |
|
|
| 201. |
2181-2157D3
|
[2] |
FLANGE
|
|
| 202. |
S2215666
|
[8] |
BOLT;SOCKET
|
|
| 203. |
2180-1026D19
|
[2] |
O-RING
|
|
| 24. |
K1004059
|
[4] |
CLAMP
|
|
| 25. |
161-00280
|
[2] |
RUBBER
|
|
| 26. |
161-00281
|
[2] |
RUBBER
|
|
| 28. |
2181-9081
|
[16] |
FLANGE;SPLIT
|
|
| 3. |
420207-00645B
|
[1] |
|
|
| 31. |
DS0025020
|
[2] |
BOLT
|
|
| 34. |
S0562866
|
[4] |
BOLT M14X2.0X45
|
|
| 36. |
S2215466
|
[8] |
BOLT
|
|
| 37. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 38. |
S2215666
|
[24] |
BOLT;SOCKET
|
|
| 39. |
S2218566
|
[4] |
BOLT;SOCKET
|
|
| 4. |
420207-00646C
|
[1] |
|
|
| 45. |
S5102803
|
[4] |
WASHER
|
|
| 46. |
2180-1026D19
|
[9] |
O-RING
|
|
| 47. |
2180-1026D23
|
[1] |
O-RING
|
|
| 7. |
110406-00472A
|
[1] |
|
|
