神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-016) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
522 次

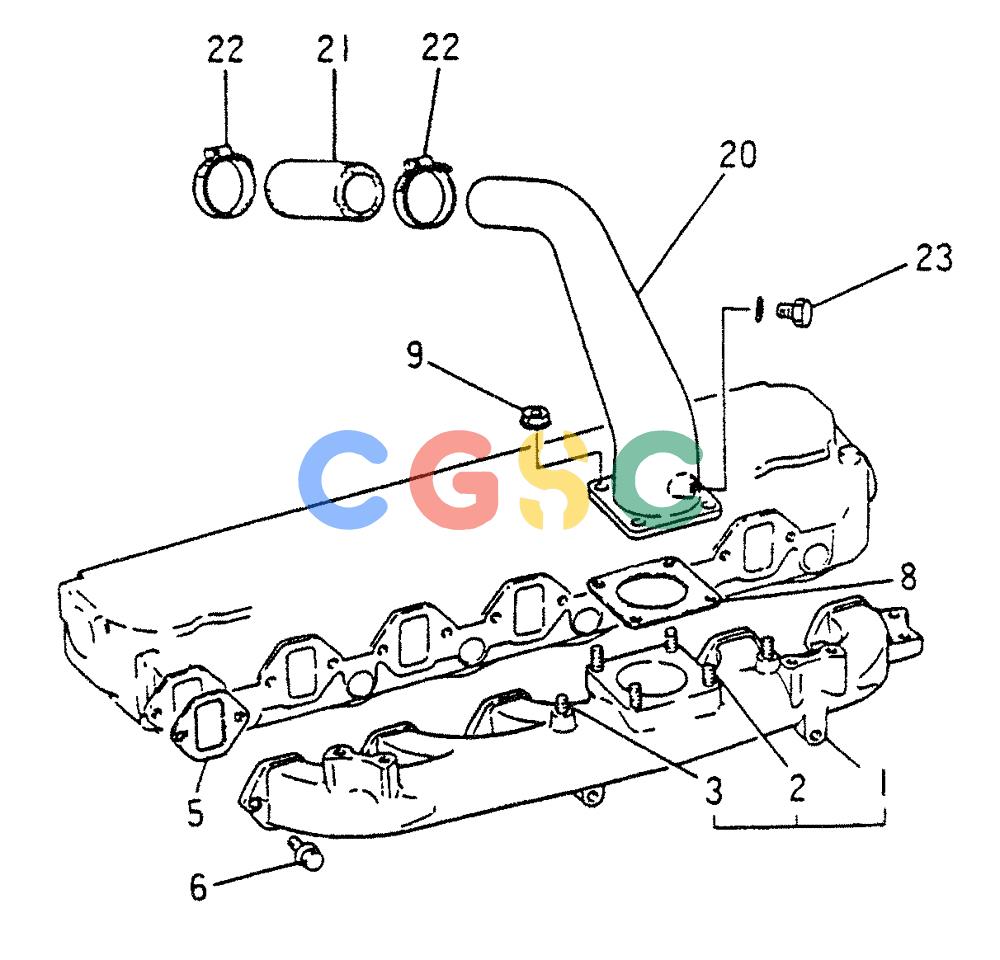

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VA3173021200 | [1] | INLET MANIFOLD ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD, INLET |
| 2. | VAMF403805 | [4] | STUD 8X20 | |
| 3. | VAMF403803 | [2] | STUD 8X16 | |
| 5. | VA3133000409 | [6] | GASKET | KOBGASKET, INLET MANIF Superseded by part number: VAME001634 |
| 6. | VAMF140225 | [12] | BOLT | KOBBOLT, FLANGE 8X20 |
| 8. | VAME021976 | [1] | GASKET | KOBGASKET |
| 9. | VAMF434104 | [4] | NUT | KOBNUT, FLANGE |
| 20. | VAME008414 | [1] | PIPE, AIR INLET | |
| 21. | VAME019485 | [1] | HOSE | KOBRUBBER L=65 |
| 22. | VAMH021326 | [2] | CLAMP | KOBCLAMP, BAND |
| 23. | VAMF665002 | [1] | PLUG | KOBPLUG 10 Superseded by part number: 133271A1 |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
