神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-020) - TURBO-CHARGER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
557 次

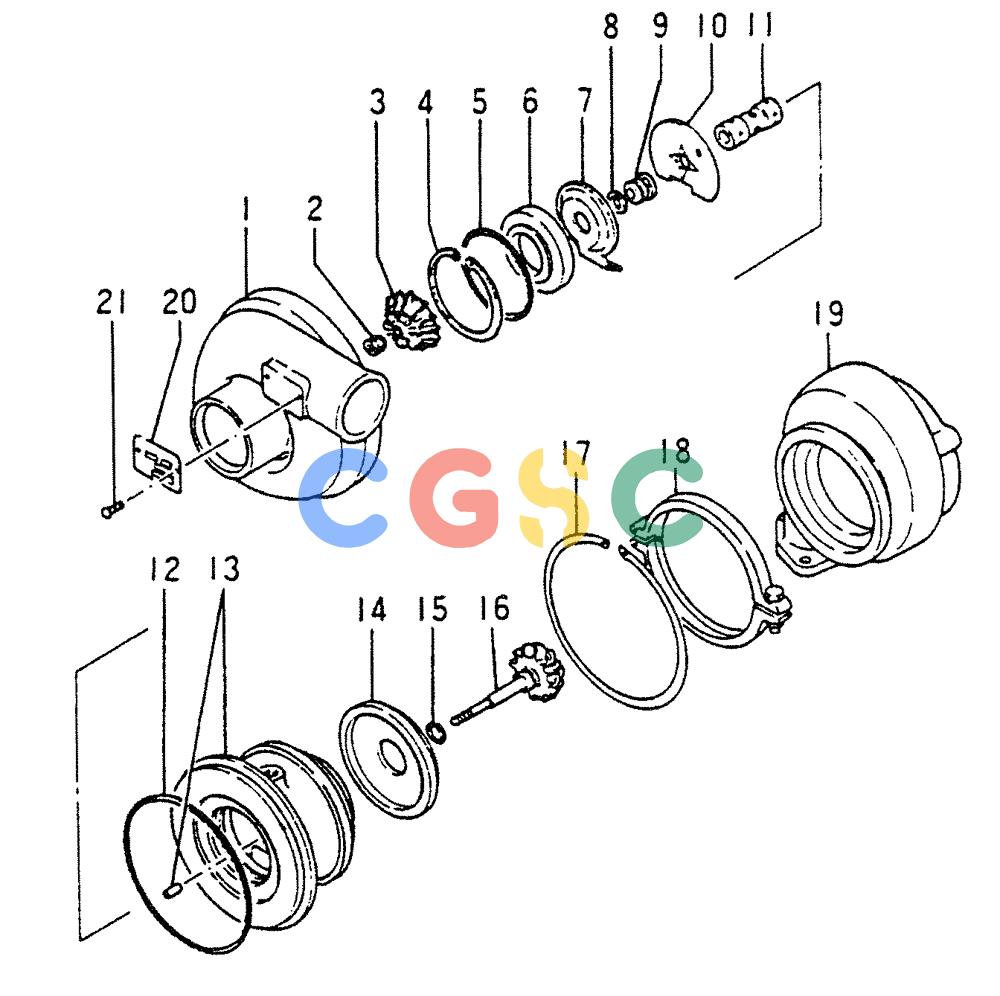

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-21. | VAME008413 | [1] | TURBO-CHARGER ASSY TC05-10A (4916800360) | TURBO-CHARGER ASSY TC05-10A (4916800360) |
| 1. | 4916850300 | [1] | COVER, COMPR 10A | |
| 2-16. | 4916809200 | [1] | CARTRIDGE ASSY | |
| 2. | 4916842200 | [1] | NUT, LOCK (ME719621) | |
| 3. | 4916840300 | [1] | WHEEL, COMPR 10A | |
| 4. | 4916823200 | [1] | RING, SNAP (ME719585) | |
| 5. | 4916822100 | [1] | O-RING (ME719590) | |
| 6. | 4916822501 | [1] | INSERT (ME719583) | |
| 9. | 4916842100 | [1] | SLEEVE, THRUST (ME719620) | |
| 10. | 4916821501 | [1] | BEARING, THRUST (ME719581) | |
| 11. | 4916821103 | [1] | BEARING (ME719580) | |
| 12. | 4916856100 | [1] | O-RING (ME719627) | |
| 13. | 4916825700 | [1] | BEARING HOUSING & PIN ASSY | |
| 14. | 4916819100 | [1] | PLATE, TURBINE BACK (ME719573) | |
| 15. | 4916823600 | [1] | RING, PISTON (ME719591) | |
| 16. | 4916830700 | [1] | SHAFT & TURBINE WHEEL ASSY | |
| 17. | 4916823100 | [1] | RING, SNAP (ME719584) | |
| 18. | 4916814001 | [1] | COUPLING ASSY (ME719570) | |
| 19. | 4916811400 | [1] | HOUSING, TURBINE | |
| 20. | 4916855100 | [1] | PLATE, NAME | |
| 21. | VAMS466101 | [2] | RIVET, SCREW 2X4.8 (ME719761) | |
