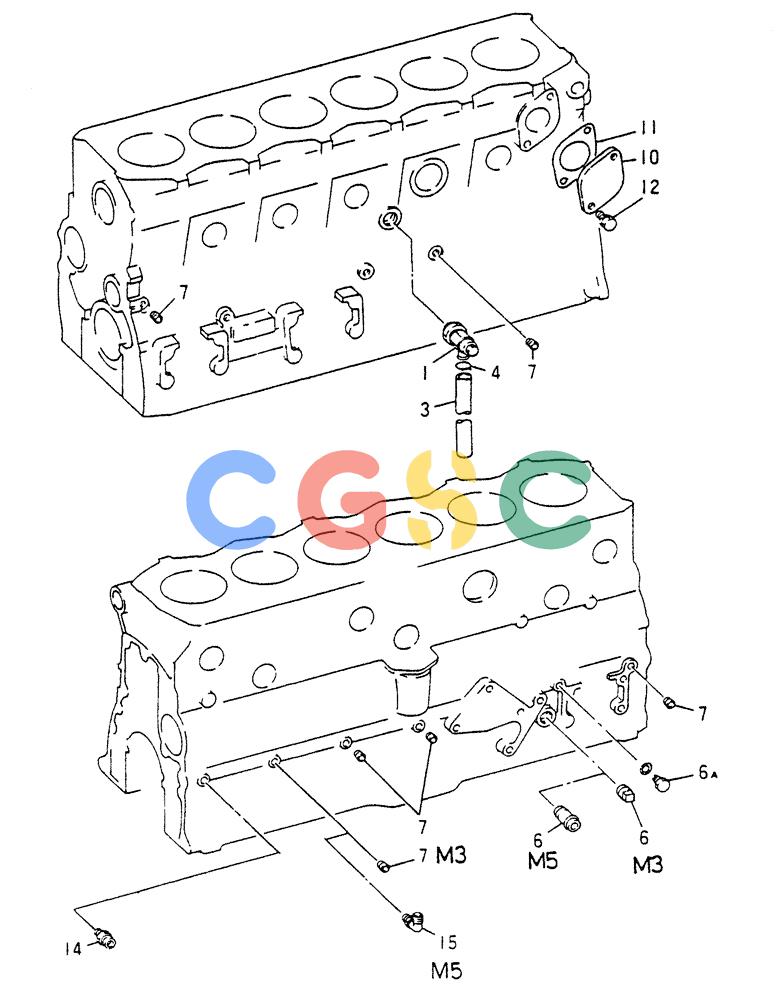

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-021) - ENGINE ATTACHING PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
378 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3170705201 | [1] | COCK | KOB Superseded by part number: 133149A1 |
| 3. | VA3110704800 | [1] | PIPE DRAIN PIPE, DRAIN L=300 | PIPE DRAIN PIPE, DRAIN L=300 |
| 4. | VAMS666040 | [1] | CLAMP | KOBCLAMP, HOSE 16 |
| 6. | VAMS666222 | [1] | PLUG | SMPLUG PT3/8 (FOR M3 ONLY) |
| . . | VA3164509801 | [1] | JOINT | KOBJOINT, FOR TURBOCHARGER (FOR M5 ONLY) |
| 6A. | VAME031087 | [1] | SET OF SCREWS | KOBPLUG M10 |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 7. | VAMH037237 | [6] | PLUG | KOBPLUG, TAPER PT1/8 (FOR M3 ONLY) |
| 10. | VAME020287 | [1] | COVER, COOLER FACE | |
| 11. | VAME029376 | [1] | GASKET | KOB |
| 12. | VAMF300843 | [2] | SCREW | KOBBOLT, W/WSR 10X25 Superseded by part number: 133250A1 |
| 14. | VAMH037132 | [1] | CONNECTOR | |
| 15. | VA3123353700 | [1] | ELBOW | KOBELBOW, FOR TURBOCHARGER (FOR M5 ONLY) |
