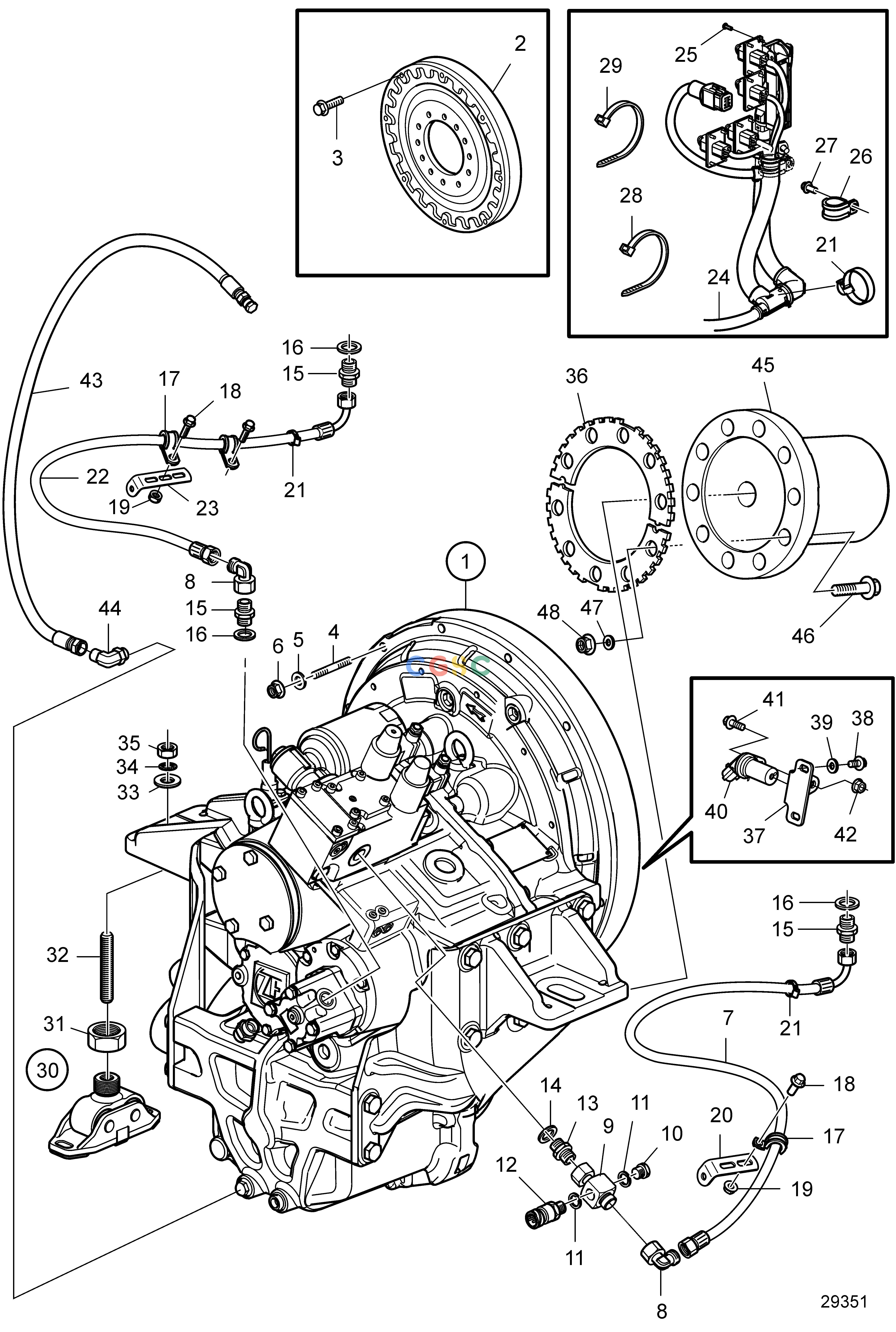

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHTransmissionsConnecting Components for Reverse Gear ZF335IV-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 2.458:1
|
| 2. |
|
|
|
|
| 3. |
981744
|
[12] |
Hex. socket screw
|
|
| 4. |
953082
|
[10] |
Stud
|
|
| 5. |
941908
|
[10] |
Spring washer
|
|
| 6. |
990941
|
[10] |
Flange nut
|
|
| 7. |
21108002
|
[1] |
Oil hose
|
L=1500mm
|
| 8. |
984804
|
[2] |
Elbow nipple
|
|
| 9. |
21430896
|
[1] |
Connecting block
|
|
| 10. |
960632
|
[1] |
Plug
|
|
| 11. |
20883435
|
[2] |
Sealing ring
|
|
| 12. |
874313
|
[1] |
Sensor
|
|
| 13. |
990883
|
[1] |
Nipple
|
|
| 14. |
976932
|
[1] |
Gasket
|
|
| 15. |
943986
|
[3] |
Nipple
|
|
| 16. |
976932
|
[3] |
Gasket
|
|
| 17. |
945081
|
[3] |
Clamp
|
|
| 18. |
984734
|
[3] |
Flange screw
|
|
| 19. |
990940
|
[3] |
Flange nut
|
|
| 20. |
965558
|
[1] |
Bracket
|
|
| 21. |
948616
|
[2] |
Cable tie
|
|
| 22. |
21386719
|
[1] |
Oil hose
|
L=1600mm
|
| 23. |
965562
|
[1] |
Bracket
|
|
| 24. |
22187882
|
[1] |
Wiring harness
|
|
| 25. |
969514
|
[16] |
Six point socket scr
|
|
| 26. |
947827
|
[2] |
Clamp
|
|
| 27. |
984733
|
[2] |
Flange screw
|
|
| 28. |
948211
|
[4] |
Cable tie
|
|
| 29. |
980464
|
[1] |
Cable tie
|
|
| 30. |
22596041
|
[2] |
Rubber cushion
|
Hard, 60 shore
|
| 31. |
|
|
|
|
| 32. |
3817323
|
[2] |
Adjusting screw
|
|
| 33. |
991994
|
[2] |
Washer
|
|
| 34. |
990697
|
[2] |
Lock washer
|
|
| 35. |
955786
|
[2] |
Hexagon nut
|
|
| 36. |
3841413
|
[2] |
Sprocket wheel
|
|
| 37. |
21320296
|
[1] |
Bracket
|
|
| 38. |
984724
|
[2] |
Flange screw
|
|
| 39. |
949607
|
[2] |
Spring washer
|
|
| 40. |
21426987
|
[1] |
Speed monitor
|
|
| 41. |
984725
|
[1] |
Flange screw
|
|
| 42. |
990949
|
[1] |
Flange lock nut
|
|
| 43. |
3837463
|
[1] |
Hose
|
For oil drain
|
| 44. |
11090362
|
[1] |
Elbow nipple
|
|
| 45. |
864087
|
[1] |
Clutch flange
|
|
| 46. |
60111944
|
[10] |
Hexagon screw
|
|
| 47. |
60112795
|
[10] |
Spring washer
|
|
| 48. |
60113705
|
[10] |
Lock nut
|
|
