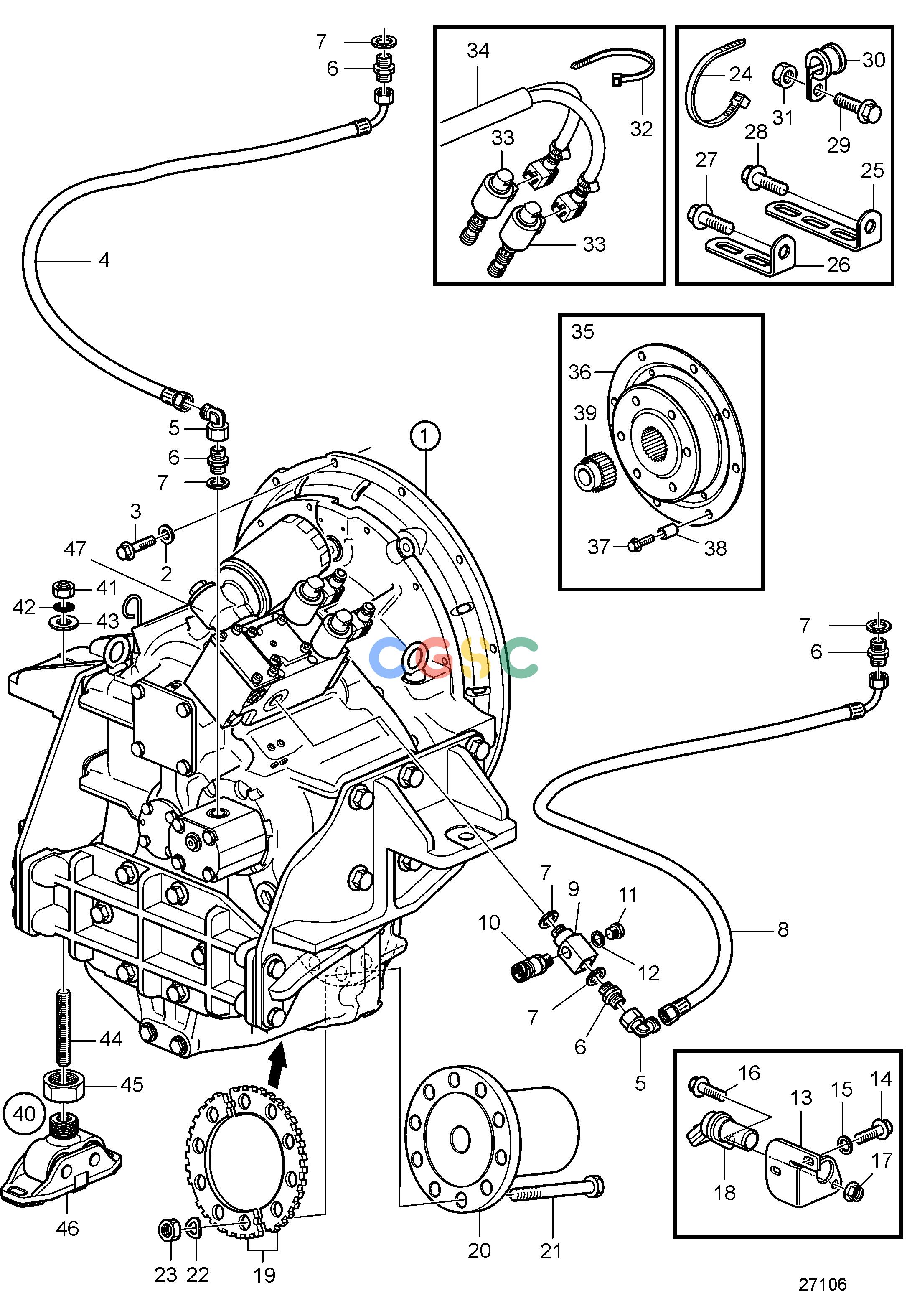

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHTransmissionsConnecting Components for ZF325IV-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 2.03:1
|
| 2. |
941908
|
[10] |
Spring washer
|
|
| 3. |
984755
|
[10] |
Flange screw
|
|
| 4. |
21322361
|
[1] |
Oil hose
|
|
| 5. |
946369
|
[2] |
Elbow nipple
|
|
| 6. |
943986
|
[4] |
Nipple
|
|
| 7. |
976932
|
[5] |
Gasket
|
|
| 8. |
21386719
|
[1] |
Oil hose
|
|
| 9. |
3828349
|
[1] |
X-nipple
|
|
| 10. |
874313
|
[1] |
Sensor, pressure/temp
|
|
| 11. |
960632
|
[1] |
Plug
|
|
| 12. |
976931
|
[1] |
Gasket
|
|
| 13. |
3841424
|
[1] |
Bracket
|
|
| 14. |
967949
|
[1] |
Flange screw
|
|
| 15. |
949607
|
[1] |
Spring washer
|
|
| 16. |
984725
|
[1] |
Flange screw
|
|
| 17. |
990949
|
[1] |
Flange lock nut
|
|
| 18. |
20513343
|
[1] |
Sensor
|
|
| 19. |
3841413
|
[2] |
Sprocket wheel
|
|
| 20. |
864087
|
[1] |
Clutch flange
|
|
| 21. |
980253
|
[10] |
Hexagon screw
|
|
| 22. |
941913
|
[10] |
Spring washer
|
|
| 23. |
943674
|
[10] |
Lock nut
|
|
| 24. |
1075407
|
[1] |
Cable tie
|
|
| 25. |
965562
|
[1] |
Bracket
|
|
| 26. |
965558
|
[1] |
Bracket
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
984734
|
[3] |
Flange screw
|
|
| 30. |
945081
|
[3] |
Clamp
|
|
| 31. |
990940
|
[3] |
Flange nut
|
|
| 32. |
948211
|
[1] |
Cable tie
|
|
| 33. |
3831157
|
[2] |
Solenoid
|
|
| 34. |
40005751
|
[1] |
Wiring harness
|
|
| 35. |
21532612
|
[1] |
Flexible coupling
|
|
| 36. |
21532585
|
[1] |
Flexible coupling
|
|
| 37. |
965226
|
[8] |
Flange screw
|
|
| 38. |
849513
|
[8] |
Spacer sleeve
|
|
| 39. |
21581531
|
[1] |
Hub
|
|
| 40. |
3843493
|
[2] |
Rubber cushion kit
|
|
| 41. |
990973
|
[1] |
Hexagon nut
|
|
| 42. |
847766
|
[1] |
Lock washer
|
|
| 43. |
120224
|
[1] |
Washer
|
|
| 44. |
3839410
|
[1] |
Adjusting screw
|
|
| 45. |
3839409
|
[1] |
Hexagon nut
|
|
| 46. |
|
|
|
|
| 47. |
21588215
|
[1] |
Control valve
|
26 bar
|
