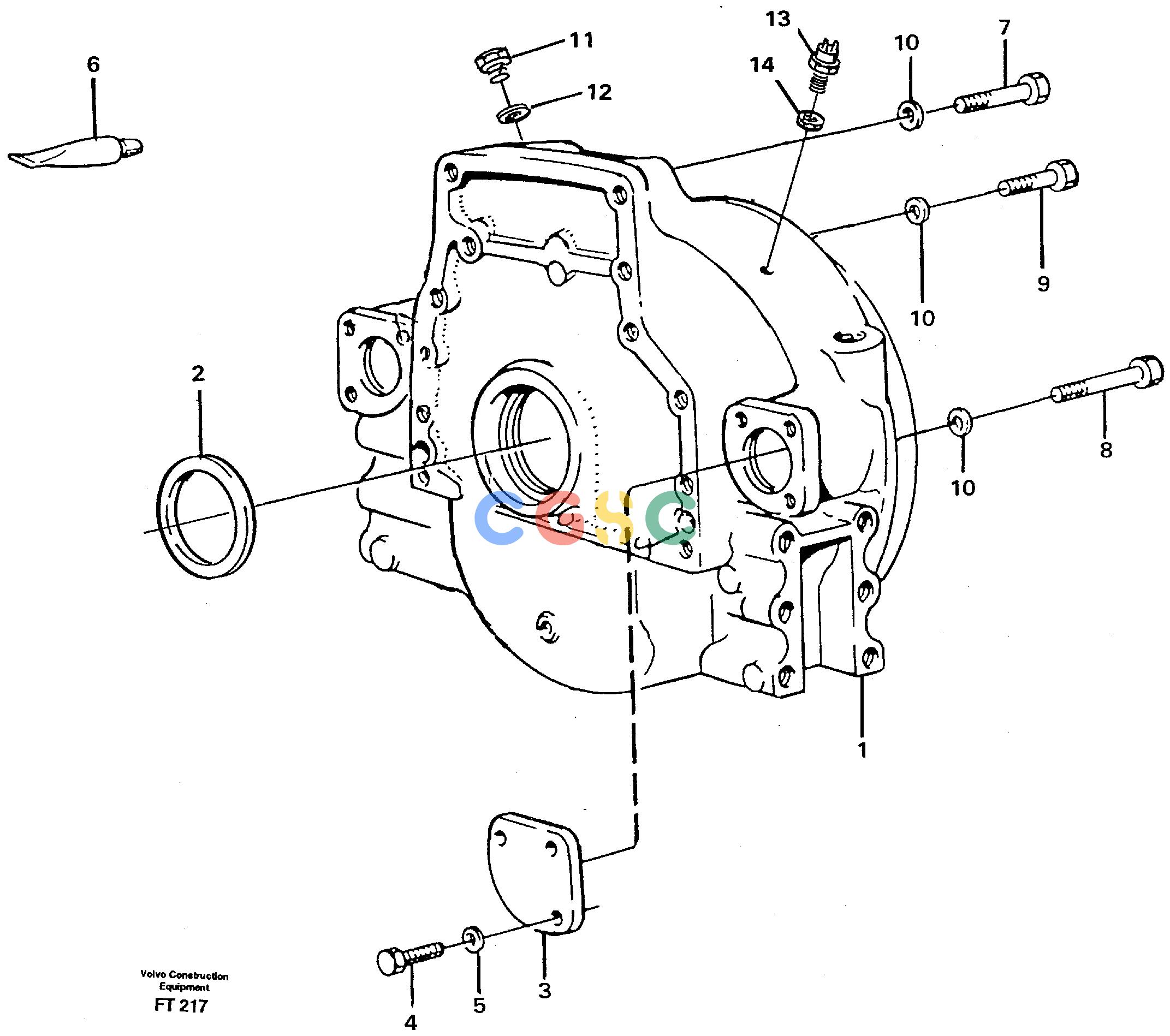

沃尔沃零件查询EC340 Flywheel housingSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
134 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11701057
|
[1] |
Flywheel housing
|
|
| 2. |
VOE3825164
|
[1] |
Sealing ring
|
|
| 3. |
VOE423081
|
[1] |
Seal flange
|
|
| 4. |
VOE13940114
|
[3] |
Screw
|
|
| 5. |
VOE13942336
|
[3] |
Spring washer
|
|
| 6. |
VOE11713514
|
[REQ] |
Sealant
|
|
| 7. |
VOE955582
|
[2] |
Hexagon screw
|
|
| 8. |
VOE955587
|
[2] |
Hexagon screw
|
|
| 9. |
VOE955580
|
[8] |
Hexagon screw
|
|
| 10. |
VOE955899
|
[12] |
Plain washer
|
|
| 11. |
VOE180761
|
[1] |
Plug
|
|
| 12. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 13. |
VOE11039533
|
[1] |
Induction sensor
|
B5
|
| 14. |
VOE940152
|
[1] |
Hexagon nut
|
|
