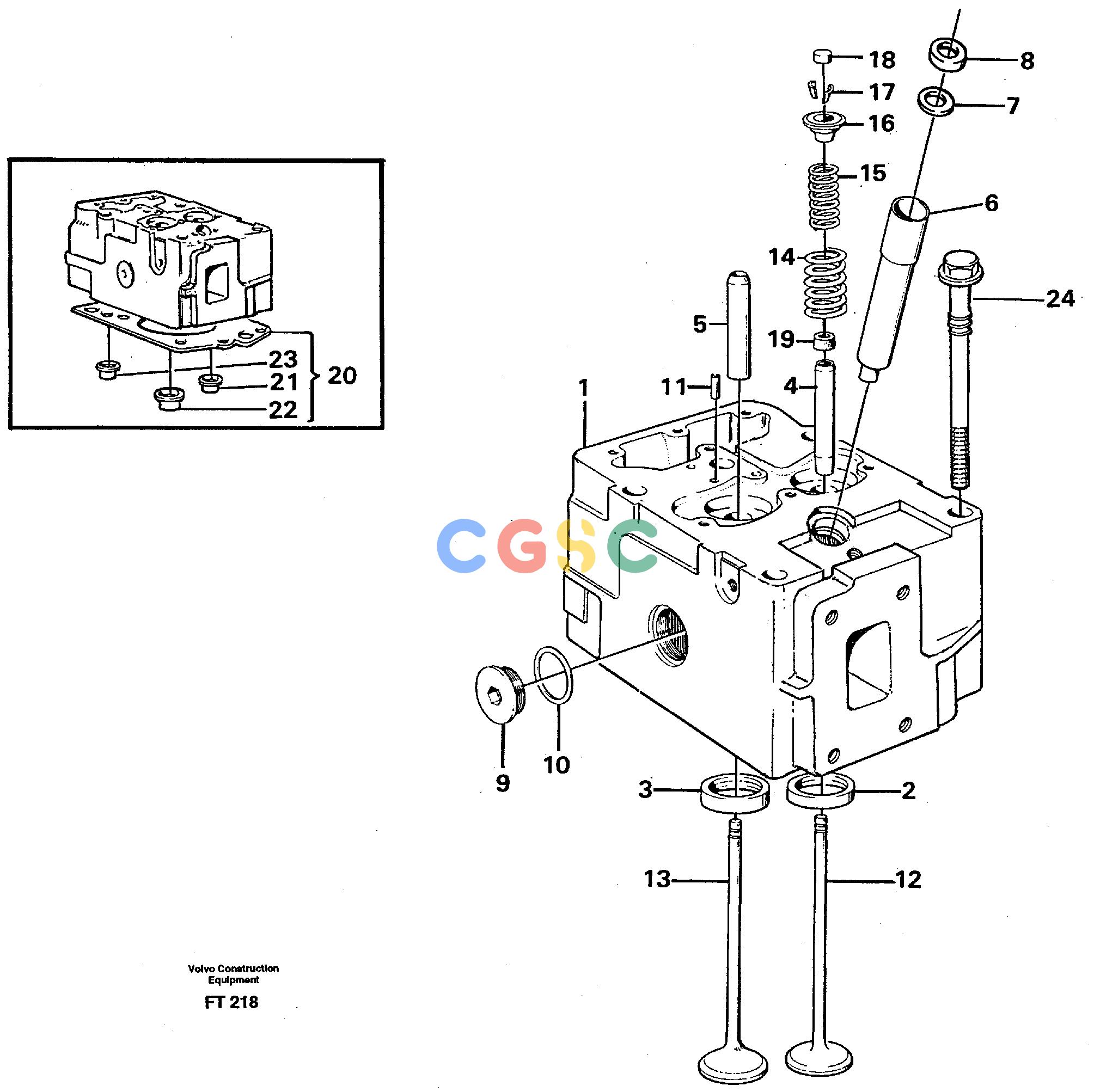

沃尔沃零件查询EC340 Cylinder headSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
115 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE8194452
|
[6] |
Cylinder head
|
|
| 2. |
VOE467474
|
[6] |
Valve seat
|
STD D
|
| |
VOE467590
|
[6] |
Valve seat
|
0,2 O SZ
|
| 3. |
VOE1545886
|
[6] |
Valve seat
|
STD D, (11987041)
|
| |
VOE1545885
|
[6] |
Valve seat
|
0,2 O SZ
|
| 4. |
VOE11129092
|
[6] |
Valve guide
|
|
| 5. |
VOE11129092
|
[6] |
Valve guide
|
|
| |
VOE270946
|
[6] |
Repair kit
|
|
| 6. |
VOE479163
|
[6] |
Sleeve
|
|
| 7. |
VOE466420
|
[6] |
Ring
|
|
| 8. |
VOE466405
|
[6] |
Sealing ring
|
|
| 9. |
VOE467365
|
[12] |
Plug
|
|
| 10. |
VOE469327
|
[12] |
Gasket
|
|
| 11. |
VOE14025455
|
[12] |
Cylinder Pin
|
|
| 12. |
VOE479204
|
[6] |
Inlet valve
|
|
| 13. |
VOE467855
|
[6] |
Exhaust valve
|
|
| 14. |
VOE467334
|
[12] |
Valve spring
|
|
| 15. |
VOE467335
|
[12] |
Valve spring
|
|
| 16. |
VOE467506
|
[12] |
Washer
|
|
| 17. |
VOE468305
|
[24] |
Valve sleeve
|
|
| 18. |
VOE478074
|
[12] |
Valve cap
|
|
| 19. |
VOE417135
|
[12] |
Protecting ring
|
|
| 20. |
VOE270789
|
[6] |
Gasket kit
|
|
| 21. |
VOE422413
|
[6] |
Sealing ring
|
D = 11
|
| 22. |
VOE422414
|
[12] |
Sealing ring
|
D = 32
|
| 23. |
VOE422415
|
[12] |
Sealing ring
|
D = 18
|
| 24. |
VOE422086
|
[24] |
Screw
|
|
| 25. |
|
|
None
|
|
