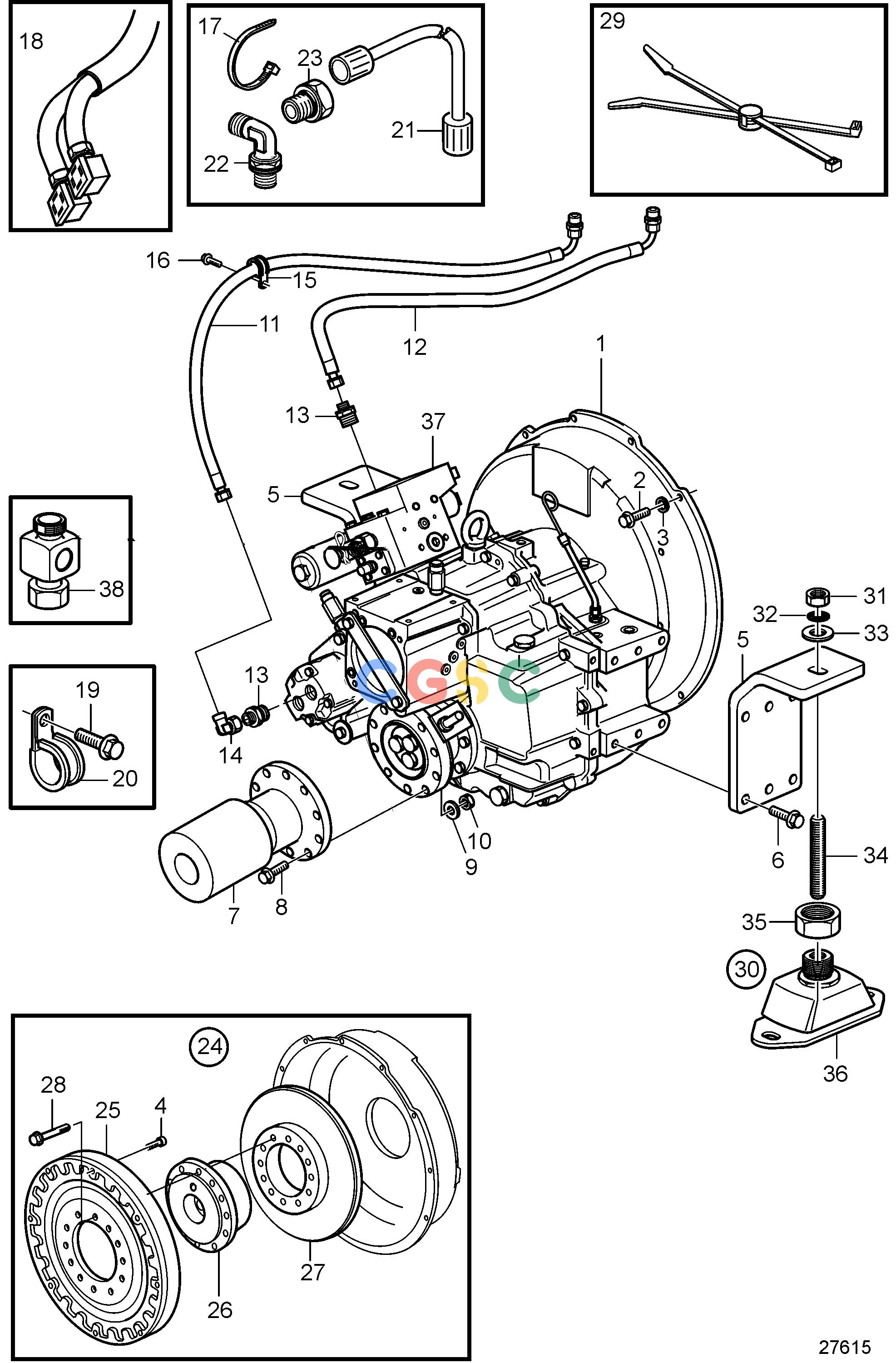

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHTransmissionsConnecting Components Reverse Gear MGX-5065-AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
965185
|
[10] |
Flange screw
|
|
| 3. |
941908
|
[10] |
Spring washer
|
|
| 4. |
981744
|
[12] |
Hex. socket screw
|
|
| 5. |
21391960
|
[2] |
Engine anchorage
|
|
| 6. |
968435
|
[12] |
Flange screw
|
|
| 7. |
21108357
|
[1] |
Companion flange
|
|
| 8. |
974007
|
[10] |
Flange screw
|
|
| 9. |
941912
|
[10] |
Spring washer
|
|
| 10. |
946363
|
[10] |
Lock nut
|
|
| 11. |
21386719
|
[1] |
Oil hose
|
L=620mm
|
| 12. |
21322361
|
[1] |
Oil hose
|
L=440mm
|
| 13. |
994328
|
[2] |
Nipple
|
|
| 14. |
946369
|
[1] |
Elbow nipple
|
|
| 15. |
945081
|
[2] |
Clamp
|
|
| 16. |
946173
|
[2] |
Flange screw
|
|
| 17. |
948211
|
[1] |
Cable tie
|
|
| 18. |
21159075
|
[1] |
Wiring harness
|
|
| 19. |
946471
|
[1] |
Flange screw
|
For rpm cable
|
| 20. |
949746
|
[1] |
Clamp
|
For rpm cable
|
| 21. |
3837463
|
[1] |
Hose
|
|
| 22. |
11090362
|
[1] |
Elbow nipple
|
|
| 23. |
994303
|
[1] |
Reduction nipple
|
|
| 24. |
21609861
|
[1] |
Flexible coupling
|
|
| 25. |
21575444
|
[1] |
Flexible coupling
|
|
| 26. |
21575446
|
[1] |
Hub
|
|
| 27. |
21588209
|
[1] |
Adapter
|
|
| 28. |
974008
|
[12] |
Flange screw
|
|
| 29. |
20885496
|
[2] |
Retainer
|
|
| 30. |
21593939
|
[2] |
Rubber cushion kit
|
|
| 31. |
955786
|
[1] |
Hexagon nut
|
|
| 32. |
847766
|
[1] |
Lock washer
|
|
| 33. |
120224
|
[1] |
Washer
|
|
| 34. |
3839410
|
[1] |
Adjusting screw
|
|
| 35. |
3839409
|
[1] |
Hexagon nut
|
|
| 36. |
21586050
|
[1] |
Rubber cushion
|
|
| 37. |
21650001
|
[1] |
Control unit
|
|
| 38. |
21430896
|
[1] |
Connecting block
|
|
