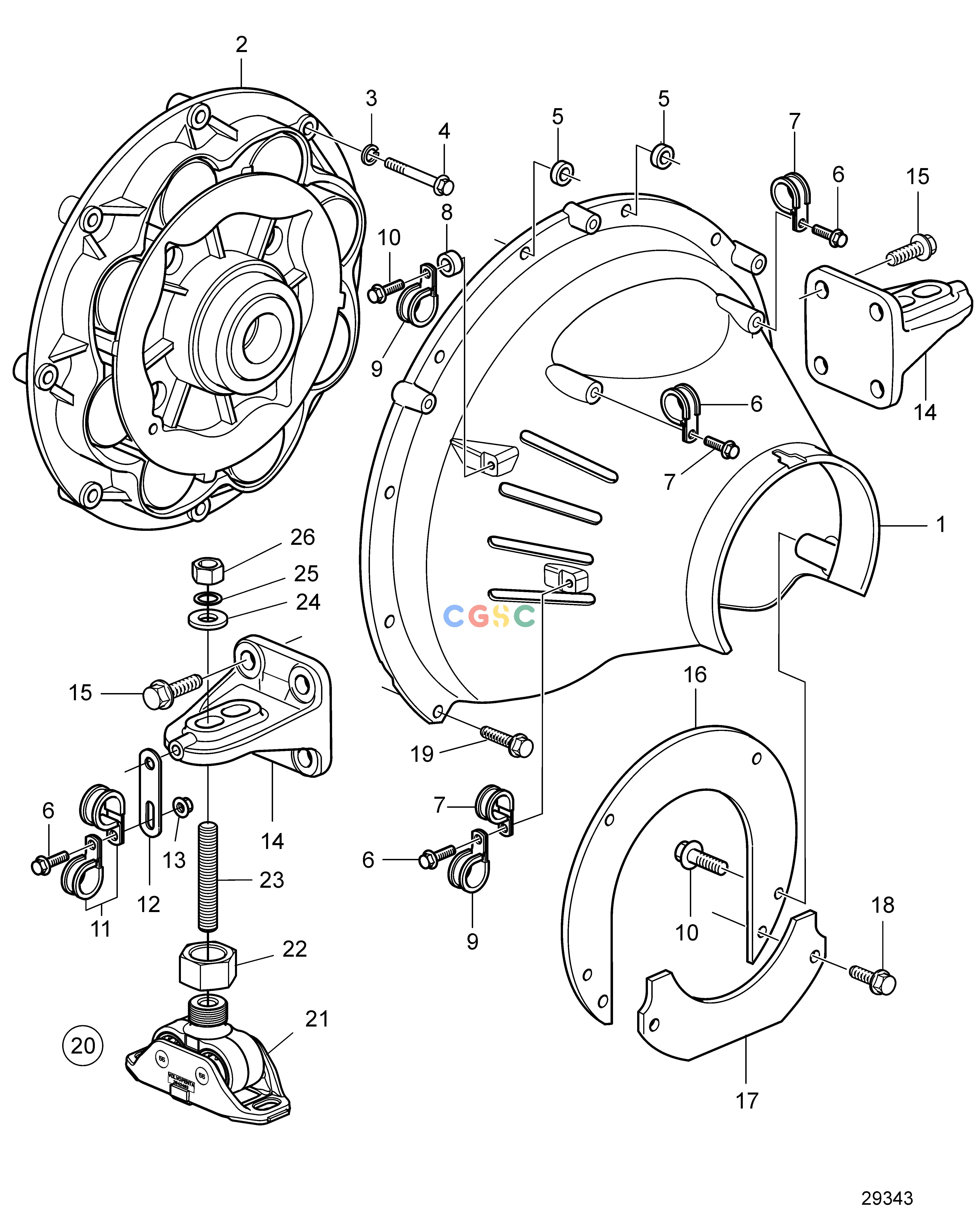

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHTransmissionsConnecting Components IPS, Flexible Coupling, Protecting CasingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21308282
|
[1] |
Protecting casing
|
|
| 2. |
22220710
|
[1] |
Flexible coupling
|
SN-2013579938, Replaced by 22183980
|
| 2. |
22183980
|
[1] |
Flexible coupling
|
SN2013579939-
|
| 3. |
18634
|
[8] |
Washer
|
|
| 4. |
948670
|
[8] |
Hex. socket screw
|
|
| 5. |
860699
|
[2] |
Spacer sleeve
|
|
| 6. |
984733
|
[5] |
Flange screw
|
|
| 7. |
949747
|
[3] |
Clamp
|
|
| 8. |
843075
|
[2] |
Spacer sleeve
|
|
| 9. |
1545432
|
[2] |
Attaching clamp
|
|
| 10. |
984735
|
[5] |
Flange screw
|
|
| 11. |
945081
|
[2] |
Clamp
|
|
| 12. |
965537
|
[1] |
Bracket
|
|
| 13. |
990940
|
[1] |
Flange nut
|
|
| 14. |
21460251
|
[2] |
Engine anchorage
|
|
| 15. |
968435
|
[8] |
Flange screw
|
|
| 16. |
21107014
|
[1] |
Catch
|
|
| 17. |
21107016
|
[1] |
Catch
|
|
| 18. |
984752
|
[2] |
Flange screw
|
|
| 19. |
984755
|
[8] |
Flange screw
|
|
| 20. |
3843493
|
[2] |
Rubber cushion kit
|
55 Shore
|
| 21. |
|
|
|
|
| 22. |
3840980
|
[1] |
Nut
|
|
| 23. |
3817323
|
[1] |
Adjusting screw
|
|
| 24. |
991994
|
[1] |
Washer
|
|
| 25. |
990697
|
[1] |
Lock washer
|
|
| 26. |
955786
|
[1] |
Hexagon nut
|
|
