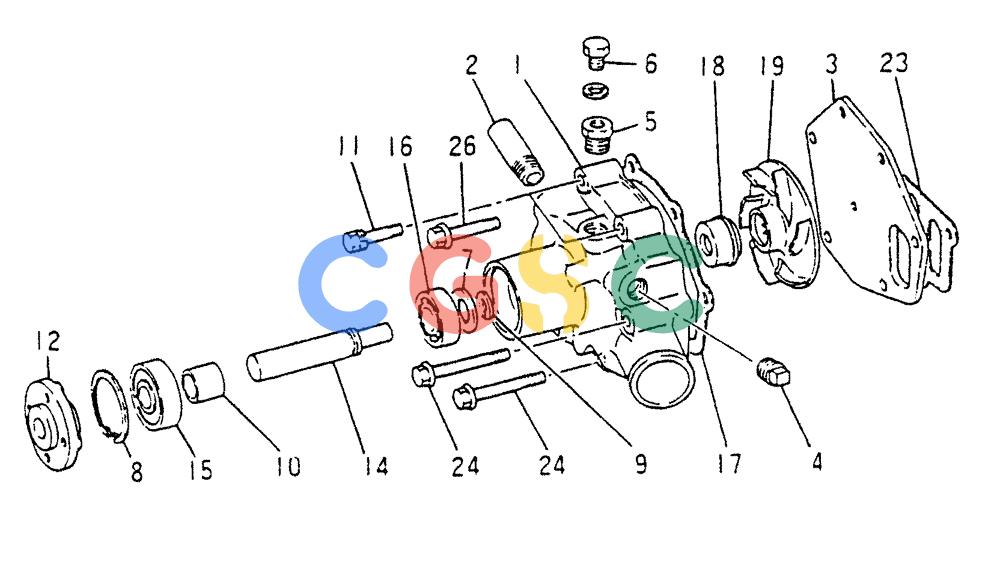

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (02-001) - WATER PUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VAME008268 | [1] | PUMP | KOBWATER ASSY Superseded by part number: VAME996985 |
| 1. | VAME008269 | [1] | CASE, WATER PUMP | |
| 2. | VA3134512500 | [1] | PIPE | KOBPIPE |
| 3. | VA3164501400 | [1] | COVER | |
| 4. | VAMF665143 | [1] | PLUG, TAPER PT3/8 | |
| 5. | VA3174514400 | [1] | CONNECTOR | |
| 6. | VAMF665002 | [1] | PLUG | KOBPLUG 10 Superseded by part number: 133271A1 |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 7. | VAMH005045 | [1] | WASHER WASHER | WASHER WASHER |
| 8. | VAMF522228 | [1] | SNAP RING | KOBRING, SNAP 47 |
| 9. | VA3164501800 | [1] | PISTON RING SET | KOBRING,SNAP |
| 10. | VA3164501900 | [1] | SPACER SPACER | SPACER SPACER |
| 11. | VAMF241259 | [2] | BOLT | KOBBOLT, W/WSR 8X35 |
| 12. | VAME008242 | [1] | FLANGE | KOB |
| 14-23. | VAME999410 | [1] | REPAIR KIT | KOBWATER PUMP (FOR SERVICE ONLY) |
| 14. | VAME015022 | [1] | SHAFT | KOBPUMP |
| 15. | VAMS556183 | [1] | BEARING | KOBBALL |
| 16. | VAMS556063 | [1] | BEARING | KOBBEARING,BALL |
| 17. | VA3164501200 | [1] | GASKET GASKET | GASKET GASKET |
| 18. | VAMH034026 | [1] | SEAL | KOBSEAL, UNIT |
| 19. | VAME005046 | [1] | IMPELLER | KOB |
| 23. | VA3134510601 | [1] | GASKET | KOBGASKET Superseded by part number: VAME220843 |
| 24. | VAMF140237 | [2] | BOLT | KOBBOLT, FLANGE 8X60 |
| 26. | VAMF140235 | [2] | BOLT | KOBBOLT, FLANGE 8X50 |
