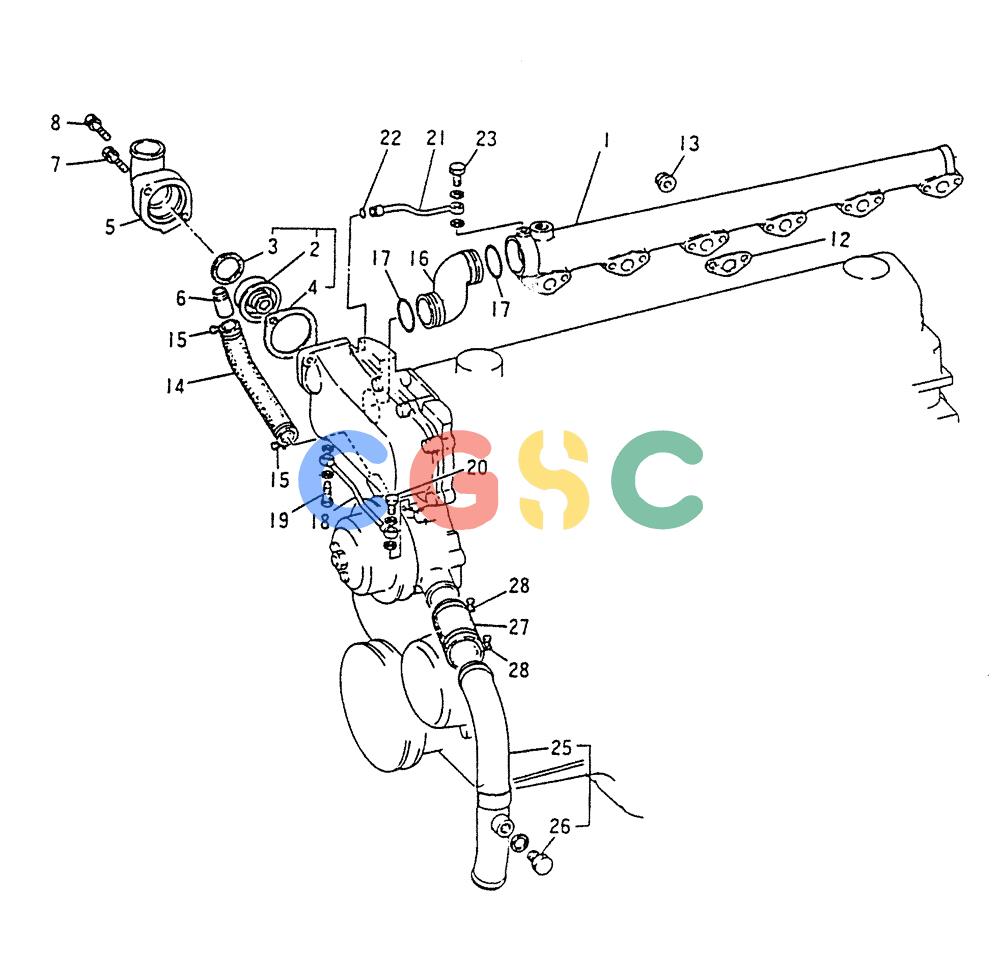

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (02-002) - WATER PIPE AND THERMOSTAT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
635 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3174610200 | [1] | PIPE | KOBPIPE, WATER OUTLET |
| 2-4. | VAME999239 | [1] | THERMOSTAT | KOBKIT 76.5C (FOR SERVICE ONLY) Superseded by part number: VAME994329 |
| 2. | VA3164602200 | [1] | KIT | KOBTHERMOSTAT THERMOSTAT 76.5C Superseded by part number: VAME994329 |
| 3. | VA3134611900 | [1] | GASKET | KOBGASKET,THERMOSTAT |
| 4. | VAME005106 | [1] | GASKET | KOBCOVER Superseded by part number: VAME300516 |
| 5. | VA3164605400 | [1] | CASE COVER, THERMOSTAT | CASE COVER, THERMOSTAT |
| 6. | VA3134600801 | [1] | PIPE | KOBPIPE |
| 7. | VAMF240062 | [1] | BOLT, W/WSR 8X45 | |
| 8. | VAMF240061 | [1] | BOLT, W/WSR 8X40 | |
| 12. | VA3164600600 | [6] | GASKET | KOBGASKET, WATER OUTLET PIPE Superseded by part number: VAME220845 |
| 13. | VAMF434104 | [12] | NUT | KOBNUT, FLANGE 8 |
| 14. | VA3164681100 | [1] | HOSE | KOBHOSE, BY-PASS |
| 15. | VAMS666011 | [2] | HOSE CLAMP | KOBCLAMP 25 |
| 16. | VA3174611100 | [1] | RIGID TUBE | KOBPIPE, CONNECTION |
| 17. | VAMF520404 | [2] | O-RING | KOBO-RING 40 |
| 18. | VA3174611700 | [1] | PIPE | KOBPIPE, WATER DRAIN |
| 19. | VA3164607200 | [1] | SCREW | KOBBOLT, EYE |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 20. | VAMF650102 | [1] | SCREW | KOBBOLT, EYE 10X20 |
| 21. | VA3174611500 | [1] | PIPE | KOBPIPE, AIR BREATHER |
| 22. | VA3174611401 | [1] | O RING O-RING | O RING O-RING |
| 23. | VAMF650101 | [1] | SCREW | KOBBOLT, EYE 8X17 |
| . . | VAMF660062 | [2] | PACKING | KOBGASKET 8 |
| 25-26. | VA3174680010 | [1] | SEPARATOR | KOBWATER SUCTION PIPE ASSY |
| 25. | VA3174680100 | [1] | SEPARATOR | KOBPIPE, WATER SUCTION Superseded by part number: VA3174680010 |
| 26. | VAM0001300 | [1] | PLUG | KOBPLUG 16 |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
| 27. | VA3164703300 | [1] | HOSE | KOBHOSE, RUBBER |
| 28. | VAMH020006 | [1] | CLIP | KOBCLIP, HOSE Superseded by part number: VAMH020381 |
