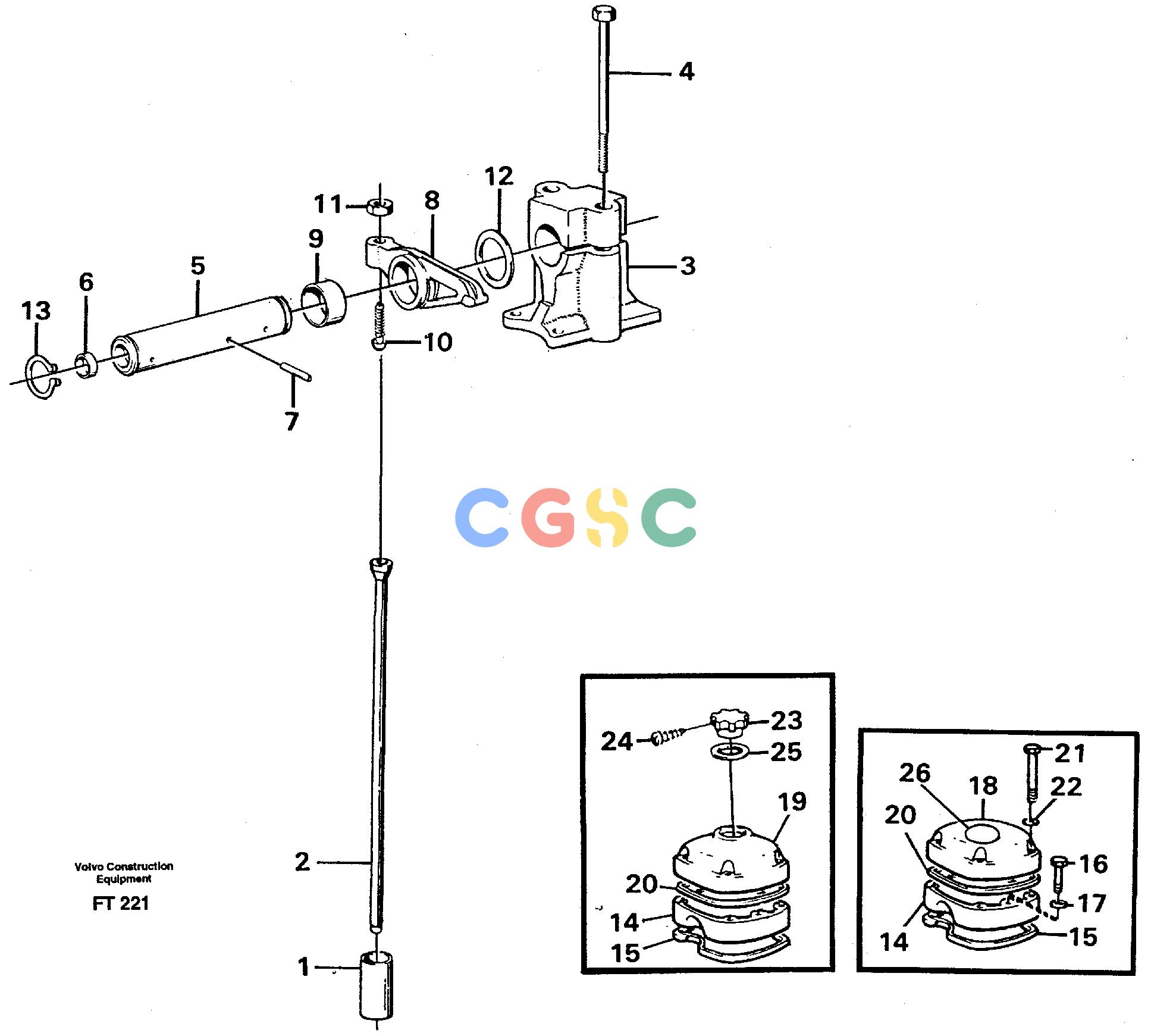

沃尔沃零件查询EC340 Valve mechanismSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE479863
|
[12] |
Tappet
|
(479031)
|
| 2. |
VOE467820
|
[12] |
Push rod
|
ENG - 307027
|
| |
VOE467820
|
[12] |
Push rod
|
ENG 307028 -
|
| 3. |
VOE422018
|
[6] |
Bearing Bracket
|
|
| 4. |
VOE7422428
|
[12] |
Screw
|
|
| 5. |
VOE422019
|
[6] |
Rocker arm shaft
|
|
| 6. |
VOE946778
|
[12] |
Cap plug
|
|
| 7. |
VOE950499
|
[6] |
Pin
|
|
| 8. |
VOE422063
|
[12] |
Rocker arm
|
|
| 9. |
VOE422066
|
[12] |
Bushing
|
|
| 10. |
VOE422993
|
[12] |
Bolt
|
|
| 11. |
VOE940175
|
[12] |
Nut
|
|
| 12. |
VOE941488
|
[12] |
Washer
|
|
| 13. |
VOE914459
|
[12] |
Snap ring
|
|
| 14. |
VOE469431
|
[6] |
Cover
|
|
| 15. |
VOE424693
|
[6] |
Gasket
|
|
| 16. |
VOE13940159
|
[12] |
Screw
|
(940159)
|
| 17. |
VOE13955894
|
[12] |
Washer
|
(955894)
|
| 18. |
VOE469432
|
[5] |
Cover
|
|
| 19. |
VOE469457
|
[1] |
Cover
|
|
| 20. |
VOE424694
|
[6] |
Gasket
|
|
| 21. |
VOE955530
|
[24] |
Hexagon screw
|
|
| 22. |
VOE13941907
|
[24] |
Washer
|
(941907)
|
| 23. |
VOE421753
|
[1] |
Filler cap
|
E PROD
|
| 24. |
VOE955126
|
[3] |
Cross recessed screw
|
|
| |
VOE3547599
|
[1] |
Oil filler cap
|
L PROD
|
| 25. |
VOE1275379
|
[1] |
Gasket
|
|
| 26. |
VOE417649
|
[1] |
Sign
|
|
