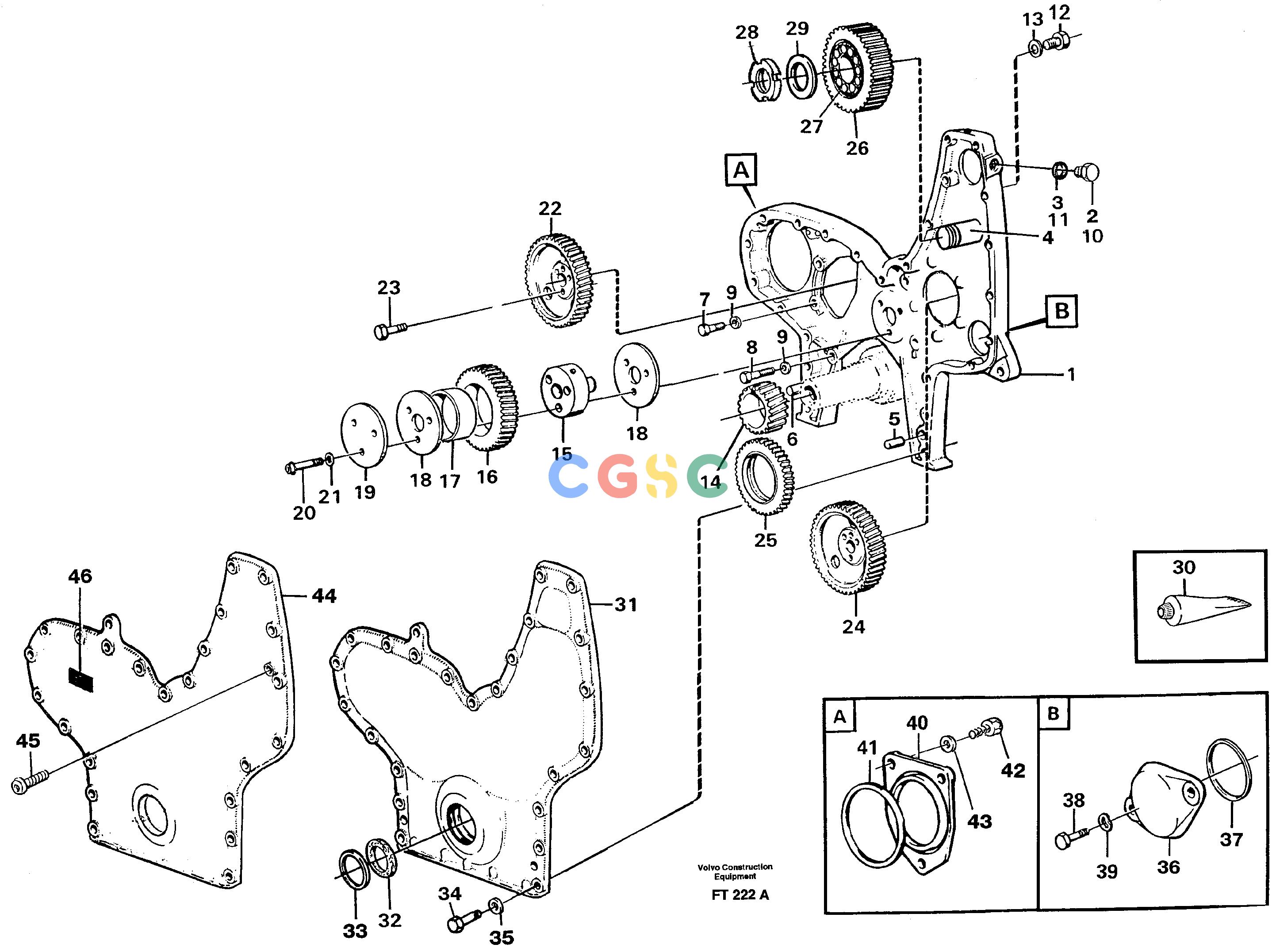

沃尔沃零件查询EC340 Timing gear casing and gears.SER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
560 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE8194639
|
[1] |
Timing gear casing
|
|
| 2. |
VOE13960633
|
[2] |
Plug
|
(960633)
|
| 3. |
VOE13947625
|
[2] |
Plane gasket
|
(947625)
|
| 4. |
VOE8194626
|
[1] |
Pin
|
|
| 5. |
VOE13941510
|
[1] |
Pin
|
(941510)
|
| 6. |
VOE13941511
|
[1] |
Pin
|
(941511)
|
| 7. |
VOE941939
|
[4] |
Screw
|
|
| 8. |
VOE955537
|
[1] |
Hexagon screw
|
|
| 9. |
VOE13942336
|
[5] |
Spring washer
|
(942336)
|
| 10. |
VOE13960633
|
[1] |
Plug
|
(960633)
|
| 11. |
VOE13947625
|
[1] |
Plane gasket
|
|
| 12. |
VOE7192114
|
[1] |
Plug
|
|
| 13. |
VOE13947627
|
[1] |
Plane gasket
|
(947627)
|
| 14. |
|
[1] |
Crankshaft gear
|
|
| 15. |
VOE8192636
|
[1] |
Idler gear
|
|
| 16. |
VOE479653
|
[1] |
Idler gear
|
|
| 17. |
VOE479687
|
[1] |
Bushing
|
|
| 18. |
VOE478951
|
[2] |
Thrust washer
|
|
| 19. |
VOE478954
|
[1] |
Bearing shield
|
|
| 20. |
VOE468738
|
[3] |
Screw
|
|
| 21. |
VOE942180
|
[3] |
Disc spring
|
|
| 22. |
VOE478297
|
[1] |
Gear
|
|
| 23. |
VOE471555
|
[3] |
Screw
|
|
| 24. |
|
[1] |
Gear, injection pump
|
|
| 25. |
|
[1] |
Drive gear, oil pump
|
|
| 26. |
VOE478959
|
[1] |
Idler gear
|
|
| 27. |
VOE478783
|
[1] |
Bearing
|
|
| 28. |
VOE906634
|
[1] |
Round nut
|
|
| 29. |
VOE470427
|
[1] |
Wear ring
|
ENG - 302127
|
| 30. |
VOE1161277
|
[REQ] |
Sealant
|
20 G
|
| |
VOE11713514
|
[REQ] |
Sealant
|
304 ml
|
| 31. |
VOE11031091
|
[1] |
Cover
|
|
| 32. |
VOE941666
|
[1] |
Sealing ring
|
|
| 33. |
VOE424983
|
[1] |
Sealing ring
|
|
| 34. |
VOE13940162
|
[9] |
Screw
|
L = 38, (940162)
|
| |
VOE955540
|
[2] |
Hexagon screw
|
L = 70
|
| |
VOE955542
|
[8] |
Hexagon screw
|
L = 83
|
| 35. |
VOE13942336
|
[19] |
Spring washer
|
(942336)
|
| 36. |
VOE468093
|
[1] |
Cover
|
|
| 37. |
VOE468094
|
[1] |
Sealing ring
|
|
| 38. |
VOE955535
|
[2] |
Hexagon screw
|
|
| 39. |
VOE13942336
|
[2] |
Spring washer
|
(942336)
|
| 40. |
VOE420178
|
[1] |
Cover
|
|
| 41. |
VOE13975610
|
[1] |
O-ring
|
(975610)
|
| 42. |
VOE955576
|
[3] |
Hexagon screw
|
|
| 43. |
VOE941911
|
[3] |
Spring washer
|
|
| 44. |
VOE479652
|
[1] |
Noise shield
|
|
| 45. |
VOE13972542
|
[16] |
Six point socket screw
|
|
| 46. |
VOE11033981
|
[1] |
Label
|
|
