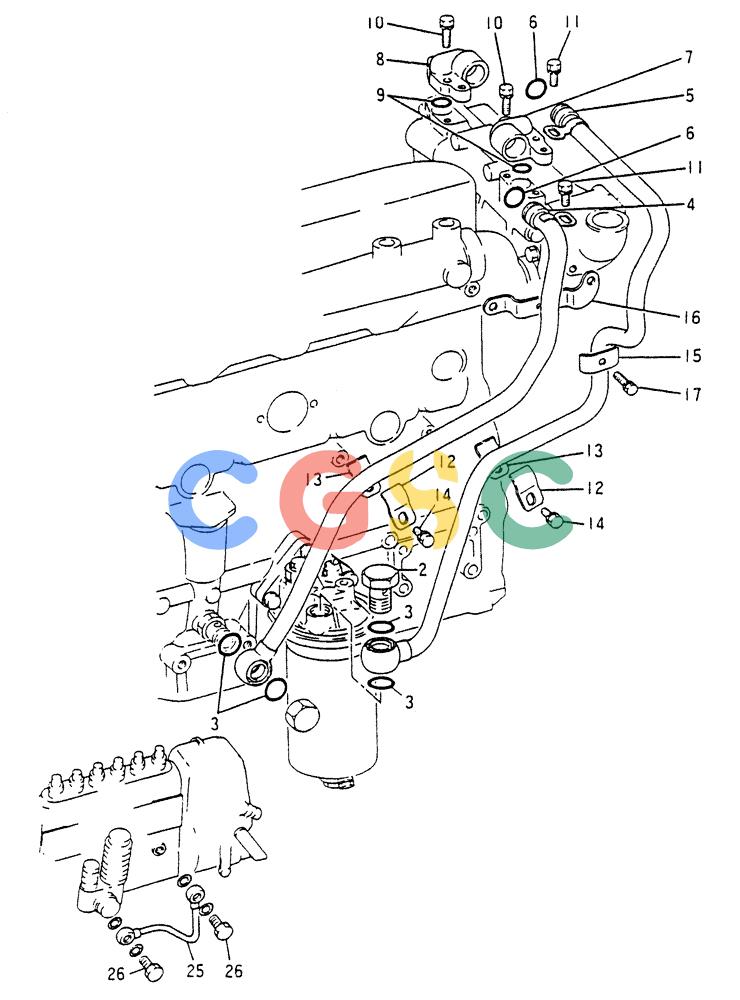

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (02-007[01]) - OIL LINE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
869 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | VA3173615601 | [1] | BOLT | KOBBOLT, EYE |
| 3. | VAMH035091 | [4] | O-RING | KOBO-RING |
| 4. | VA3173615100 | [1] | PIPE | KOBPIPE, A, OIL |
| 5. | VA3173615200 | [1] | PIPE | KOBPIPE, B, OIL |
| 6. | VA3173613700 | [2] | O-RING | KOBO-RING Superseded by part number: VAMH035017 |
| 7. | VA3173613800 | [1] | CONNECTOR, INLET | |
| 8. | VA3173613900 | [1] | CONNECTOR, OUTLET | |
| 9. | VAMH035017 | [2] | O-RING | KOBO-RING |
| 10. | VAMF243655 | [4] | BOLT | KOBBOLT, W/WSR 8X30 |
| 11. | VAMF243651 | [2] | BOLT | KOBBOLT, W/WSR 8X20 |
| 12. | VA3173614600 | [2] | STAY, A | |
| 13. | VA3173614700 | [2] | STAY, B | |
| 14. | VAMF243652 | [2] | BOLT, W/WSR 8X22 | |
| 15. | VA3173614800 | [1] | CLAMP | |
| 16. | VA3173615500 | [1] | STAY, OIL PIPE | |
| 17. | VAMF243631 | [1] | BOLT, W/WSR 6X32 | |
| 25. | VAME004112 | [1] | PIPE, OIL, I/P | |
| 26. | VAMH037279 | [1] | BOLT | KOBBOLT/EYE |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 40. | VAME008170 | [1] | PIPE OIL TURBOCHARGER INLET (FOR M5 ONLY) | PIPE OIL TURBOCHARGER INLET (FOR M5 ONLY) |
| 41. | VAMH037717 | [1] | BOLT | KOBBOLT, EYE (FOR M5 ONLY) |
| 42. | VA3164205200 | [1] | STAY (FOR M5 ONLY) | |
| 43. | VA3166807500 | [1] | WASHER (FOR M5 ONLY) | |
| 44. | VAMH000399 | [1] | SCREW | KOBBOLT 8X16 (FOR M5 ONLY) |
| 45. | VA3004901300 | [1] | CLAMP | KOB(FOR M5 ONLY) |
| 46. | VAMF140005 | [1] | BOLT | KOBBOLT, FLANGE 6X16 (FOR M5 ONLY) |
| 47. | VAME008615 | [1] | PIPE, OIL TURBOCHARGER OUTLET (FOR M5 ONLY) | |
| 48. | VAMF140003 | [3] | BOLT | KOBBOLT, FLANGE 6X12 (FOR M5 ONLY) |
| 49. | VAME014559 | [1] | GASKET | KOB(FOR M5 ONLY) Superseded by part number: VAME073842 |
| 50. | VMH020806 | [1] | CLAMP (FOR M5 ONLY) | |
| 51. | VAMH030120 | [1] | HOSE, RUBBER (FOR M5 ONLY) | |
| 52. | VAMS660172 | [2] | CLIP, HOSE (FOR M5 ONLY) | |
