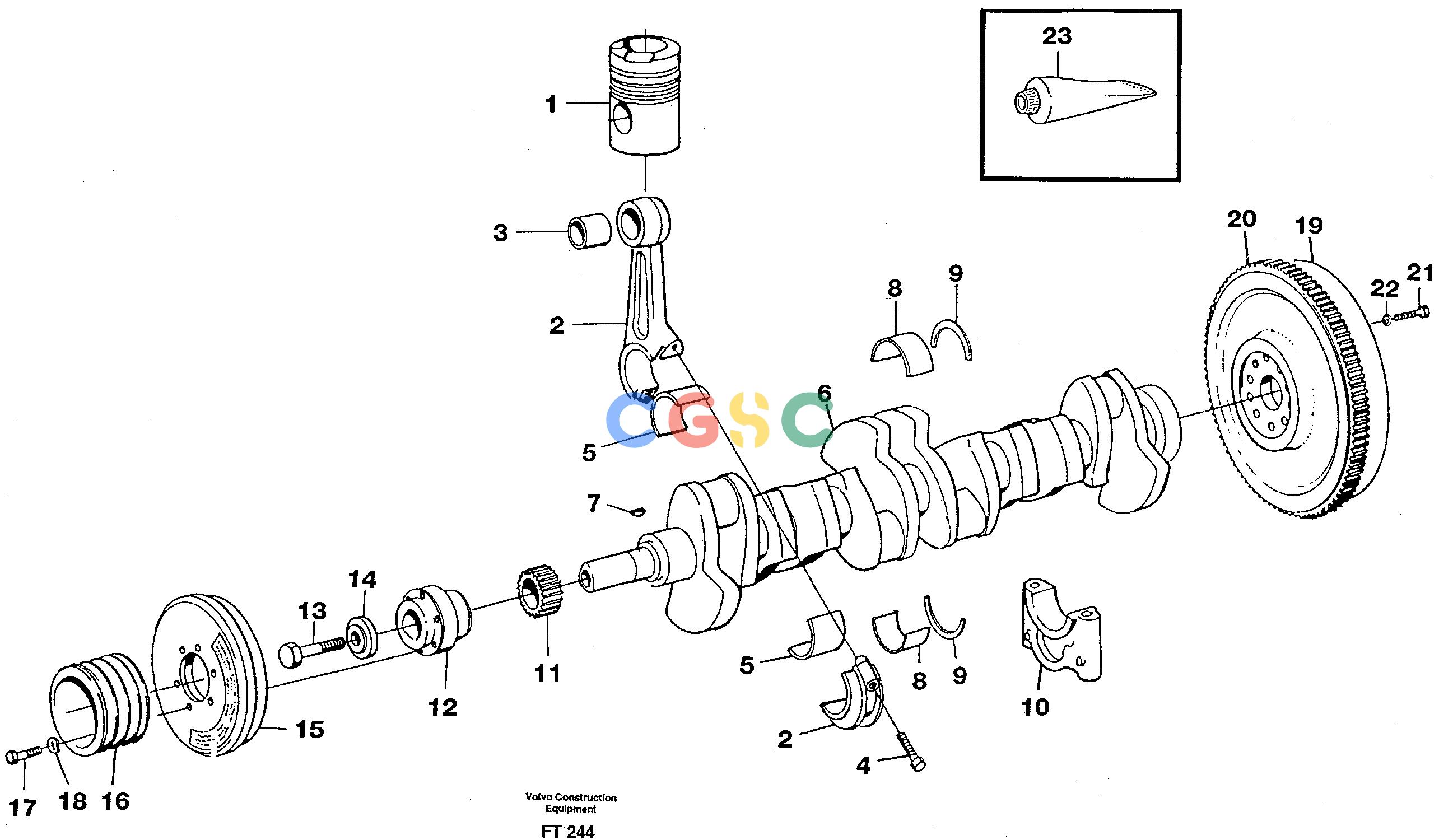

沃尔沃零件查询EC340 Crankshaft and related partsSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
853 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Piston
|
|
| 2. |
VOE422706
|
[6] |
Connecting rod
|
|
| 3. |
VOE422708
|
[6] |
Bushing
|
|
| 4. |
VOE1545479
|
[12] |
Screw
|
|
| 5. |
VOE270124
|
[6] |
Big End Brg Kit
|
STD
|
| 5. |
VOE270125
|
[6] |
Big End Brg Kit
|
0,25 O SZ
|
| 5. |
VOE270126
|
[6] |
Big End Brg Kit
|
0,50 O SZ
|
| 5. |
VOE270127
|
[6] |
Big End Brg Kit
|
0,75 O SZ
|
| 5. |
VOE270128
|
[6] |
Big End Brg Kit
|
1,00 O SZ
|
| 6. |
VOE20381957
|
[1] |
Crankshaft
|
|
| 7. |
VOE422253
|
[1] |
Key
|
|
| 8. |
VOE270438
|
[7] |
Main bearing kit
|
STD
|
| 8. |
VOE270439
|
[7] |
Main bearing kit
|
0,010" U SZ
|
| 8. |
VOE270440
|
[7] |
Main bearing kit
|
0,020" U SZ
|
| 8. |
VOE270441
|
[7] |
Main bearing kit
|
0,030" U SZ
|
| 8. |
VOE270442
|
[7] |
Main bearing kit
|
0,040" U SZ
|
| 8. |
VOE270443
|
[7] |
Main bearing kit
|
0,050" U SZ
|
| 9. |
VOE276758
|
[1] |
Thrust washer kit
|
STD
|
| 9. |
VOE276759
|
[1] |
Thrust washer kit
|
0,1 O SZ
|
| 9. |
VOE276760
|
[1] |
Thrust washer kit
|
0,2 O SZ
|
| 9. |
VOE276761
|
[1] |
Thrust washer kit
|
0,3 O SZ
|
| 10. |
|
[7] |
Cap
|
|
| 11. |
VOE423080
|
[1] |
Gear
|
|
| 12. |
VOE478506
|
[1] |
Hub
|
|
| 13. |
VOE941494
|
[1] |
Screw
|
|
| 14. |
VOE422124
|
[1] |
Washer
|
|
| 15. |
VOE422924
|
[1] |
Vibration damper
|
|
| 16. |
VOE1545284
|
[1] |
Pulley
|
|
| 17. |
VOE955550
|
[6] |
Hexagon screw
|
|
| 18. |
VOE13941909
|
[6] |
Washer
|
|
| 19. |
VOE864997
|
[1] |
Flywheel
|
|
| 20. |
VOE420794
|
[1] |
Gear ring
|
|
| 21. |
VOE478717
|
[14] |
Screw
|
|
| 22. |
VOE467773
|
[14] |
Washer
|
|
| 23. |
VOE1161277
|
[REQ] |
Sealant
|
|
