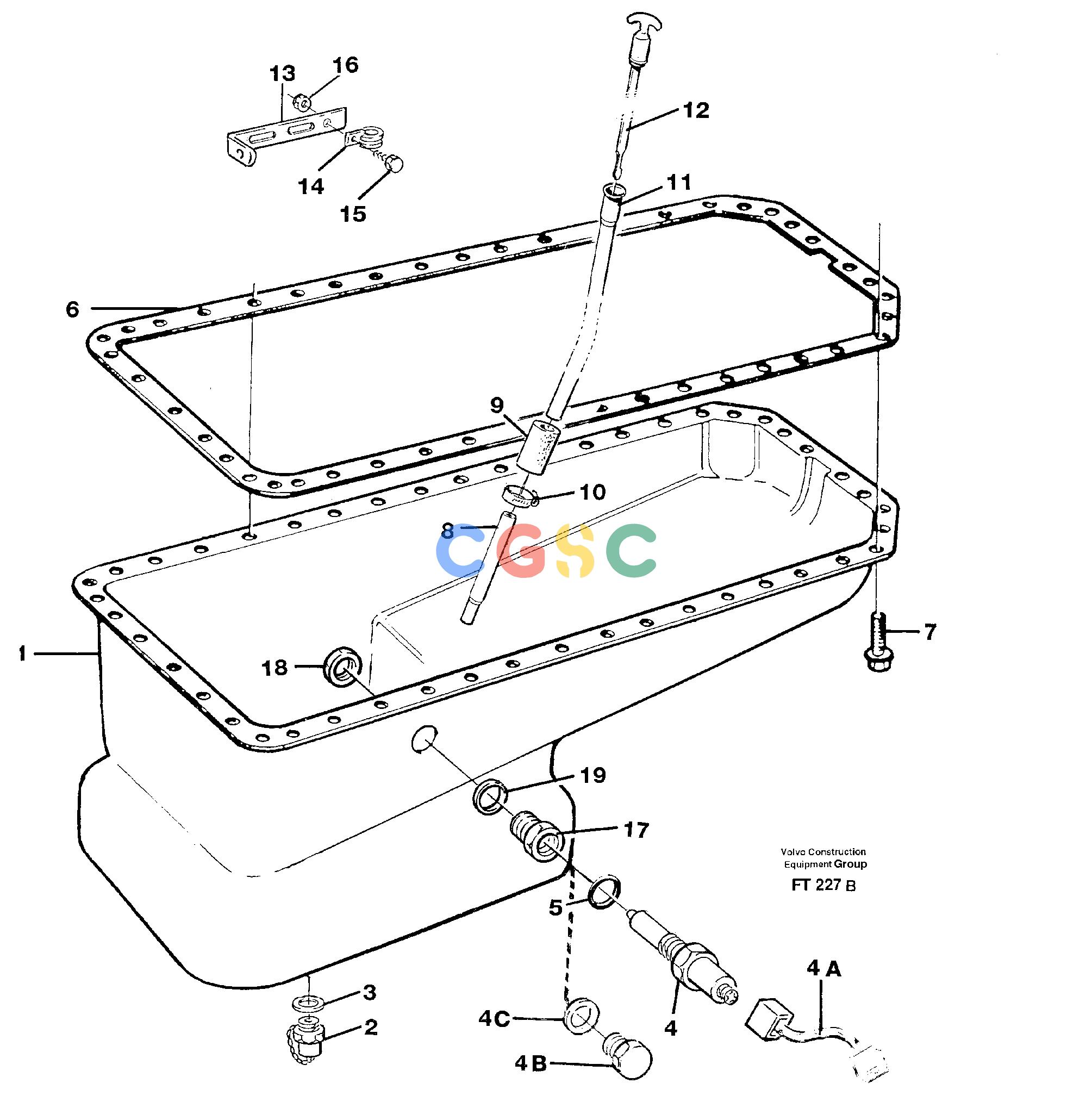

沃尔沃零件查询EC340 Oil sumpSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
632 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031299
|
[1] |
Oil pan
|
|
| 2. |
VOE11054692
|
[1] |
Valve
|
|
| 3. |
VOE949329
|
[1] |
Gasket
|
|
| 4. |
VOE11715539
|
[1] |
Level guard
|
SER NO - 1233, + 1235
B41
|
| |
VOE14345269
|
[1] |
Level guard
|
SER NO 1234, 1236 - 1414
B41
|
| 4A. |
VOE14345271
|
[1] |
Cable harness
|
SER NO 1234, 1236 - 1414
|
| 4B. |
VOE914391
|
[1] |
Plug
|
SER NO 1415 -
|
| 4C. |
VOE947623
|
[1] |
Gasket
|
SER NO 1415 -
|
| 5. |
VOE14042936
|
[1] |
Sealing washer
|
|
| 6. |
VOE1545696
|
[1] |
Gasket
|
|
| 7. |
VOE942402
|
[34] |
Flange screw
|
L = 16MM
|
| 7. |
VOE955525
|
[7] |
Hexagon screw
|
L = 25MM
|
| 8. |
VOE479328
|
[1] |
Tube
|
|
| 9. |
VOE8149606
|
[1] |
Rubber hose
|
|
| 10. |
VOE13943472
|
[2] |
Hose clamp
|
|
| 11. |
VOE11031269
|
[1] |
Tube
|
|
| 12. |
VOE11032120
|
[1] |
Oil dipstick
|
|
| |
VOE421723
|
[1] |
Seal
|
|
| 13. |
VOE965561
|
[1] |
Bracket
|
|
| 14. |
VOE952629
|
[1] |
Clamp
|
|
| 15. |
VOE13946544
|
[1] |
Screw
|
|
| 16. |
VOE13945408
|
[1] |
Nut
|
|
| 17. |
VOE11031289
|
[1] |
Plug
|
|
| 18. |
VOE468948
|
[1] |
Nut
|
|
| 19. |
VOE468947
|
[1] |
Sealing ring
|
|
