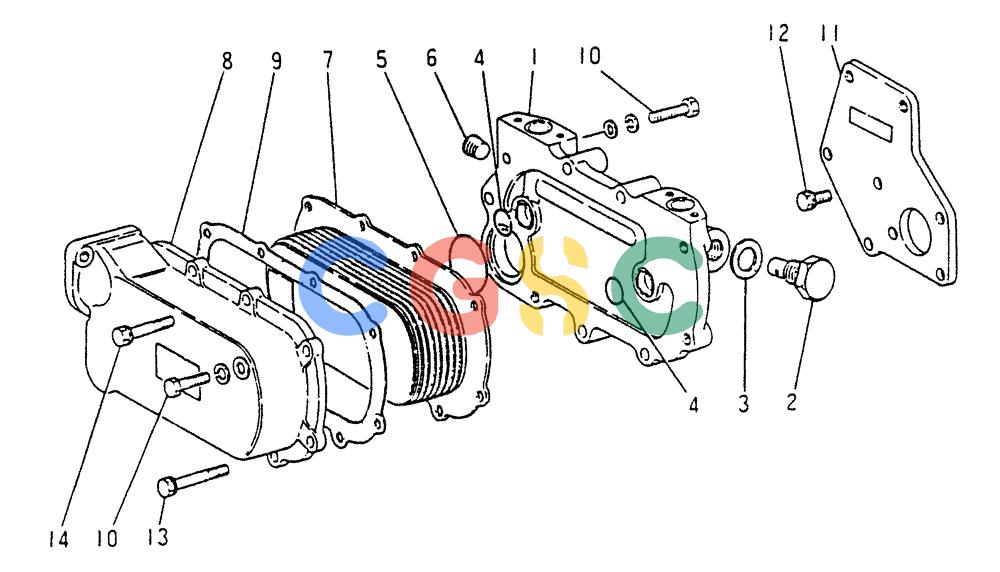

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (02-008) - OIL COOLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-10. | VA3163981010 | [1] | OIL COOLER ASSY | |
| 1. | VA3163981200 | [1] | COVER | |
| 2. | VA3173911500 | [1] | VALVE RELIEF VALVE ASSY | VALVE RELIEF VALVE ASSY |
| 3. | VAMF660069 | [1] | PACKING | KOBGASKET 22 Superseded by part number: VAF420222000 |
| 4. | VAMH035093 | [2] | O-RING | KOBO-RING 24.7 Superseded by part number: 77270608, 133289A1 |
| 5. | VA3173910600 | [1] | O-RING O-RING | O-RING O-RING |
| 6. | VAMF665103 | [1] | PLUG PLUG, TAPER PT3/8 | PLUG PLUG, TAPER PT3/8 |
| 7. | VA3163981300 | [1] | OIL COOLER FILTER | KOBELEMENT, O/C |
| 8. | V3163981100 | [1] | CASE | |
| 9. | VA3163902400 | [1] | PACKING | KOBPACKING |
| 10. | VAMF103661 | [4] | BOLT 8X35 | |
| 10. | VAMF103659 | [1] | BOLT 8X30 | |
| . . | VAMF399005 | [5] | WASHER, PLAIN 8 | |
| . . | VAMF399105 | [5] | WASHER, SPG 8 | |
| 11. | V3173911100 | [1] | BRACKET, O/C | |
| 12. | VAMF240052 | [4] | BOLT BOLT, W/WSR 8X18 | BOLT BOLT, W/WSR 8X18 |
| 13. | VAMF243663 | [2] | BOLT | KOBW/WSR 8X60 |
| 14. | VAMF243662 | [2] | BOLT BOLT, W/WSR 8X55 | BOLT BOLT, W/WSR 8X55 |
