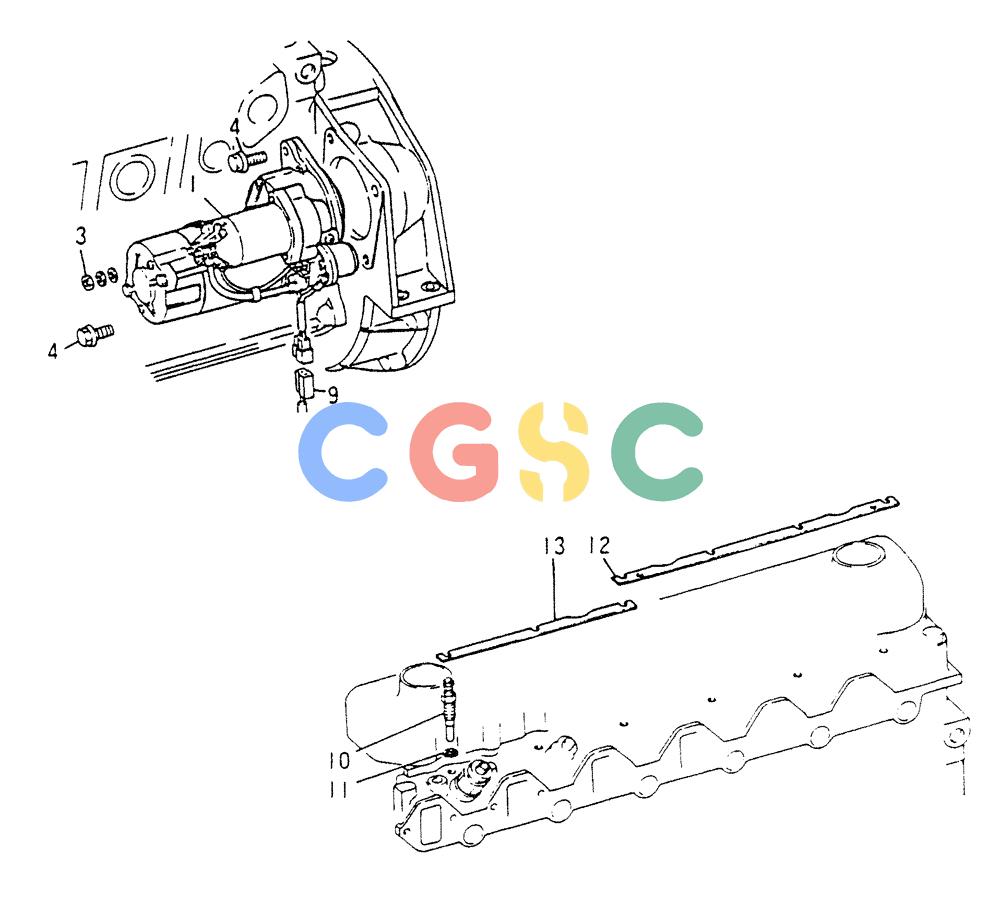

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME008815 | [1] | STARTER MOTOR | KOBASSY, MEC 24V-5.0KW CF GN050-111B |
| 3. | VAMF430725 | [1] | NUT | KOBNUT 8 |
| . . | VAMF450405 | [1] | WASHER | KOBWASHER, SPG 8 Superseded by part number: 132502A1 |
| . . | VAMF450005 | [1] | WASHER | KOBPLAIN 8 |
| 4. | VAMH000727 | [2] | BOLT | KOBBOLT, FLANGE 12X30 |
| 9. | VAMH052031 | [1] | HYD CONNECTOR | KOBCONNECTOR 2P |
| 10. | VAME007547 | [6] | PLUG | KOBGLOW |
| 11. | VA3130113200 | [6] | GASKET | KOBGASKET, GLOW PLUG |
| 12. | VA3136604200 | [1] | PLATE | KOBPLATE, CONNECTION |
| 13. | VA3146604200 | [1] | PLATE | KOBPLATE, CONNECTION |
