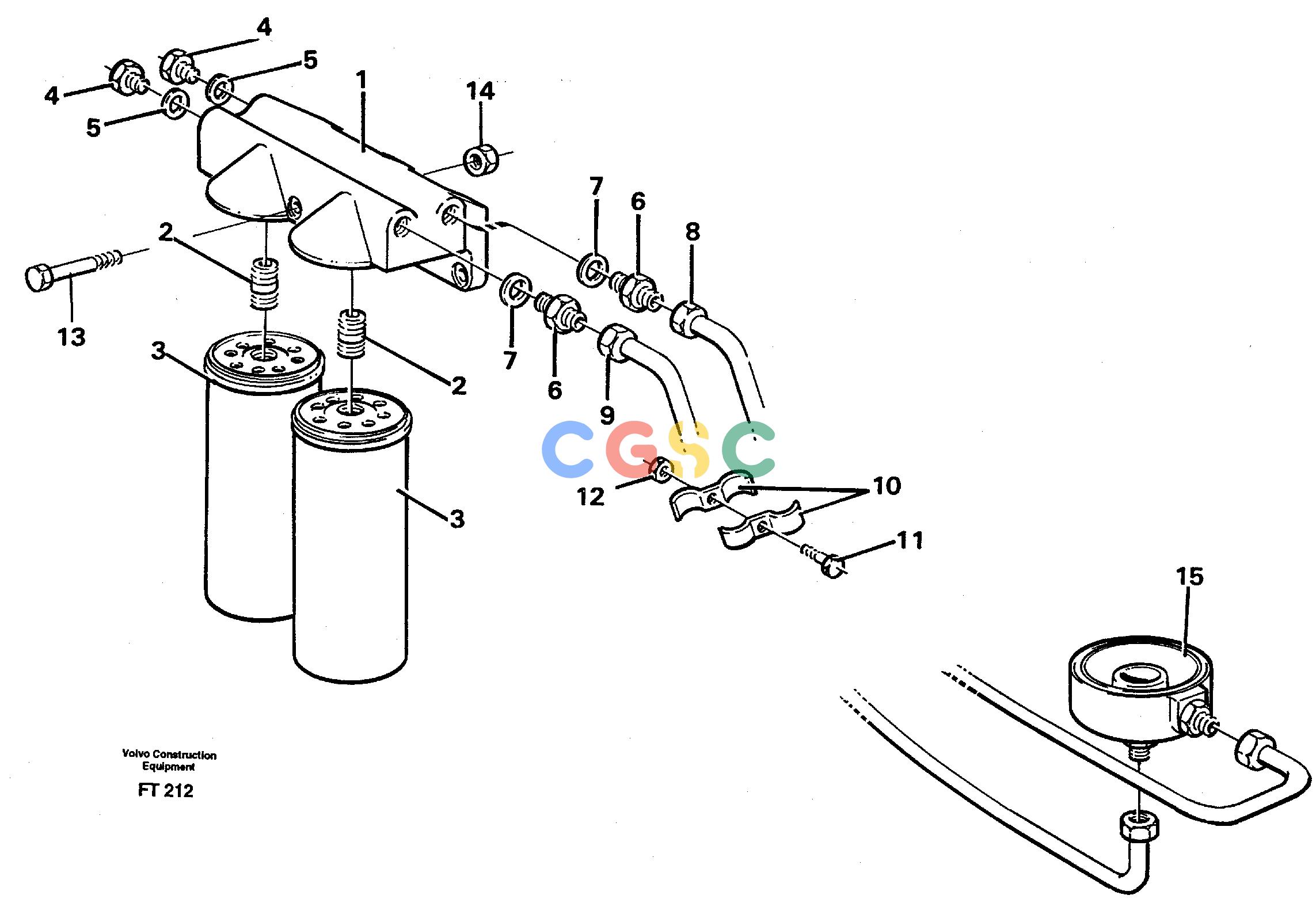

沃尔沃零件查询EC340 Oil filterSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
331 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031901
|
[1] |
Oil filter housing
|
|
| 2. |
VOE466623
|
[2] |
Nipple
|
|
| 3. |
VOE21707134
|
[2] |
Oil Filter
|
|
| 4. |
VOE13960634
|
[2] |
Plug
|
|
| 5. |
VOE13947627
|
[2] |
Plane gasket
|
|
| 6. |
VOE947554
|
[2] |
Nipple
|
|
| 7. |
VOE948885
|
[2] |
Plane gasket
|
|
| 8. |
VOE11031245
|
[1] |
Pipe
|
|
| 9. |
VOE11031246
|
[1] |
Pipe
|
|
| 10. |
VOE947219
|
[4] |
Clamp
|
|
| 11. |
VOE965212
|
[2] |
Flange screw
|
|
| 12. |
VOE13945407
|
[2] |
Nut
|
|
| 13. |
VOE13965185
|
[3] |
Screw
|
L = 40mm
|
| |
VOE968237
|
[1] |
Flange screw
|
L = 120mm
|
| 14. |
VOE13971095
|
[4] |
Flange nut
|
|
| 15. |
|
[1] |
Cap
|
|
