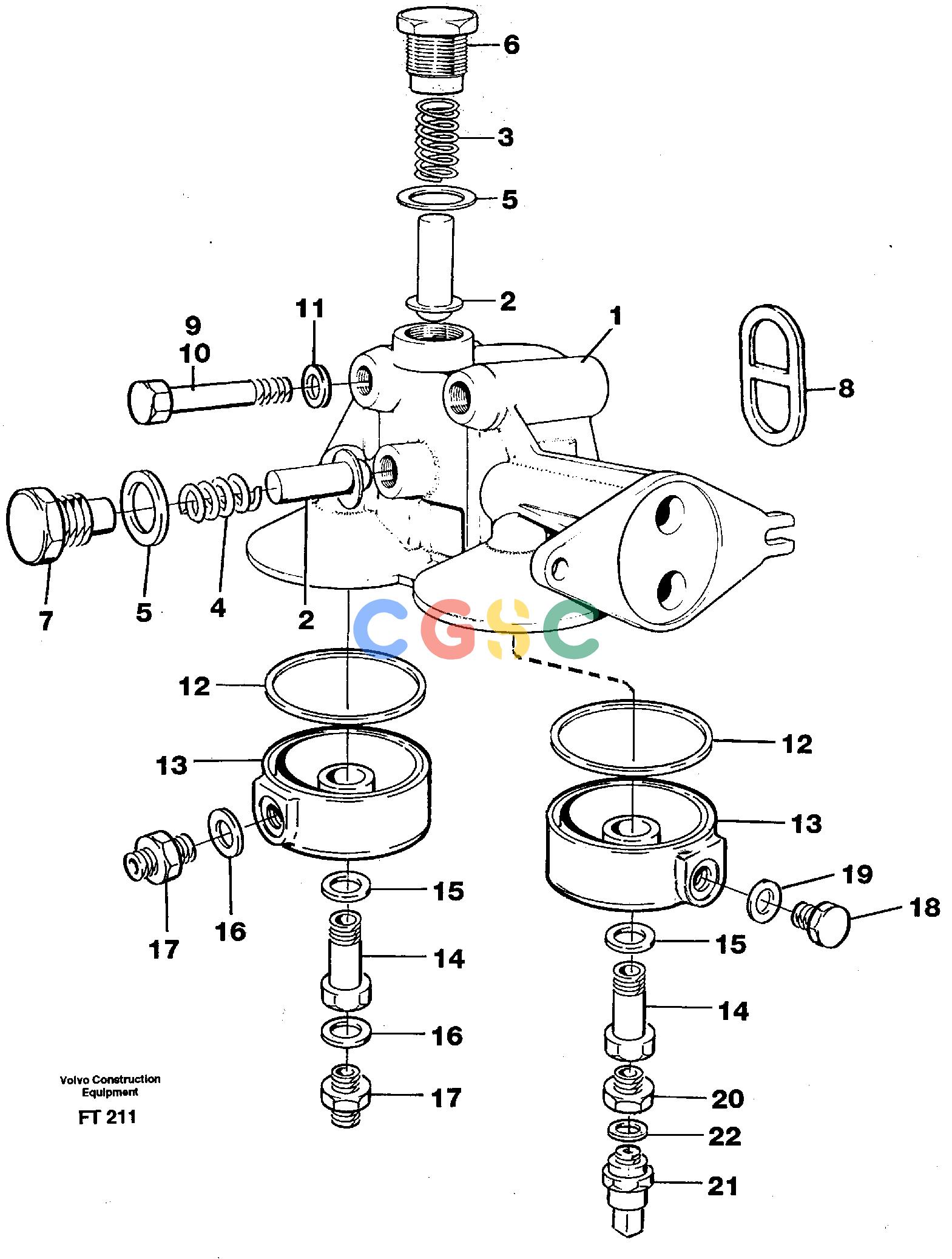

沃尔沃零件查询EC340 Filter housingSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE8194717
|
[1] |
Oil filter housing
|
|
| 1. |
VOE1545769
|
[1] |
Housing
|
|
| 2. |
VOE471085
|
[2] |
Valve cone
|
|
| 3. |
VOE466653
|
[1] |
Compression spring
|
|
| 4. |
VOE471775
|
[1] |
Compression spring
|
|
| 5. |
VOE957185
|
[2] |
Gasket
|
|
| 6. |
VOE466624
|
[1] |
Plug
|
|
| 7. |
VOE478176
|
[1] |
Plug
|
|
| 8. |
VOE469487
|
[1] |
Gasket
|
|
| 9. |
VOE955544
|
[2] |
Hexagon screw
|
L = 102 MM
|
| 10. |
VOE13940115
|
[2] |
Screw
|
L = 25 MM
|
| 11. |
VOE13942336
|
[4] |
Spring washer
|
|
| 12. |
VOE13948981
|
[2] |
O-ring
|
|
| 13. |
VOE11031906
|
[2] |
Cover
|
|
| 14. |
VOE11031907
|
[2] |
Reduction nipple
|
|
| 15. |
VOE11032095
|
[2] |
Gasket
|
|
| 16. |
VOE948885
|
[2] |
Plane gasket
|
|
| 17. |
VOE947554
|
[2] |
Nipple
|
|
| 18. |
VOE13960634
|
[1] |
Plug
|
|
| 19. |
VOE948885
|
[1] |
Plane gasket
|
|
| 20. |
VOE13966459
|
[1] |
Nipple
|
|
| 21. |
VOE3962893
|
[1] |
Sensor
|
B47
|
| 22. |
VOE13947622
|
[1] |
Plane gasket
|
|
