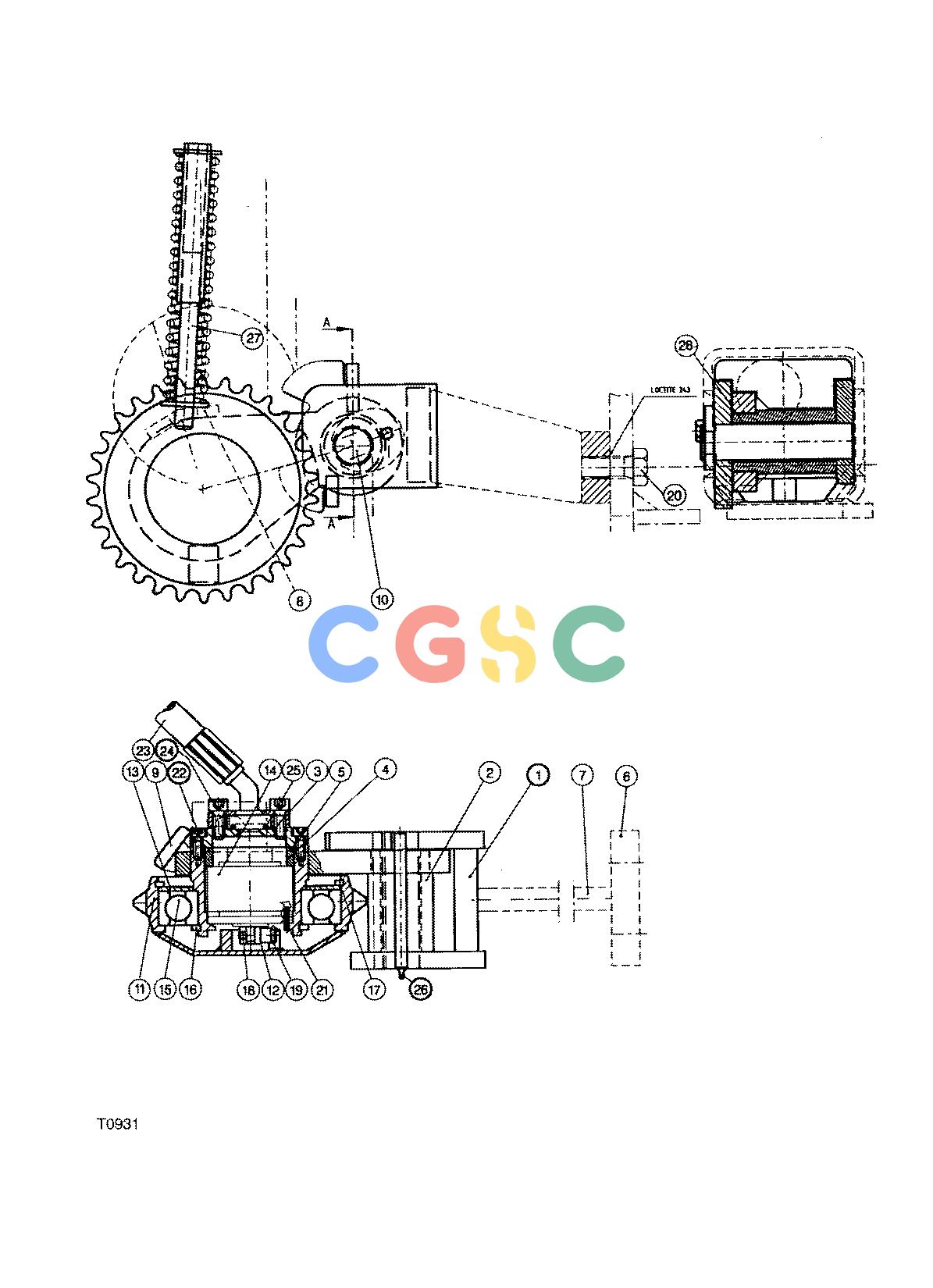

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE MEASURING DEVICE F045006 11 12 T0931 [T0931]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047718
|
[1] |
FASTENING
|
|
| 2. |
F060407
|
[1] |
Frame
|
|
| 3. |
F047720
|
[1] |
Cover
|
|
| 4. |
F047721
|
[1] |
ADJUSTING RING
|
|
| 4. |
F047722
|
[1] |
ADJUSTING RING
|
|
| 5. |
F047723
|
[1] |
O-Ring
|
|
| 6. |
F047724
|
[1] |
Plate
|
|
| 7. |
F047725
|
[1] |
Arm
|
|
| 8. |
F047726
|
[1] |
Support
|
|
| 9. |
F047727
|
[1] |
Guide
|
|
| 10. |
F047728
|
[1] |
Shaft
|
|
| 11. |
F047729
|
[1] |
MEASURING ROLL
|
|
| 11. |
F047730
|
[1] |
MEASURING ROLL
|
|
| 12. |
F047711
|
[1] |
Clutch
|
|
| 13. |
F047712
|
[1] |
PROTECTION PLATE
|
|
| 14. |
F045844
|
[1] |
PULSE SENSOR
|
|
| 15. |
F047714
|
[1] |
Bearing
|
|
| 16. |
F047715
|
[1] |
CIRCLIP
|
|
| 17. |
F035887
|
[1] |
CIRCLIP
|
|
| 18. |
F003466
|
[1] |
STOP SCREW
|
|
| 19. |
F047690
|
[1] |
O-Ring
|
|
| 20. |
F003549
|
[2] |
Screw
|
|
| 21. |
F003614
|
[1] |
Spring Pin
|
|
| 22. |
F047731
|
[6] |
Screw
|
|
| 23. |
F047732
|
[1] |
HOSE-ASSY
|
|
| 24. |
F003411
|
[4] |
Screw
|
|
| 25. |
F047733
|
[1] |
O-Ring
|
|
| 26. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 27. |
F003259
|
[1] |
Spring
|
|
| 27. |
F050798
|
[1] |
Spring Kit
|
|
| 28. |
F015796
|
[2] |
BEARING BUSHING
|
|
| 29. |
F052757
|
[2] |
FASTENING
|
|
