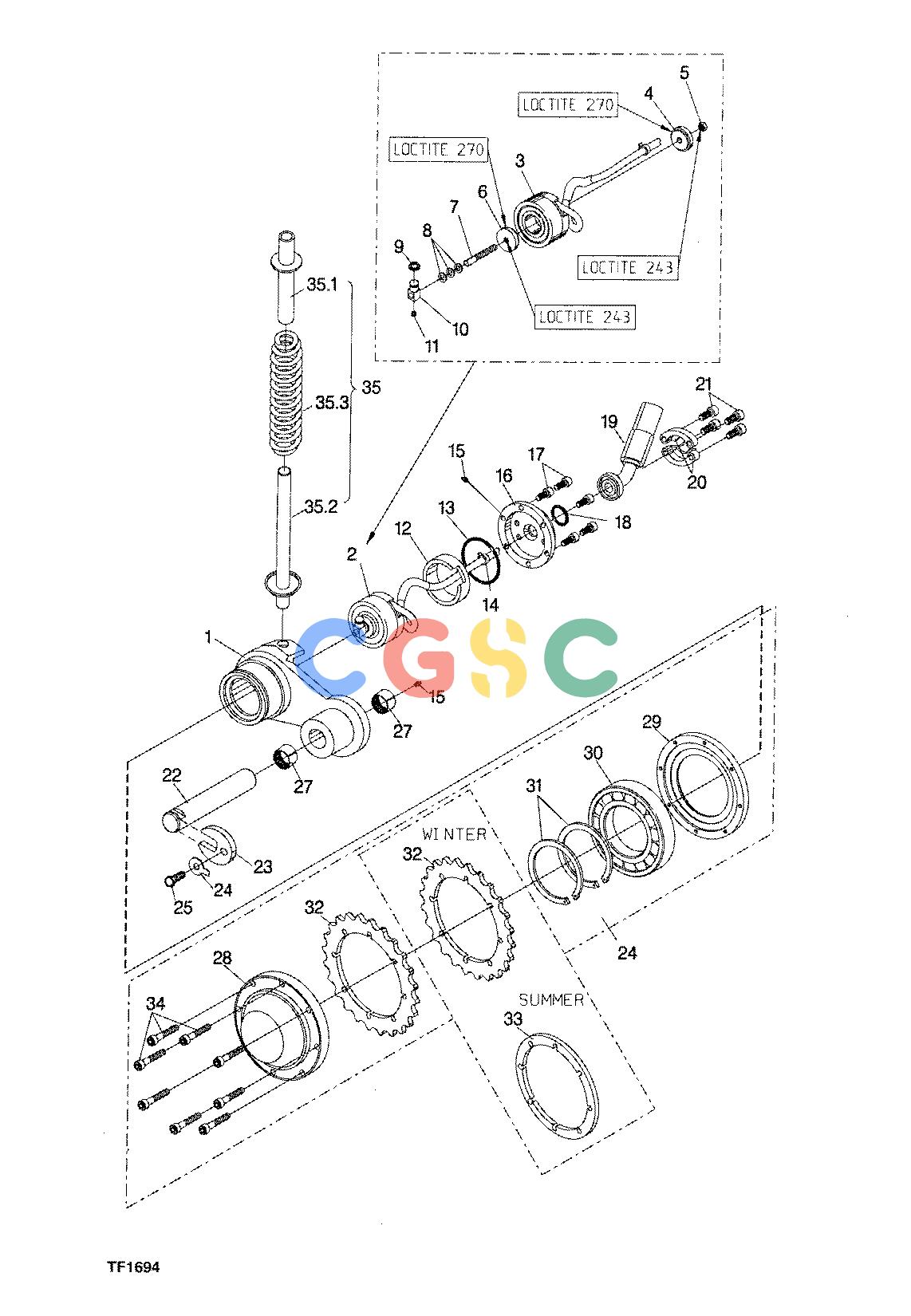

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE MEASURING DEVICE F045006 11 12.2 TF1694 [TF1694]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
937 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F059249
|
[1] |
Frame
|
|
| 2. |
F058210
|
[1] |
PULSE SENSOR
|
|
| 3. |
F058249
|
[1] |
PULSE SENSOR
|
|
| 4. |
F058211
|
[1] |
Flange
|
|
| 5. |
F003586
|
[1] |
LOCKNUT
|
|
| 6. |
F058212
|
[1] |
Flange
|
|
| 7. |
F058213
|
[1] |
Screw
|
|
| 8. |
F003337
|
[3] |
Washer
|
|
| 9. |
F047690
|
[1] |
O-Ring
|
|
| 10. |
F047711
|
[1] |
Clutch
|
|
| 11. |
F003466
|
[1] |
Set Screw
|
|
| 12. |
F058227
|
[1] |
ADJUSTING RING
|
|
| 13. |
F047723
|
[1] |
O-Ring
|
|
| 14. |
F012942
|
[2] |
CABLE TIE
|
|
| 15. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 16. |
F047720
|
[1] |
Cover
|
|
| 17. |
F047731
|
[6] |
Cap Screw
|
|
| 18. |
F047733
|
[1] |
O-Ring
|
|
| 19. |
F047732
|
[1] |
HOSE-ASSY
|
|
| 20. |
F052757
|
[2] |
FLANGE HALF
|
|
| 21. |
F003411
|
[4] |
Cap Screw
|
|
| 22. |
F047728
|
[1] |
Pin
|
|
| 23. |
F047647
|
[1] |
Plate
|
|
| 24. |
F056081
|
[1] |
MEASURING ROLL
|
|
| 25. |
F003523
|
[1] |
Screw
|
|
| 27. |
F015796
|
[2] |
BEARING BUSHING
|
|
| 28. |
F060411
|
[1] |
Saw Unit
|
|
| |
F060409
|
[1] |
Ball Bearing
|
|
| 29. |
F054534
|
[1] |
SUPPORT RING
|
|
| 30. |
F054538
|
[1] |
Ball Bearing
|
|
| 31. |
F047715
|
[2] |
CIRCLIP
|
|
| 32. |
F059124
|
[2] |
MEASURING ROLL
|
|
| 33. |
F056681
|
[1] |
Support
|
|
| 34. |
F010749
|
[8] |
Cap Screw
|
|
| 35. |
F054531
|
[1] |
Spring Kit
|
|
