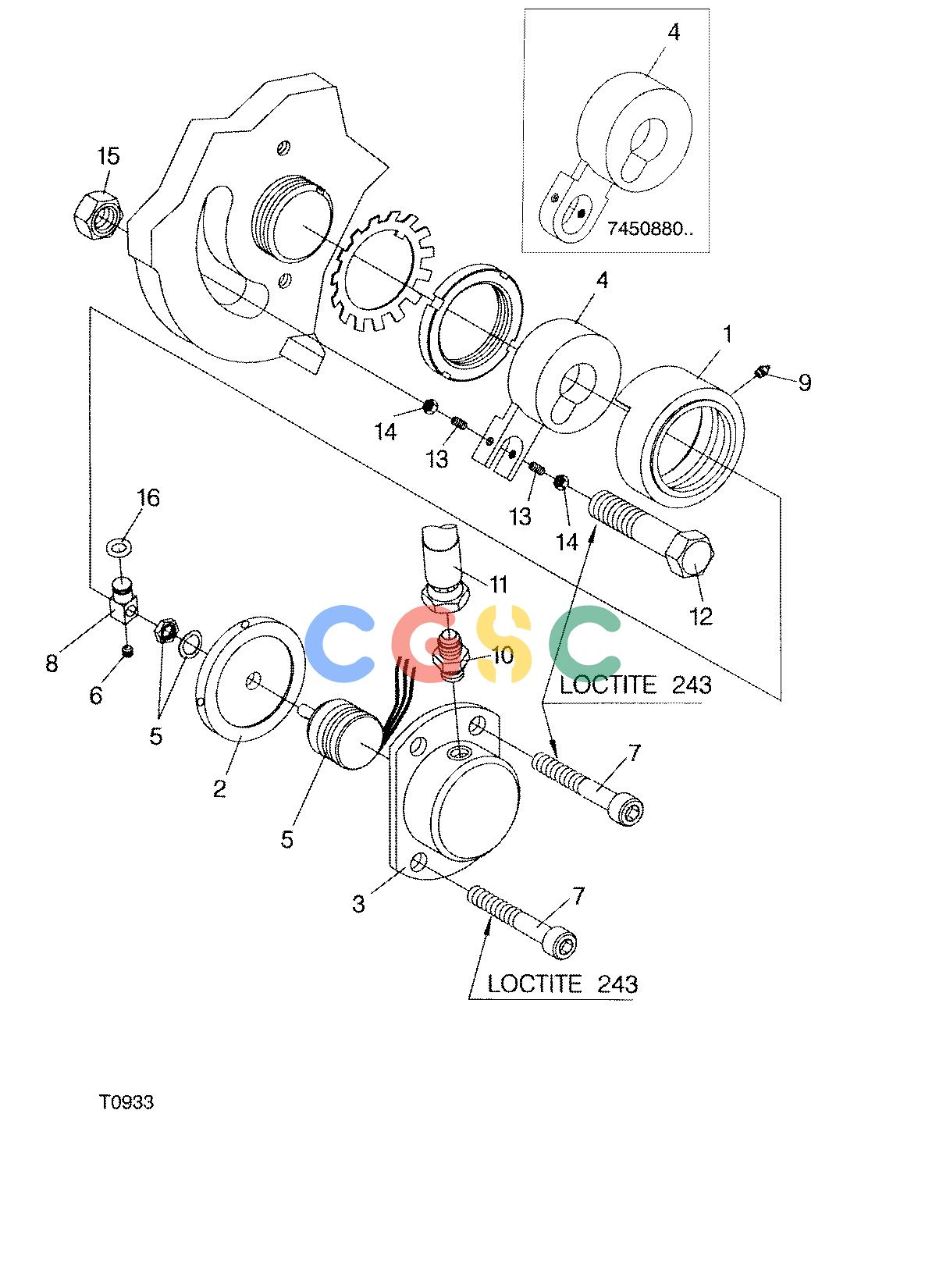

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE THICKNESS SENSOR F045006 11 14 T0933 [T0933]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
656 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047824
|
[1] |
Bushing
|
|
| 2. |
F047825
|
[1] |
Washer
|
|
| 3. |
F047826
|
[1] |
PROTECTION
|
|
| 4. |
F047827
|
[1] |
Lever
|
|
| 4. |
F054477
|
[1] |
Lever
|
|
| 5. |
F002732
|
[1] |
Sensor
|
|
| 5. |
F021413
|
[1] |
Sensor
|
|
| 6. |
F003466
|
[1] |
STOP SCREW
|
|
| 7. |
F003486
|
[2] |
Screw
|
|
| 8. |
F047711
|
[1] |
Clutch
|
|
| 9. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 10. |
F005057
|
[1] |
NIPPLE
|
|
| 11. |
F047828
|
[1] |
HOSE-ASSY
|
|
| 12. |
F003503
|
[1] |
Screw
|
|
| 13. |
F033712
|
[2] |
STOP SCREW
|
|
| 14. |
F003561
|
[2] |
Nut
|
|
| 15. |
F003591
|
[1] |
LOCKNUT
|
|
| 16. |
F047690
|
[1] |
O-Ring
|
|
| |
F033710
|
[1] |
LOCKING FLUID
|
|
