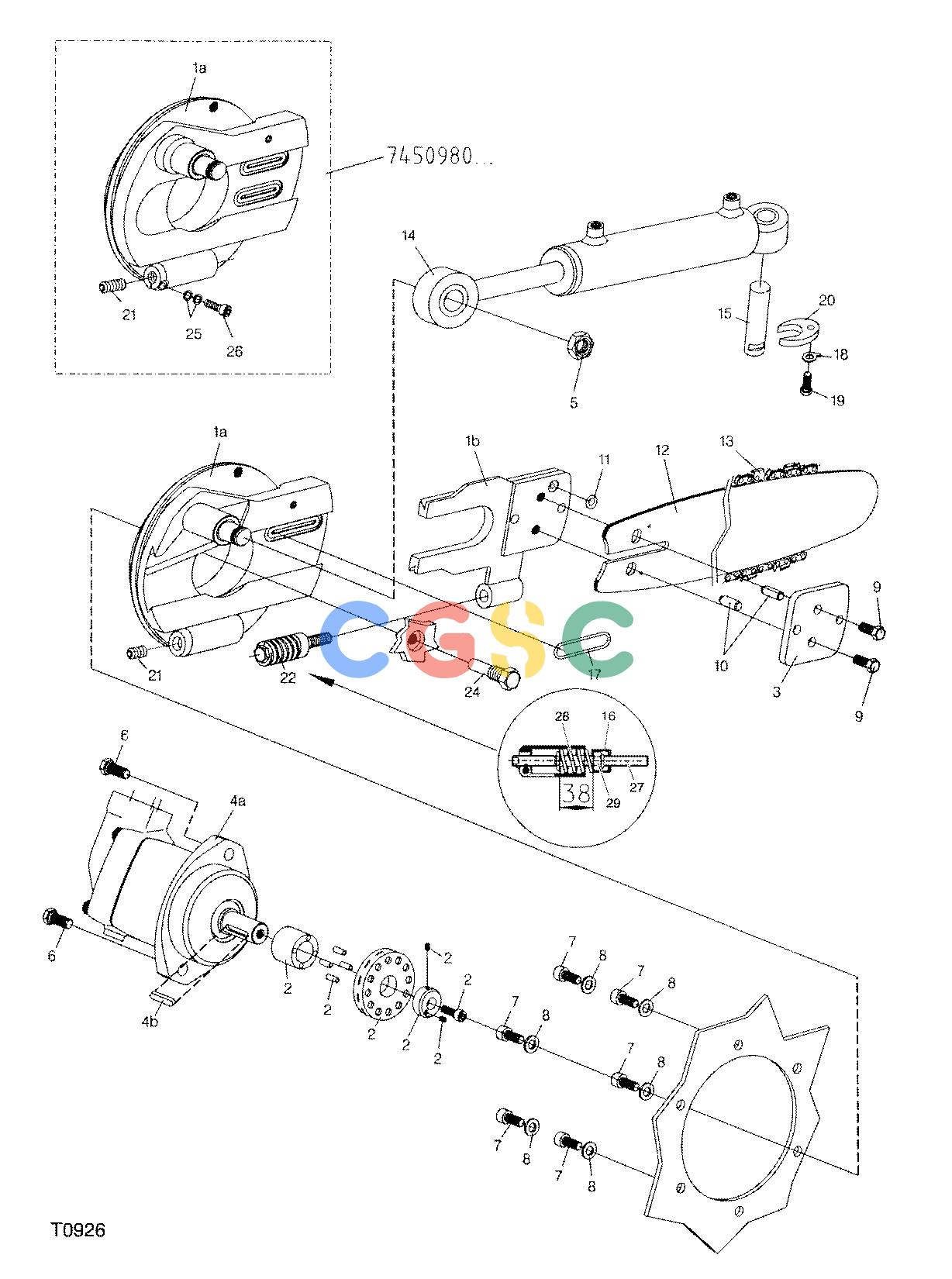

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE SAW F045006 11 6 T0926 [T0926]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1A. |
F047683
|
[1] |
Saw Unit
|
|
| 1A. |
F056905
|
[1] |
UREA ASSY
|
|
| 1B. |
F047684
|
[1] |
Bracket
|
|
| 1B. |
F056960
|
[1] |
Bracket
|
|
| 2. |
F047685
|
[1] |
Gear Kit
|
|
| 2. |
F056061
|
[1] |
Gear Kit
|
|
| 3. |
F047686
|
[1] |
FASTENING PLATE
|
|
| 4A. |
F005473
|
[1] |
Hydraulic Motor
|
|
| 4B. |
F047687
|
[1] |
Wedge
|
|
| 5. |
F047688
|
[1] |
Nut
|
|
| 6. |
F003543
|
[2] |
Screw
|
|
| 7. |
F433675
|
[6] |
Screw
|
|
| 8. |
F002920
|
[6] |
Washer
|
|
| 9. |
F021647
|
[2] |
Screw
|
|
| 10. |
F047689
|
[2] |
PIN SCREW
|
|
| 11. |
F047690
|
[1] |
O-Ring
|
|
| 12. |
F040580
|
[1] |
SWORD
|
|
| 12. |
F040581
|
[1] |
SWORD
|
|
| 12. |
F052744
|
[1] |
SWORD
|
|
| 12. |
F052745
|
[1] |
SWORD
|
|
| 13. |
F047691
|
[1] |
Saw Chain
|
|
| 13. |
F047692
|
[1] |
Saw Chain
|
|
| 13. |
F005519
|
[1] |
Saw Chain
|
|
| 13. |
F052746
|
[1] |
Saw Chain
|
|
| 14. |
F047693
|
[1] |
Hydraulic Cylinder
|
|
| 14. |
F058141
|
[1] |
Hydraulic Cylinder
|
|
| 15. |
F047658
|
[1] |
Pin
|
|
| 16. |
F056765
|
[1] |
Sleeve
|
|
| 17. |
F054540
|
[1] |
O-Ring
|
|
| 18. |
F003325
|
[1] |
Lock Washer
|
|
| 19. |
F003523
|
[1] |
Screw
|
|
| 20. |
F047647
|
[1] |
Plate
|
|
| 21. |
F047696
|
[1] |
STOP SCREW
|
|
| 21. |
F056055
|
[1] |
STOP SCREW
|
|
| 22. |
F047697
|
[1] |
CHAIN TIGHTENER
|
|
| 23. |
F047666
|
[2] |
Lock Nut
|
|
| 24. |
F054539
|
[1] |
CHAIN CATCHER
|
|
| 25. |
F008262
|
[2] |
Lock Washer
|
|
| 26. |
F003411
|
[1] |
Screw
|
|
| 27. |
F056764
|
[1] |
Screw
|
|
| 28. |
F056766
|
[1] |
Spring
|
|
| 29. |
F003590
|
[1] |
Lock Nut
|
|
