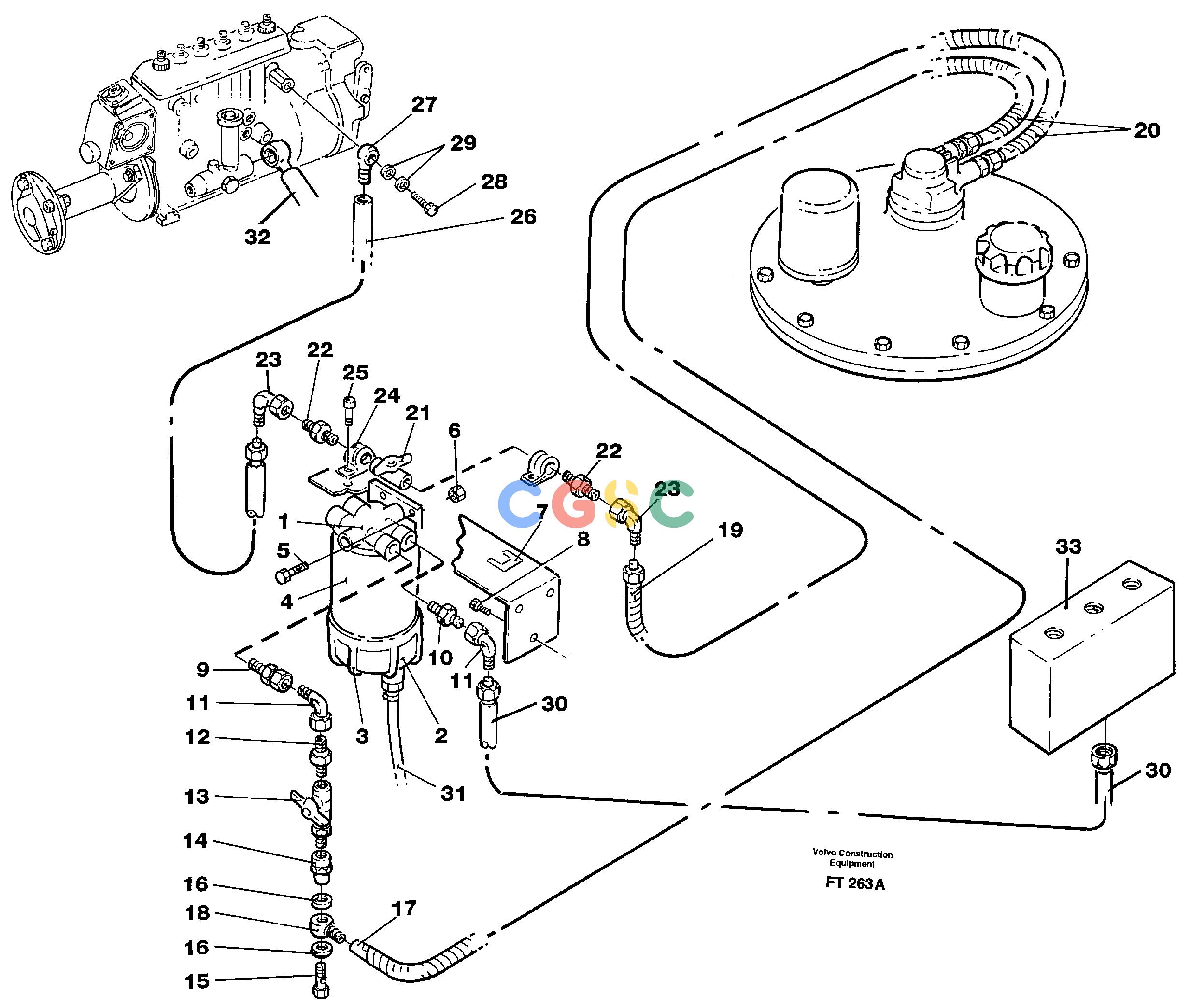

沃尔沃零件查询EC340 Water separatorSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
511 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE3943379
|
[1] |
Water separator
|
|
| 1. |
|
[1] |
Cover
|
|
| 2. |
|
[1] |
Bowl
|
|
| 3. |
|
[1] |
Level guard
|
|
| 4. |
|
[1] |
Filter
|
|
| 5. |
VOE13945444
|
[2] |
Screw
|
|
| 6. |
VOE13945408
|
[2] |
Nut
|
|
| 7. |
VOE14341074
|
[1] |
Bracket
|
|
| 8. |
VOE946440
|
[3] |
Flange screw
|
|
| 9. |
VOE14340537
|
[1] |
Fitting
|
|
| 10. |
VOE13977692
|
[1] |
Nipple
|
|
| 11. |
VOE14340787
|
[2] |
Fitting
|
|
| 12. |
VOE14012421
|
[1] |
Fitting
|
|
| 13. |
VOE14214401
|
[1] |
Ball cock
|
|
| 14. |
VOE14267993
|
[2] |
Nipple
|
|
| 15. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 16. |
VOE13969011
|
[2] |
Gasket
|
|
| 17. |
VOE14265319
|
[1] |
Tube
|
|
| 18. |
VOE977753
|
[1] |
Banjo nipple
|
|
| 19. |
VOE14266734
|
[1] |
Tube
|
|
| 20. |
VOE14214040
|
[REQ] |
Strip
|
L = 2 x 50MM
|
| 21. |
VOE14214401
|
[1] |
Ball cock
|
|
| 22. |
VOE14012421
|
[2] |
Fitting
|
|
| 23. |
VOE14340787
|
[2] |
Fitting
|
|
| 24. |
VOE952630
|
[2] |
Clamp
|
|
| 25. |
VOE13946501
|
[2] |
Screw
|
|
| 26. |
VOE14265345
|
[1] |
Tube
|
|
| 27. |
VOE968176
|
[1] |
Banjo nipple
|
|
| 28. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 29. |
VOE13969011
|
[2] |
Gasket
|
|
| 30. |
VOE14343728
|
[1] |
Tube
|
|
| 31. |
VOE949908
|
[REQ] |
Hose
|
L = 250MM
|
| 32. |
|
[1] |
Hose
|
|
| 33. |
|
[1] |
Valve
|
|
