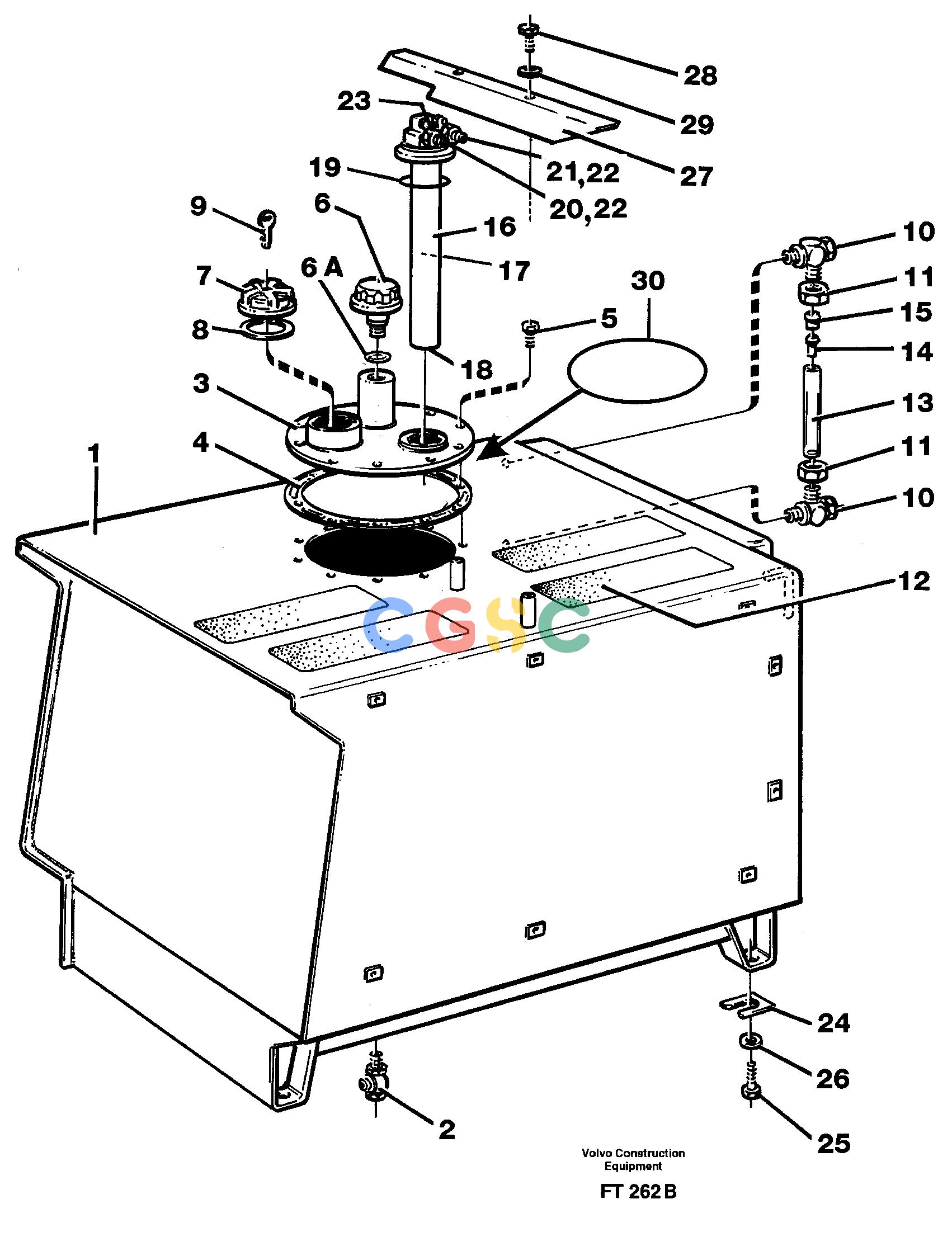

沃尔沃零件查询EC340 Fuel tank with fitting partsSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14267491
|
[1] |
Fuel tank
|
|
| 2. |
VOE11000127
|
[1] |
Drain cock
|
|
| 3. |
VOE14341790
|
[1] |
Cover
|
|
| 4. |
VOE14267493
|
[1] |
Gasket
|
|
| 5. |
VOE60113082
|
[10] |
Flange screw
|
|
| 6. |
VOE14267423
|
[1] |
Aeration filter
|
PROD NO. 14301000=
SER NO - 1063
|
| |
VOE14343765
|
[1] |
Air filter
|
PROD NO. 14301000=
SER NO 1064 -
|
| |
VOE11703639
|
[1] |
Filter insert
|
|
| 6A. |
VOE925063
|
[1] |
O-ring
|
|
| 7. |
VOE1189577
|
[1] |
Filler cap
|
|
| 8. |
VOE1698164
|
[1] |
Gasket
|
|
| 9. |
VOE11991396
|
[2] |
Key
|
|
| 10. |
VOE14026430
|
[2] |
Banjo fitting
|
|
| 11. |
VOE14012446
|
[2] |
Nut
|
|
| 12. |
VOE14055525
|
[4] |
Slip protection
|
|
| 13. |
VOE14013482
|
[1] |
Polyamid Tube
|
|
| 14. |
VOE14012507
|
[2] |
Insert pipe
|
|
| 15. |
VOE956968
|
[2] |
Ferrule
|
|
| 16. |
VOE14266422
|
[1] |
Level sensor
|
B9
|
| 17. |
VOE11702639
|
[1] |
Float
|
|
| 18. |
VOE11702642
|
[1] |
Plug
|
|
| 19. |
VOE8151926
|
[1] |
O-ring
|
|
| 20. |
VOE11705379
|
[1] |
Nipple
|
M 16
|
| 21. |
VOE11705380
|
[1] |
Nipple
|
M 18
|
| 22. |
VOE11705381
|
[2] |
O-ring
|
|
| 23. |
VOE11702643
|
[1] |
Plug
|
|
| 24. |
VOE14343875
|
[REQ] |
Spacer
|
THICK = 2MM
|
| 24. |
VOE14343877
|
[REQ] |
Spacer
|
THICK = 2,5MM
|
| 25. |
VOE60113129
|
[4] |
Flange screw
|
|
| 26. |
VOE11055609
|
[4] |
Plain washer
|
|
| 27. |
VOE14342446
|
[1] |
Shield
|
SER NO - 1199
|
| 28. |
VOE946440
|
[2] |
Flange screw
|
SER NO - 1199
|
| 29. |
VOE13960141
|
[2] |
Washer
|
SER NO - 1199
|
| 30. |
VOE14345251
|
[10] |
O-ring
|
|
