神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (08-002) - CYLINDER HEAD REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
885 次

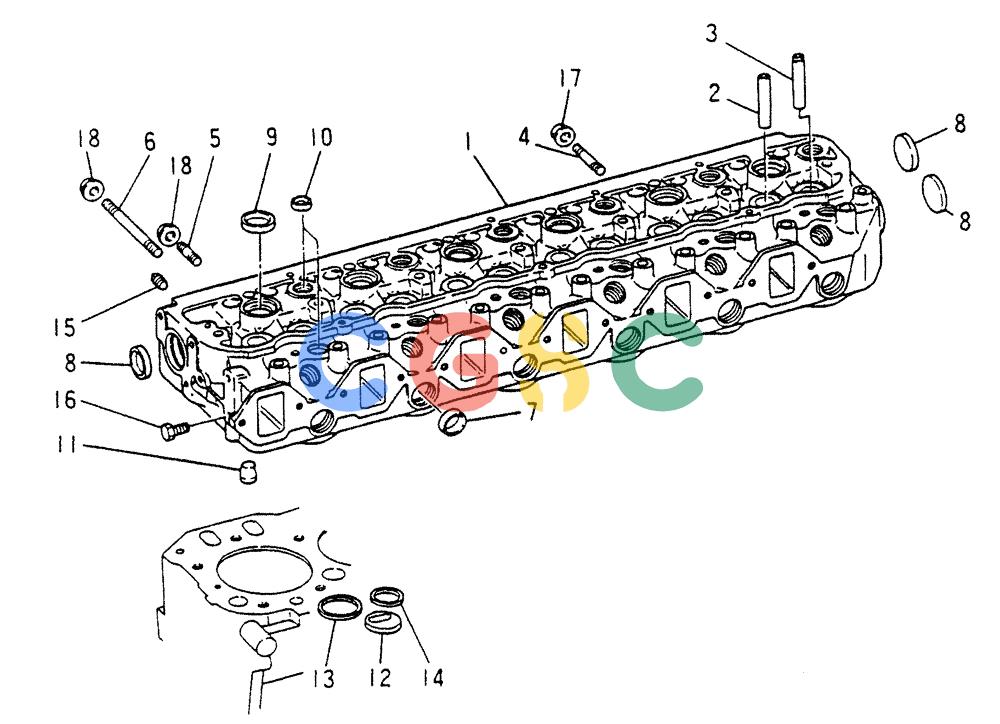

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-18. | VAME999066 | [1] | CYLINDER HEAD | KOBASSY W/OIL COOLER |
| 2. | VAME001179 | [6] | VALVE GUIDE | KOBINLET |
| 3. | VAME001188 | [6] | VALVE GUIDE | KOBEXH |
| 4. | VAMF407006 | [6] | SCREW | KOBSTUD, FOR EXH MANIF 10X25 |
| 5. | VAMH002127 | [11] | STUD | KOBSTUD, FOR WATER OUTLET PIPE 8X40 |
| 6. | VAMH002106 | [1] | STUD | KOBSTUD, FOR WATER OUTLET PIPE 8X70 |
| 7. | VAMS666136 | [6] | PLUG | KOBCAP, SEALING 22 |
| e. | VAMS666140 | [3] | PLUG | KOBCAP, SEALING 35 |
| 9. | VAMS666139 | [6] | CAP | KOBCAP, SEALING 30 |
| 10. | VAMS666136 | [12] | PLUG | KOBCAP, SEALING 22 |
| 11. | VAME011003 | [7] | DIRECTOR | |
| 12. | VAME001080 | [6] | JET | KOBJET, COMBUSTION CHAMBER STD |
| 13. | VAME001071 | [6] | VALVE INSERT, VALVE SEAT INLET | VALVE INSERT, VALVE SEAT INLET |
| 14. | VAME001074 | [6] | INSERT INSERT, VALVE SEAT EXH | INSERT INSERT, VALVE SEAT EXH |
| 15. | VAMH037237 | [1] | PLUG | KOBPLUG, TAPER |
| 16. | VAMH000518 | [1] | BOLT BOLT, SEAL 8X12 | BOLT BOLT, SEAL 8X12 |
| 17. | VAMH004054 | [6] | NUT | KOBFOR EXH MANIF 10 Superseded by part number: 134868A1 |
| 18. | VAMF434104 | [12] | NUT | KOBNUT, FOR WATER OUTLET PIPE 8 |
