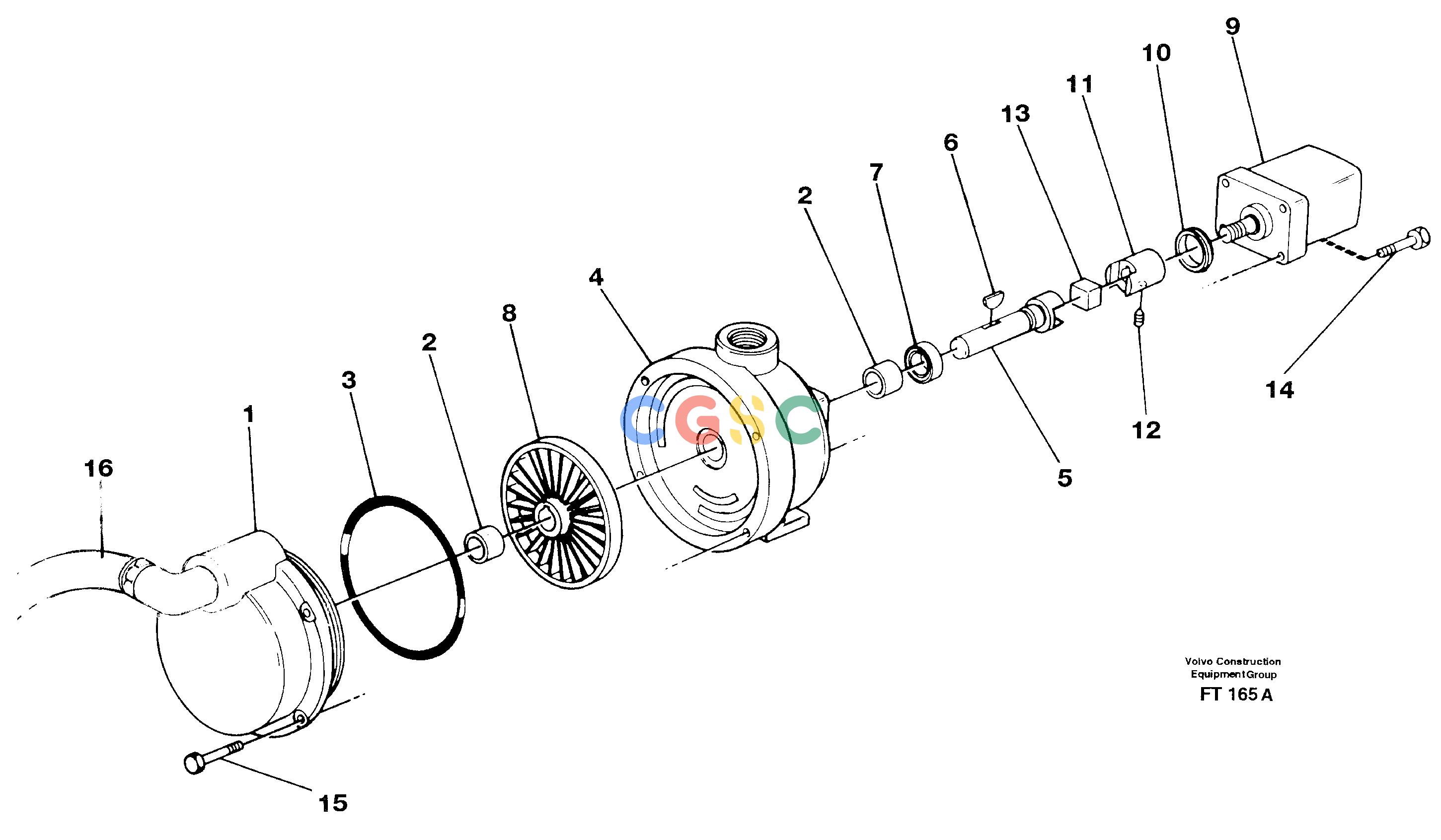

沃尔沃零件查询EC340 Fuel pumpSER NO 1001- NoneNone14302532Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14244810
|
[1] |
Filling Pump
|
|
| 1. |
VOE14244804
|
[1] |
End plate
|
|
| 2. |
VOE14042052
|
[2] |
Bushing
|
|
| 3. |
VOE925265
|
[1] |
O-ring
|
|
| 4. |
VOE14244805
|
[1] |
End plate
|
|
| 5. |
VOE14244807
|
[1] |
Pump shaft
|
|
| 6. |
VOE14013401
|
[1] |
Wedge
|
|
| 7. |
VOE14212918
|
[1] |
Radial Seal
|
|
| 8. |
VOE14041861
|
[1] |
Pump rotor
|
|
| 9. |
VOE14012805
|
[1] |
Hydraulic motor
|
|
| 10. |
VOE14244808
|
[1] |
Ring
|
|
| 11. |
VOE14247430
|
[1] |
Clutch half
|
|
| 12. |
VOE14052797
|
[1] |
Set screw
|
|
| 13. |
VOE14041864
|
[1] |
Cube
|
|
| 14. |
VOE60111867
|
[4] |
Hexagon screw
|
|
| 15. |
VOE955297
|
[4] |
Hexagon screw
|
|
| 16. |
|
[1] |
Oil hose
|
|
