神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-001) - FUEL INJECTION PUMP GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
799 次

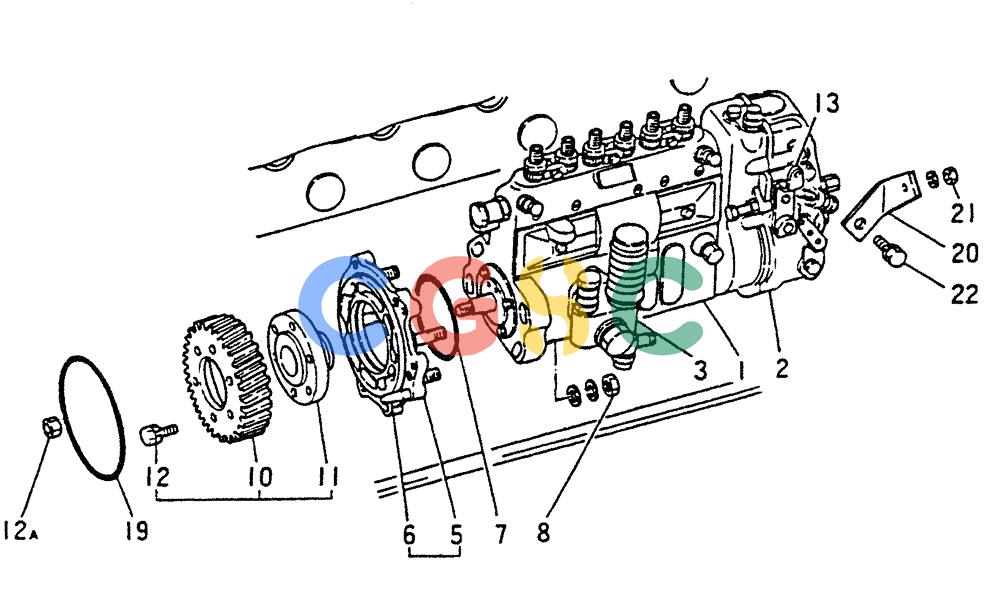

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-8. | VAME008329 | [1] | INJ, PUMP GENERAL ASSY (ND) | INJ, PUMP GENERAL ASSY (ND) |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONINJECTION PUMP ASSY A TYPE (ME008312) CF GN040-131A |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONGOVERNOR ASSY RSV TYPE |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONFUEL FEED PUMP ASSY |
| 5-6. | VAME006130 | [1] | PLATE | KOBASSY |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, FLANGE |
| 6. | VAME006031 | [1] | BAR, GUIDE | |
| 7. | VAMH035501 | [1] | O-RING | KOBO-RING |
| 8. | VAMF430122 | [4] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [4] | WASHER | KOBWASHER, SPG 10 |
| . . | VAMF450006 | [4] | NUT | KOBWASHER, PLAIN 10 Superseded by part number: 133247A1 |
| 9. | VAME006077 | [1] | RADIO | KOBAUTOMATIC TIMER (FOR M5 ONLY) CF GN040-134A |
| 10-12. | VAME008334 | [1] | INJECTION PUMP GEAR ASSY (FOR M9 ONLY) | |
| 10. | VAME008304 | [1] | GEAR, I/P Z=40 (FOR M9 ONLY) | |
| 11. | VAME008335 | [1] | COUPLING (FOR M9 ONLY) | COUPLING (FOR M9 ONLY) |
| 12. | VAMF241227 | [6] | BOLT | KOBBOLT, W/WSR 6X20 (FOR M9 ONLY) |
| 12A. | VAME008351 | [1] | NUT, COUPLING (FOR M9 ONLY) ND 9490502450 | |
| 13. | VA3176183100 | [1] | LEVER GOV (INST OF KN66) GN040-132A | |
| 19. | VA3136101300 | [1] | O-RING | KOBO-RING |
| 20. | VAME008344 | [1] | STAY I/P | STAY I/P |
| 21. | VAMF430005 | [1] | NUT | KOBNUT 8 Superseded by part number: VAF230008000 |
| . . | VAMF450405 | [1] | WASHER | KOBWASHER, SPR 8 Superseded by part number: 132502A1 |
| . . | VAMF450005 | [1] | WASHER | KOBPLAIN 8 |
| 22. | VAMH000733 | [1] | BOLT BOLT, FLANGE 12X20 | BOLT BOLT, FLANGE 12X20 |
