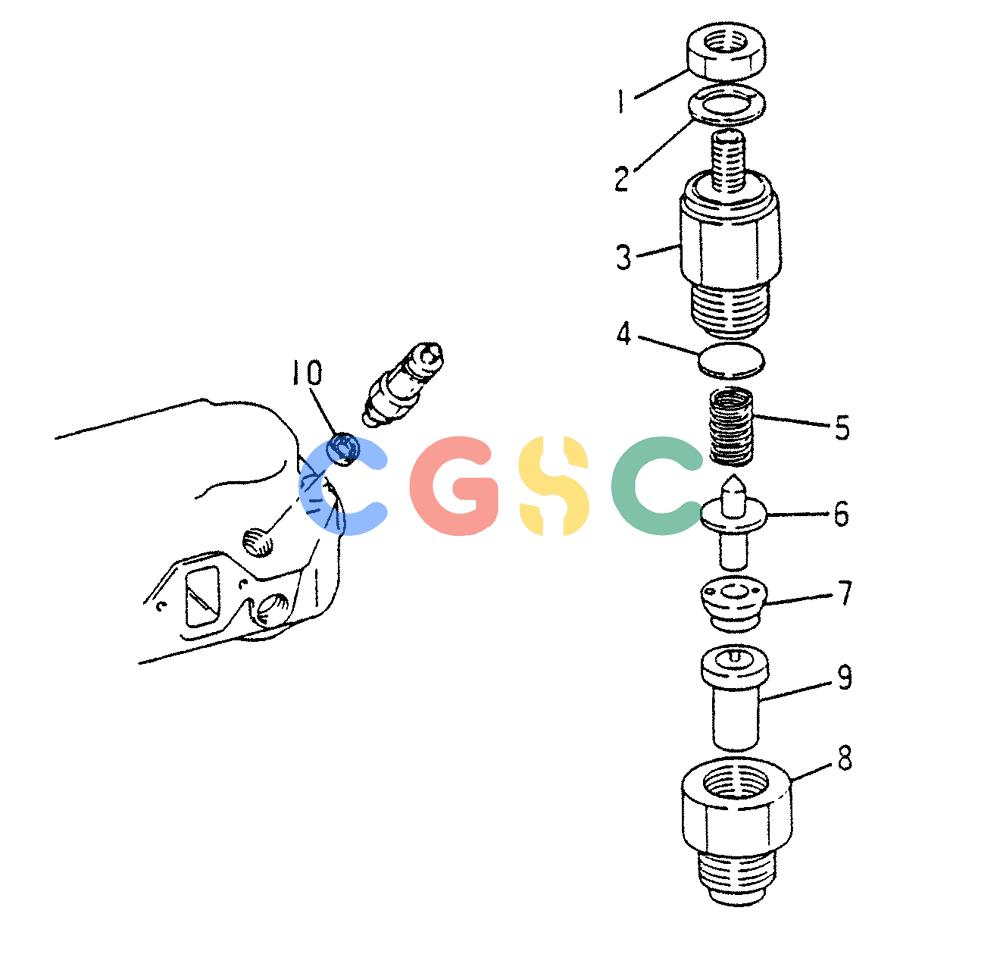

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-005) - FUEL INJECTION NOZZLE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
173 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VAME016506 | [6] | NOZZLE ASSY (ND 0935001830) | NOZZLE ASSY (ND 0935001830) |
| 1-8. | VAME016507 | [6] | NOZZLE HOLDER ASSY (ND 0931001830) | |
| 1. | VA9490502480 | [6] | NUT | KOBNUT |
| 2. | VA0932450110 | [6] | WASHER WASHER | WASHER WASHER |
| 3. | NSS | [6] | NOT SOLD SEPARAT | CONBODY, NOZZLE HOLDER |
| 4. | VA0931750010 | [1] | WASHER T=1.00 | |
| 4. | VA0931750020 | [1] | WASHER T=1.05 | |
| 4. | VA0931750190 | [1] | WASHER T=1.90 (0.05 MM INTERVAL) | |
| 4. | VA0931750200 | [1] | WASHER T=1.95 (0.05 MM INTERVAL) | |
| 5. | VA0931270020 | [6] | SPRING, PRESS. | |
| 6. | VA0931210030 | [6] | PIN, PRESS. | |
| 7. | VA0931740010 | [6] | PIECE, DISTANCE | |
| 8. | VA0931640420 | [6] | NUT NUT, RETAINING | NUT NUT, RETAINING |
| 9. | VAME023682 | [6] | NOZZLE | KOB(ND 0934000620) |
| 10. | VAME001017 | [6] | GASKET | KOB |
