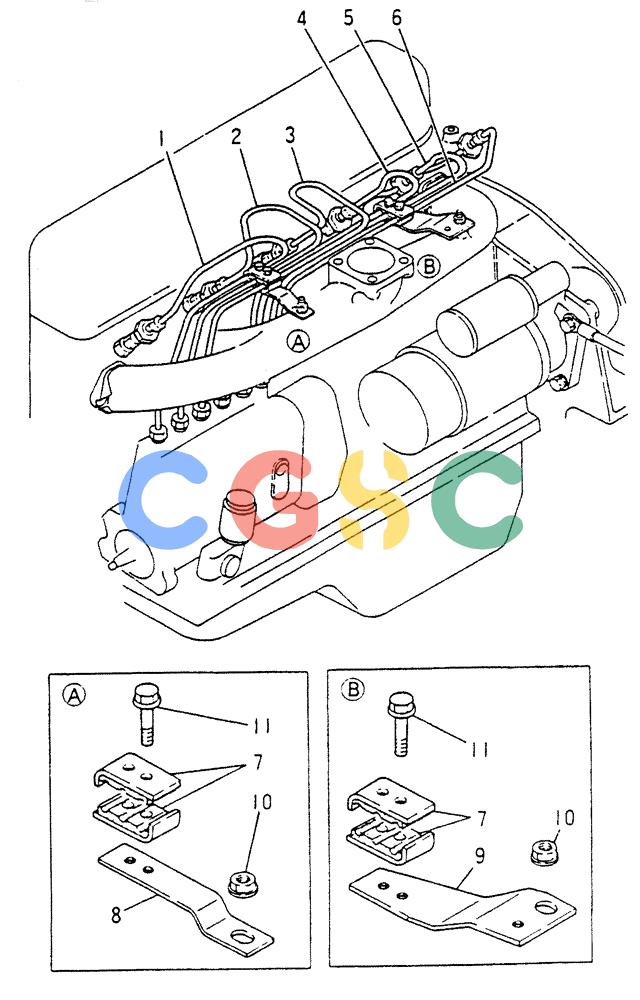

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-004) - FUEL INJECTION PIPE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
612 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3176123100 | [1] | PIPE NO1 PIPE, INJECTION NO.1 | PIPE NO1 PIPE, INJECTION NO.1 |
| 2. | VA3176123200 | [1] | PIPE | KOBPIPE, INJECTION NO.2 |
| 3. | VA3176123300 | [1] | PIPE | KOBPIPE, INJECTION NO.3 |
| 4. | VA3176123400 | [1] | PIPE | KOBPIPE, INJECTION NO.4 |
| 5. | VA3176123500 | [1] | PIPE | KOBPIPE, INJECTION NO.5 |
| 6. | VA3176123600 | [1] | PIPE | KOBPIPE, INJECTION NO.6 |
| 6. | VA3176109100 | [1] | PIPE INJECTION PIPE, INJECTION STRAIGHT | PIPE INJECTION PIPE, INJECTION STRAIGHT |
| 7. | VAMH021250 | [4] | CLAMP | KOBCLAMP, A |
| 8. | VAME930304 | [1] | STAY, A | |
| 9. | VAME930305 | [1] | STAY, B | |
| 10. | VAMF434104 | [2] | NUT | KOBNUT, FLANGE |
| 11. | VAMF140009 | [4] | SCREW | KOBBOLT, FLANGE 6X25 Superseded by part number: 134719A1 |
