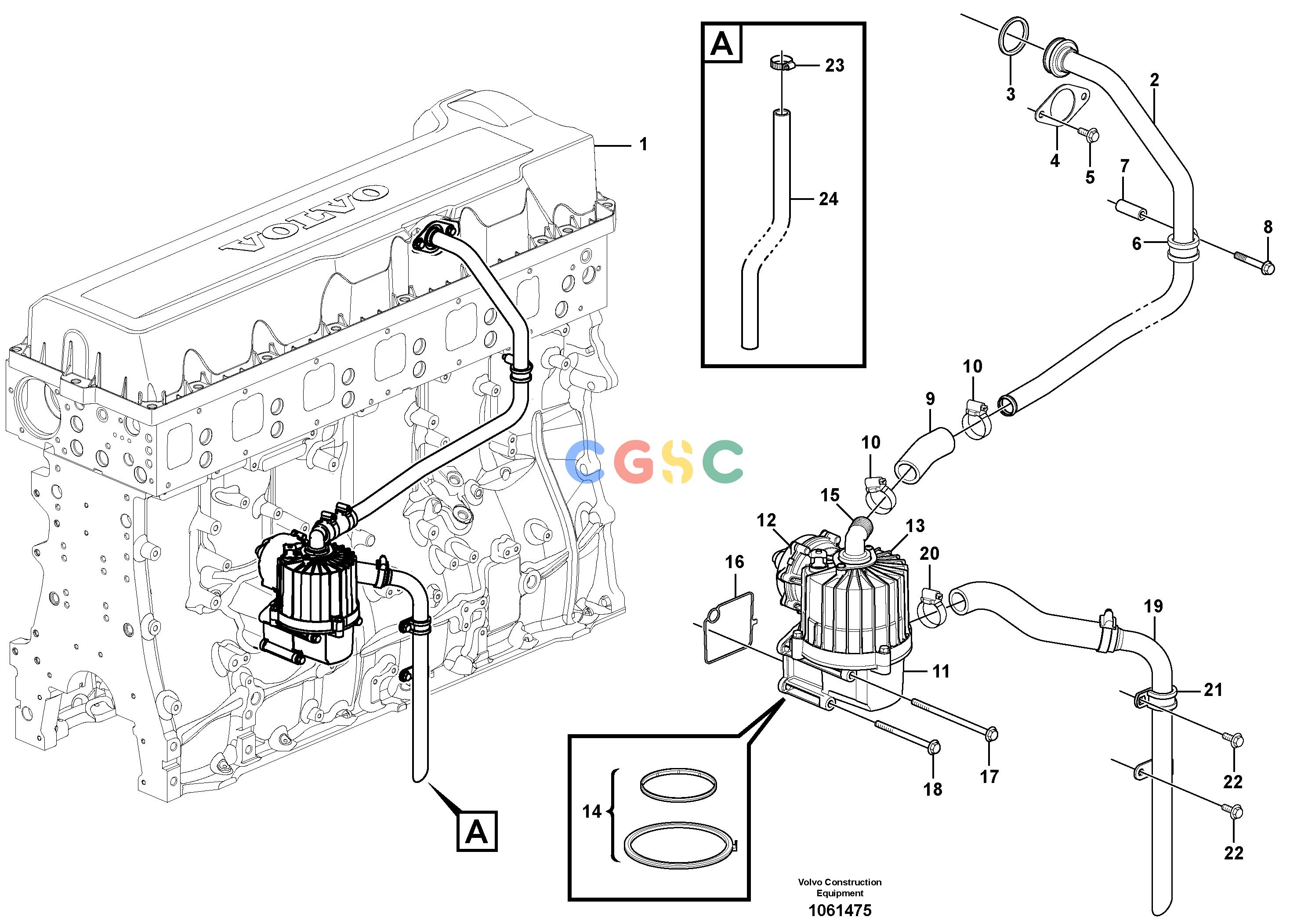

沃尔沃零件查询EC340D Crankcase ventilationS/N 210001-2104828289023, 8289891-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
169 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Valve Cover
|
|
| 2. |
VOE3595090
|
[1] |
Breather pipe
|
|
| 3. |
VOE21532258
|
[1] |
Sealing ring
|
|
| 4. |
VOE3849250
|
[1] |
Flange
|
|
| 5. |
VOE946440
|
[2] |
Flange screw
|
|
| 6. |
VOE13977600
|
[1] |
Clamp
|
|
| 7. |
VOE807257
|
[1] |
Spacer sleeve
|
|
| 8. |
VOE13965216
|
[1] |
Screw
|
|
| 9. |
VOE20580933
|
[1] |
Hose
|
L = 80 mm
|
| 10. |
VOE994560
|
[2] |
Hose clamp
|
|
| 11. |
VOE21122541
|
[1] |
Oil separator
|
|
| 12. |
VOE20586427
|
[1] |
Valve
|
|
| 13. |
VOE21475228
|
[1] |
Spare parts kit
|
|
| 14. |
VOE21475236
|
[1] |
Spare parts kit
|
|
| 15. |
VOE20586428
|
[1] |
Nipple
|
|
| 16. |
VOE20532891
|
[1] |
Gasket
|
|
| 17. |
VOE968892
|
[2] |
Flange screw
|
|
| 18. |
VOE13965184
|
[2] |
Flange screw
|
|
| 19. |
VOE21196220
|
[1] |
Pipe
|
|
| 20. |
VOE994560
|
[1] |
Hose clamp
|
|
| 21. |
VOE13977600
|
[1] |
Clamp
|
|
| 22. |
VOE946440
|
[2] |
Flange screw
|
|
| 23. |
SA9312-10175
|
[1] |
Hose clamp
|
|
| 24. |
VOE14881962
|
[1] |
Hose
|
|
