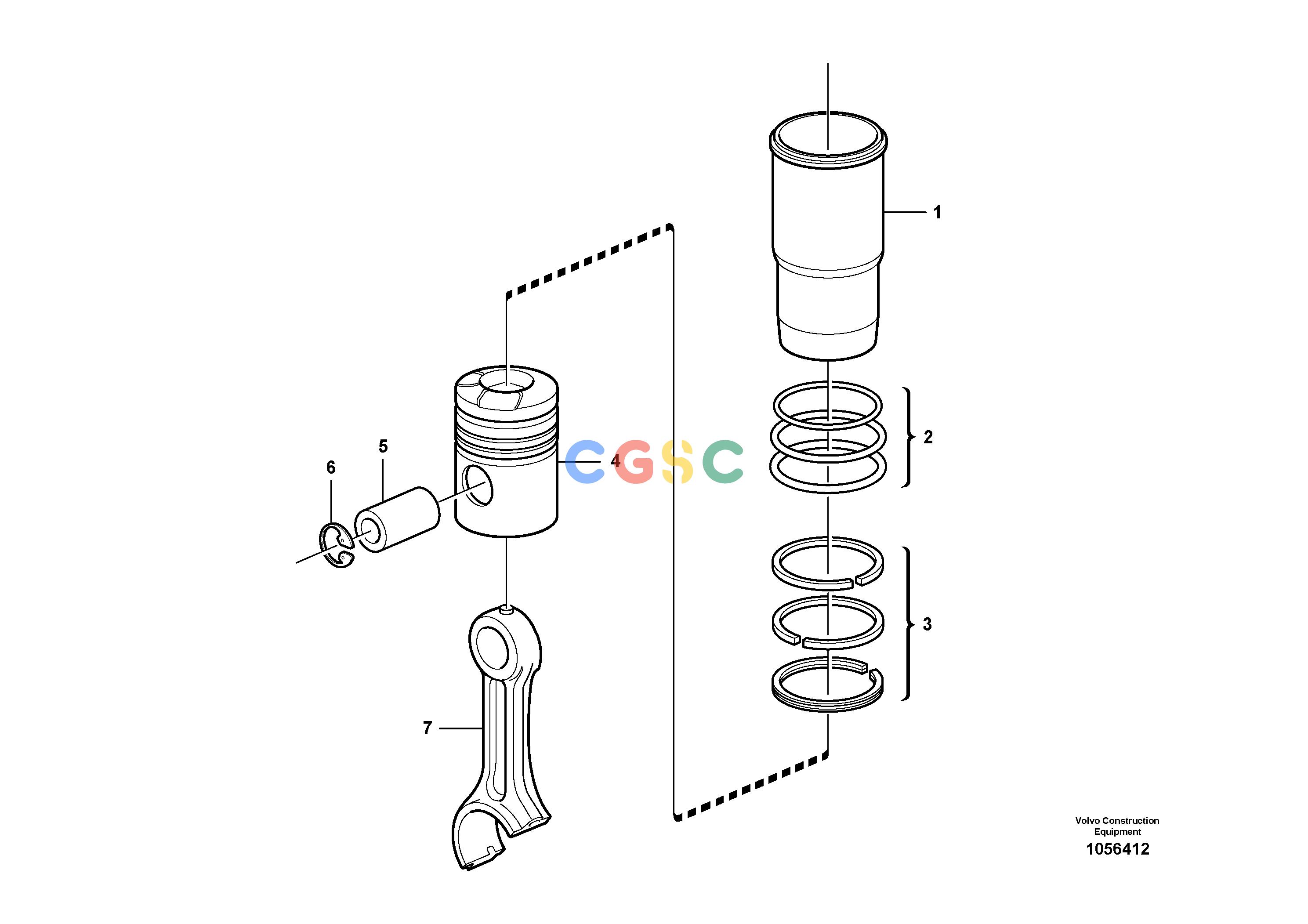

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21330684
|
[6] |
Cylinder liner kit
|
|
| 2. |
VOE270950
|
[6] |
Sealing kit
|
|
| |
VOE470922
|
[6] |
Sealing ring
|
UPPER
|
| |
VOE470190
|
[12] |
Sealing ring
|
CENTRE
|
| |
VOE270950
|
[6] |
Sealing kit
|
LOWER
|
| 3. |
VOE21253763
|
[6] |
Piston ring kit
|
|
| |
VOE21251596
|
[6] |
Compression ring
|
UPPER
|
| |
VOE20590309
|
[6] |
Compression ring
|
LOWER
|
| |
VOE20568155
|
[6] |
Oil scraper ring
|
|
| 4. |
|
[6] |
Piston
|
|
| 5. |
|
[6] |
Piston Pin
|
|
| 6. |
VOE914531
|
[12] |
Snap ring
|
|
| 7. |
|
[6] |
Connecting rod
|
|
