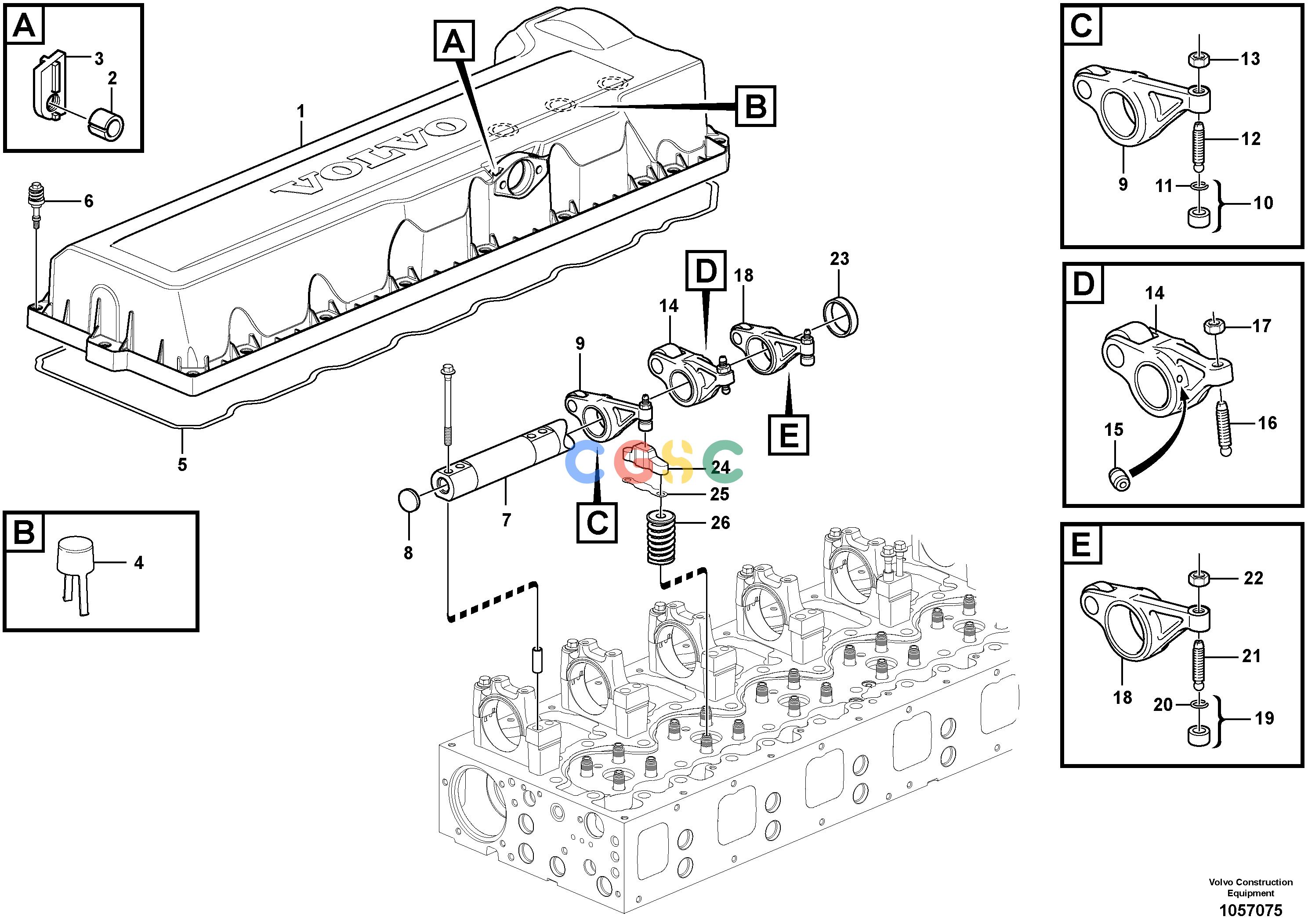

沃尔沃零件查询EC340D Valve mechanismS/N 210001-2104828289023, 8289891-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
883 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE20740683
|
[1] |
Valve cover
|
|
| 1. |
VOE20745844
|
[1] |
Valve cover
|
|
| 2. |
VOE20450320
|
[4] |
Spacer sleeve
|
|
| 3. |
VOE24427518
|
[4] |
Nut washer
|
|
| 4. |
VOE8131751
|
[3] |
Draining bowl
|
|
| 5. |
VOE20538793
|
[1] |
Sealing strip
|
|
| 6. |
VOE22859766
|
[20] |
Flange screw
|
|
| 7. |
VOE21534995
|
[1] |
Rocker arm shaft
|
EPG
|
| 8. |
VOE980176
|
[2] |
Expansion plug
|
|
| 9. |
VOE21260905
|
[6] |
Rocker arm
|
INLET
|
| 10. |
VOE21054149
|
[6] |
Ball socket
|
|
| 11. |
VOE944364
|
[6] |
O-ring
|
|
| 12. |
VOE1546458
|
[6] |
Ball stud
|
|
| 13. |
VOE13946911
|
[6] |
Nut
|
|
| 14. |
VOE21266310
|
[6] |
Rocker arm
|
INJECTOR
|
| 15. |
VOE3964817
|
[12] |
Jet
|
|
| 16. |
VOE1546775
|
[6] |
Ball stud
|
|
| 17. |
VOE1677396
|
[6] |
Hexagon nut
|
|
| 18. |
VOE21024789
|
[6] |
Rocker arm
|
EPG
|
| 19. |
VOE21054149
|
[6] |
Ball socket
|
|
| 20. |
VOE944364
|
[6] |
O-ring
|
|
| 21. |
VOE1546458
|
[6] |
Ball stud
|
|
| 22. |
VOE13946911
|
[6] |
Nut
|
|
| 23. |
VOE21628455
|
[6] |
Spacer sleeve
|
|
| 24. |
VOE3183207
|
[12] |
Valve cap
|
|
| |
VOE11712372
|
[1] |
Shim kit
|
5 pcs of each
|
| 25. |
VOE1547967
|
[REQ] |
Shim
|
THICK = 2,00 mm
|
| 25. |
VOE1547968
|
[REQ] |
Shim
|
THICK = 2,05 mm
|
| 25. |
VOE1547969
|
[REQ] |
Shim
|
THICK = 2,10 mm
|
| 25. |
VOE1547970
|
[REQ] |
Shim
|
THICK = 2,15 mm
|
| 25. |
VOE1547971
|
[REQ] |
Shim
|
THICK = 2,20 mm
|
| 25. |
VOE1547972
|
[REQ] |
Shim
|
THICK = 2,25 mm
|
| 25. |
VOE1547973
|
[REQ] |
Shim
|
THICK = 2,30 mm
|
| 25. |
VOE1547974
|
[REQ] |
Shim
|
THICK = 2,35 mm
|
| 25. |
VOE1547975
|
[REQ] |
Shim
|
THICK = 2,40 mm
|
| 25. |
VOE1547976
|
[REQ] |
Shim
|
THICK = 2,45 mm
|
| 25. |
VOE1547977
|
[REQ] |
Shim
|
THICK = 2,50 mm
|
| 25. |
VOE1547978
|
[REQ] |
Shim
|
THICK = 2,55 mm
|
| 25. |
VOE1547979
|
[REQ] |
Shim
|
THICK = 2,60 mm
|
| 25. |
VOE1547980
|
[REQ] |
Shim
|
THICK = 2,65 mm
|
| 25. |
VOE1547981
|
[REQ] |
Shim
|
THICK = 2,70 mm
|
| 25. |
VOE1547982
|
[REQ] |
Shim
|
THICK = 2,75 mm
|
| 25. |
VOE1547983
|
[REQ] |
Shim
|
THICK = 2,80 mm
|
| 25. |
VOE1547984
|
[REQ] |
Shim
|
THICK = 2,85 mm
|
| 25. |
VOE1677347
|
[REQ] |
Shim
|
THICK = 2,90 mm
|
| 25. |
VOE1677348
|
[REQ] |
Shim
|
THICK = 2,95 mm
|
| 25. |
VOE1677349
|
[REQ] |
Shim
|
THICK = 3,00 mm
|
| 25. |
VOE1677350
|
[REQ] |
Shim
|
THICK = 3,05 mm
|
| 25. |
VOE1677351
|
[REQ] |
Shim
|
THICK = 3,10 mm
|
| 25. |
VOE1677352
|
[REQ] |
Shim
|
THICK = 3,15 mm
|
| 25. |
VOE1677353
|
[REQ] |
Shim
|
THICK = 3,20 mm
|
| 25. |
VOE1677354
|
[REQ] |
Shim
|
THICK = 3,25 mm
|
| 25. |
VOE1677355
|
[REQ] |
Shim
|
THICK = 3,30 mm
|
| 25. |
VOE1677356
|
[REQ] |
Shim
|
THICK = 3,35 mm
|
| 25. |
VOE1677357
|
[REQ] |
Shim
|
THICK = 3,40 mm
|
| 25. |
VOE1677358
|
[REQ] |
Shim
|
THICK = 3,45 mm
|
| 25. |
VOE1677359
|
[REQ] |
Shim
|
THICK = 3,50 mm
|
| 25. |
VOE1677360
|
[REQ] |
Shim
|
THICK = 3,55 mm
|
| 25. |
VOE1677361
|
[REQ] |
Shim
|
THICK = 3,60 mm
|
| 25. |
VOE1677362
|
[REQ] |
Shim
|
THICK = 3,65 mm
|
| 25. |
VOE1677363
|
[REQ] |
Shim
|
THICK = 3,70 mm
|
| 25. |
VOE1677364
|
[REQ] |
Shim
|
THICK = 3,75 mm
|
| 25. |
VOE1677365
|
[REQ] |
Shim
|
THICK = 3,80 mm
|
| 25. |
VOE1677366
|
[REQ] |
Shim
|
THICK = 3,85 mm
|
| 25. |
VOE1677367
|
[REQ] |
Shim
|
THICK = 3,90 mm
|
| 25. |
VOE1677368
|
[REQ] |
Shim
|
THICK = 3,95 mm
|
| 26. |
|
[12] |
Valve Spring
|
|
