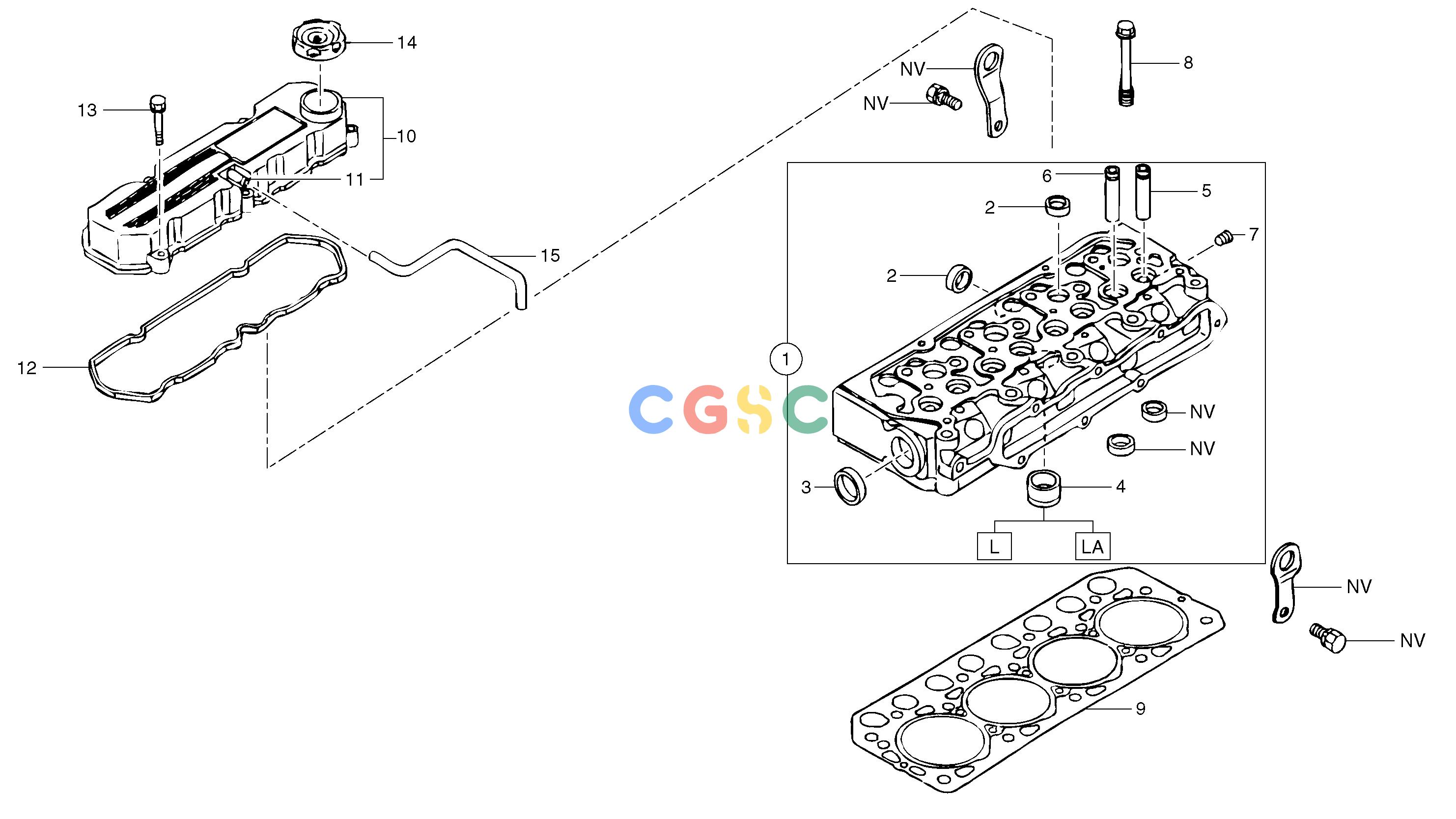

沃尔沃零件查询EC35 Cylinder headTYPE 283283.10151 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7418182
|
[1] |
Cylinder head
|
|
| 2. |
PJ7410144
|
[7] |
Plug
|
|
| 3. |
PJ7415329
|
[1] |
Plug
|
|
| 4. |
PJ7415447
|
[REQ] |
Combustion chamber
|
"L"
|
| 4. |
PJ7418180
|
[REQ] |
Combustion chamber
|
"LA"
|
| 5. |
PJ7417803
|
[4] |
Giude
|
|
| 6. |
PJ7417802
|
[4] |
Giude
|
|
| 7. |
PJ7410691
|
[1] |
Plug
|
|
| 8. |
PJ7415444
|
[14] |
Bolt
|
|
| 9. |
PJ7415446
|
[1] |
Cylinder head gasket
|
|
| 10. |
PJ7415449
|
[1] |
Cover
|
|
| 11. |
|
[1] |
Nipple
|
ORDER ITEM NO 10
|
| 12. |
PJ7415453
|
[1] |
Seal
|
|
| 13. |
PJ7416431
|
[5] |
Attachment kit
|
|
| 14. |
PJ7410054
|
[1] |
Filler cap
|
|
| 15. |
PJ7415350
|
[1] |
Tube
|
|
