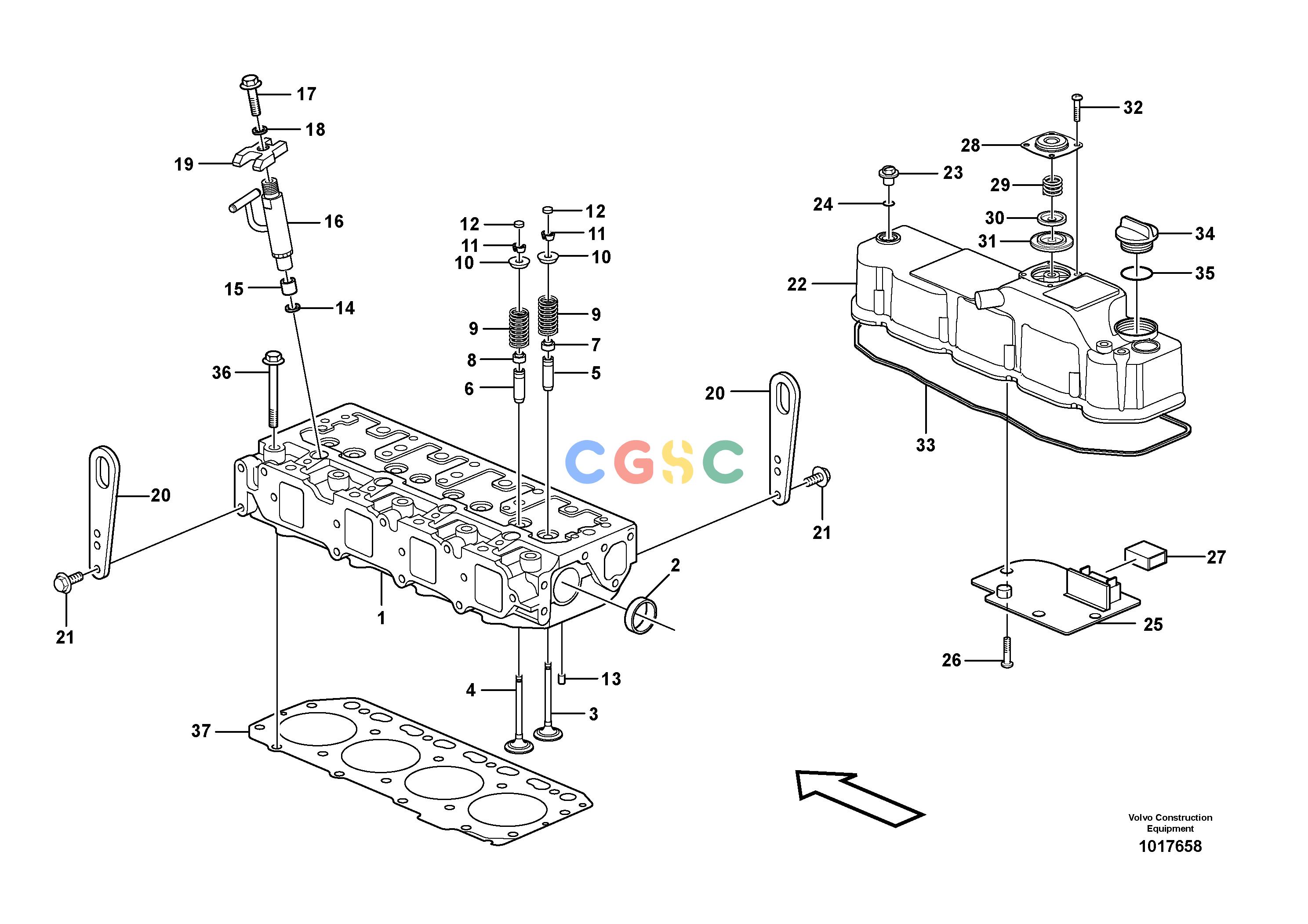

沃尔沃零件查询EC35 Cylinder headTYPE 283.-283.18963NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
321 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11715312
|
|
Cylinder head
|
|
| 2. |
VOE11714379
|
|
Plug
|
|
| 3. |
VOE11715313
|
|
Inlet valve
|
|
| 4. |
VOE11714710
|
|
Valve
|
|
| 5. |
VOE11714708
|
|
Valve guide
|
|
| 6. |
VOE11714713
|
|
Valve guide
|
|
| 7. |
VOE11713652
|
|
Seal
|
|
| 8. |
VOE11713651
|
|
Seal
|
|
| 9. |
VOE11714711
|
|
Valve spring
|
|
| 10. |
VOE11714712
|
|
Spring retainer
|
|
| 11. |
VOE11713654
|
|
Valve sleeve
|
|
| 12. |
VOE11713647
|
|
Cap
|
|
| 13. |
VOE11714387
|
|
Spring pin
|
|
| 14. |
VOE11714381
|
|
Seat
|
|
| 15. |
VOE14521532
|
|
Protection
|
|
| 16. |
|
|
Injector
|
|
| 17. |
VOE11714281
|
|
Flange screw
|
|
| 18. |
VOE11713655
|
|
Washer
|
|
| 19. |
VOE11713653
|
|
Retainer
|
|
| 20. |
VOE11714378
|
|
Lifting bracket
|
|
| 21. |
VOE11714372
|
|
Bolt
|
|
| 22. |
VOE11714660
|
|
Valve cover
|
|
| 23. |
VOE11714385
|
|
Flange cap nut
|
|
| 24. |
VOE11714386
|
|
O-ring
|
|
| 25. |
VOE11713657
|
|
Plate
|
|
| 26. |
VOE11714720
|
|
Screw
|
|
| 27. |
VOE11713658
|
|
Baffle
|
|
| 28. |
VOE11714718
|
|
Cover
|
|
| 29. |
VOE11714719
|
|
Spring
|
|
| 30. |
VOE11713659
|
|
Plate
|
|
| 31. |
VOE11713661
|
|
Diaphragm
|
|
| 32. |
VOE11714720
|
|
Screw
|
|
| 33. |
VOE11714612
|
|
Gasket
|
|
| 34. |
VOE11714383
|
|
Cap
|
|
| 35. |
VOE11714371
|
|
O-ring
|
|
| 36. |
VOE11713588
|
|
Flange screw
|
|
| 37. |
VOE11714611
|
|
Gasket
|
|
