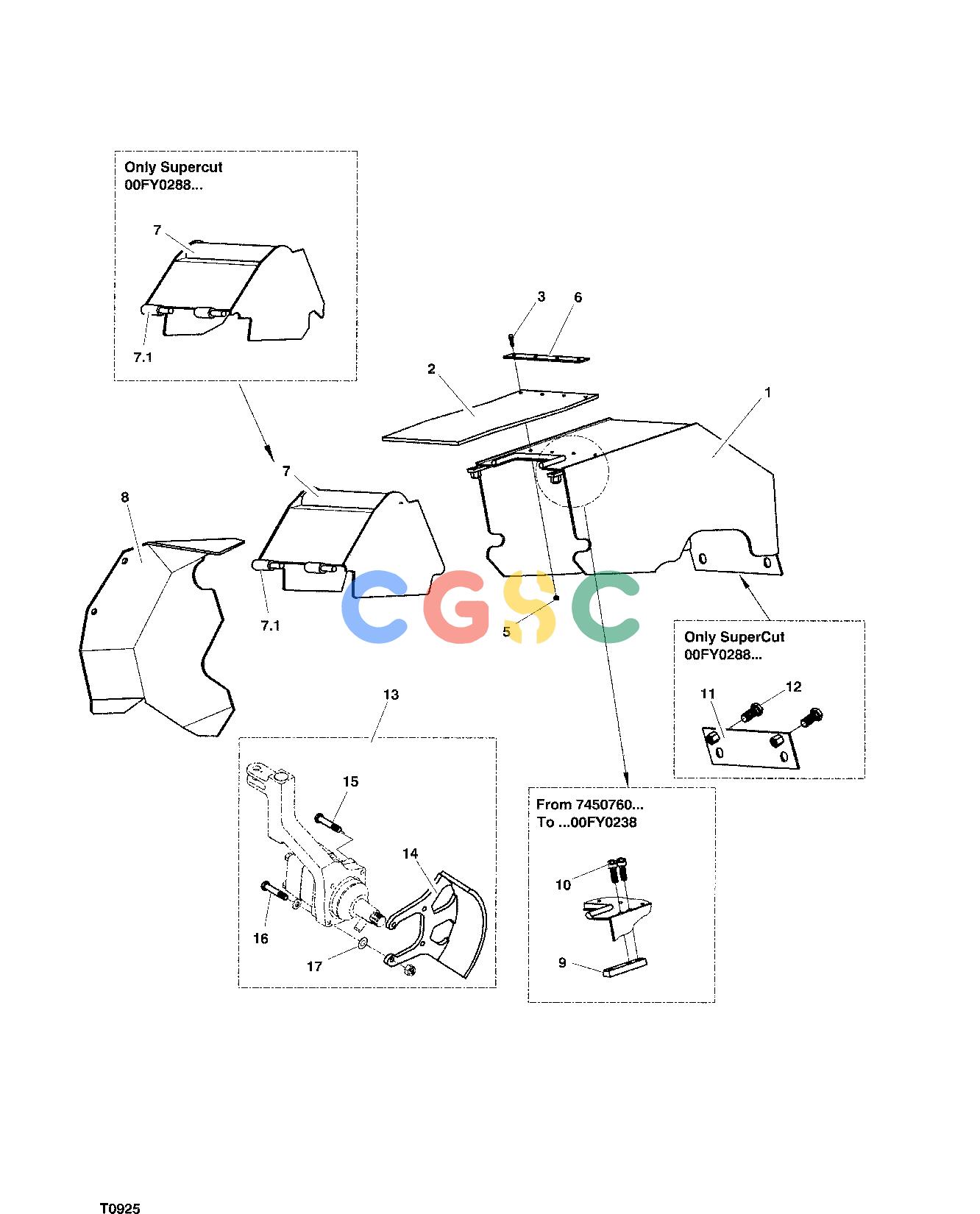

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE COVER F045006 11 4 T0925 [T0925]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047679
|
[1] |
Cover
|
|
| 1. |
F054227
|
[1] |
Shield
|
|
| 2. |
F047680
|
[1] |
PROTECTION PLATE
|
|
| 3. |
F003520
|
[4] |
Screw
|
|
| 5. |
F003586
|
[4] |
Lock Nut
|
|
| 6. |
F047681
|
[1] |
Plate
|
|
| 7. |
F047637
|
[1] |
Cover
|
|
| 7. |
F054228
|
[1] |
Shield
|
|
| 7. |
F060950
|
[1] |
PROTECTION
|
|
| 7.1. |
F047682
|
[2] |
Hinge
|
|
| 8. |
F058631
|
[1] |
Shield
|
|
| 9. |
F054232
|
[2] |
Plate
|
|
| 10. |
F002912
|
[4] |
Cap Screw
|
|
| 11. |
F060951
|
[1] |
EXTENSION PIECE
|
|
| 12. |
F040644
|
[2] |
Screw
|
|
| 13. |
F061408
|
[1] |
Shield
|
|
| 14. |
F061409
|
[1] |
Shield
|
|
| 15. |
F035848
|
[2] |
Screw
|
|
| 16. |
F061410
|
[2] |
Screw
|
|
| 17. |
F003341
|
[4] |
Washer
|
|
