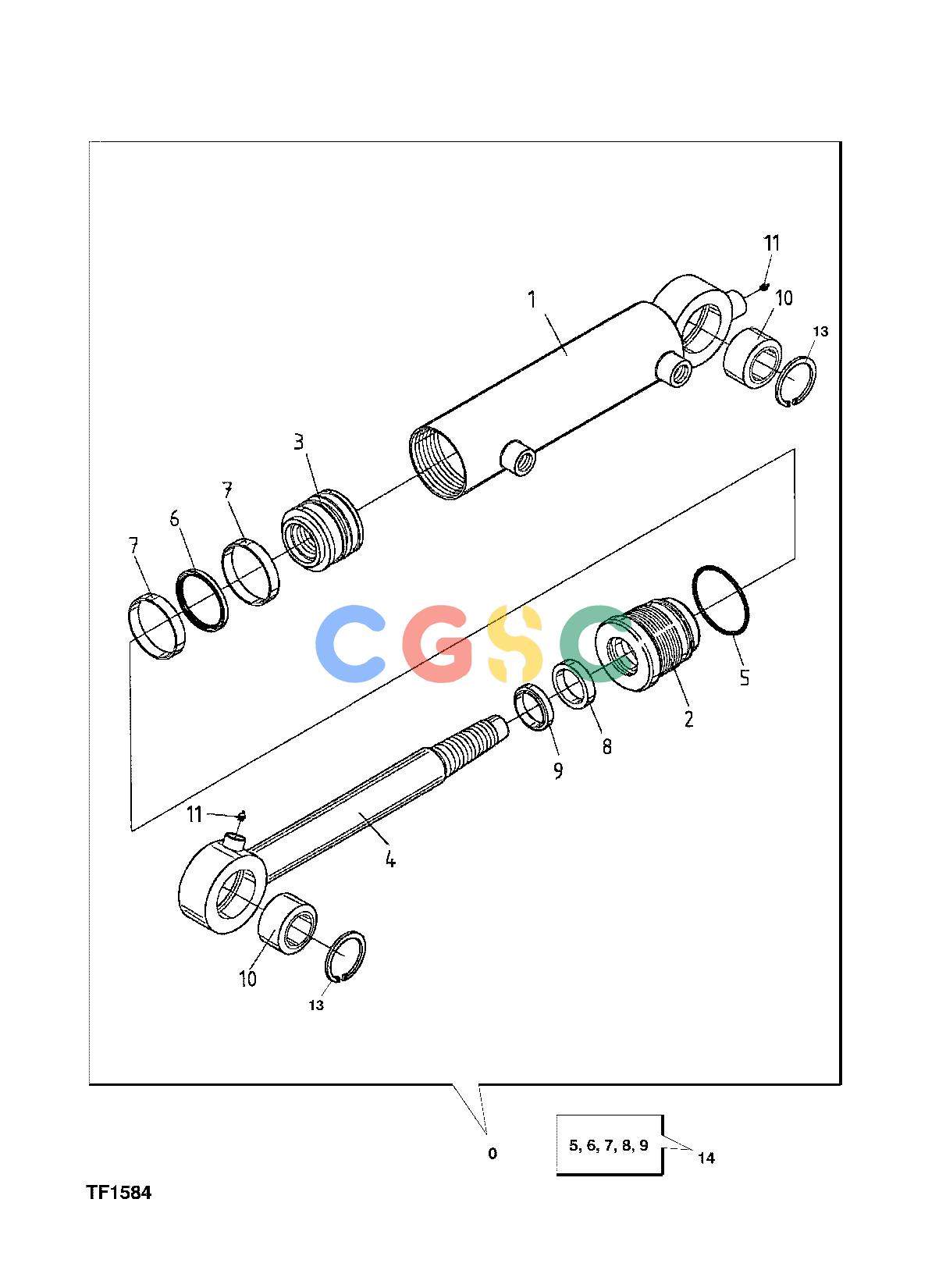

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE CYLINDER, SAW AND BACK KNIVES F045006 11 44.1 TF1584 [TF1584]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
816 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F058141
|
[1] |
CYLINDER ASSY
|
|
| 1. |
F058142
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F058143
|
[1] |
Guide
|
|
| 3. |
F058144
|
[1] |
Piston
|
|
| 4. |
F058145
|
[1] |
PISTON ROD
|
|
| 5. |
F035259
|
[1] |
O-Ring
|
|
| 6. |
F047879
|
[1] |
SEAL RING
|
|
| 7. |
F047882
|
[2] |
GUIDE RING
|
|
| 8. |
F047880
|
[1] |
Seal
|
|
| 9. |
F047881
|
[1] |
Scraper
|
|
| 10. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 11. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 13. |
F003370
|
[2] |
CIRCLIP
|
|
| |
F047883
|
[1] |
Seal Kit
|
|
