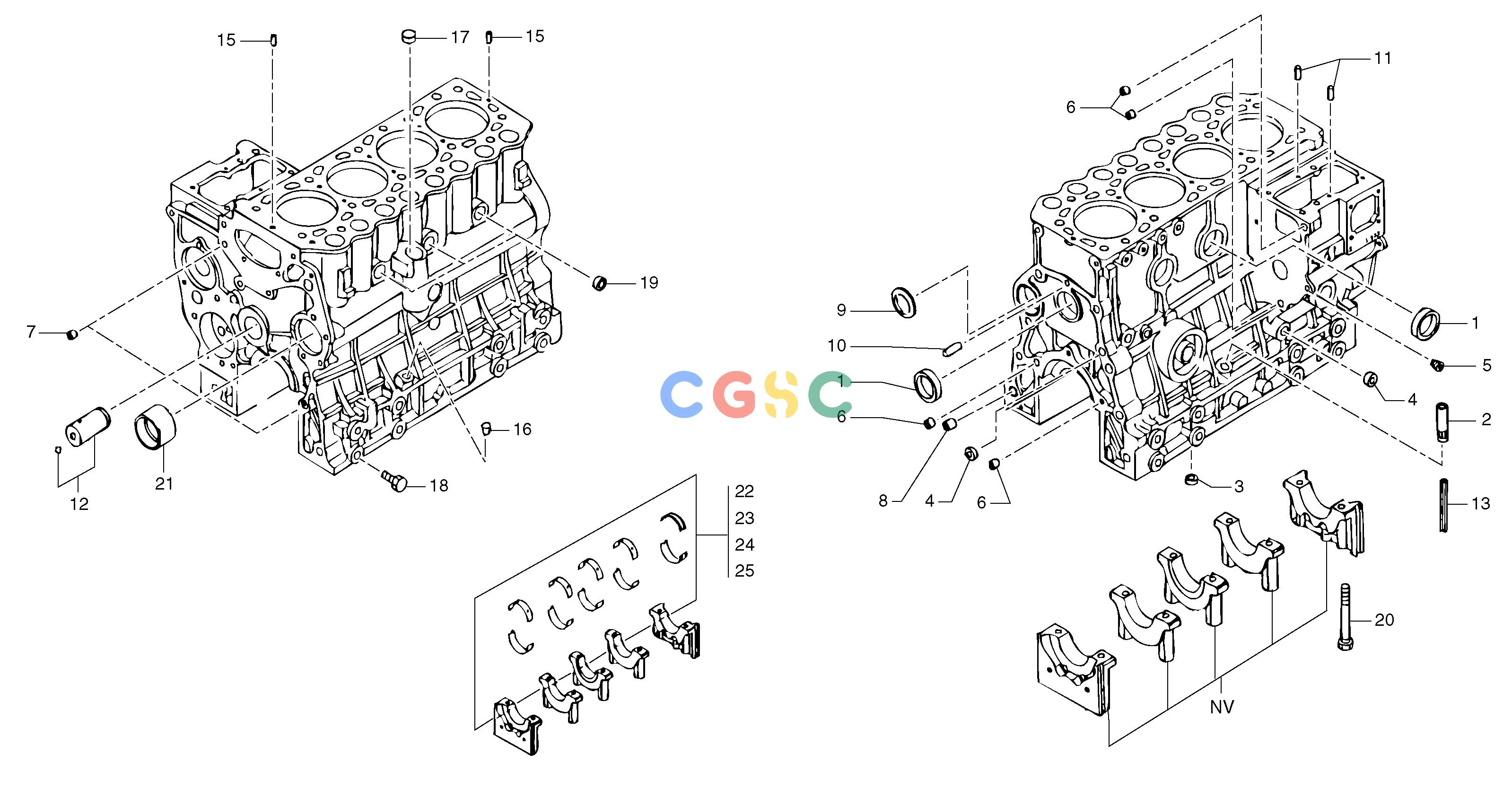

沃尔沃零件查询EC35 Cylinder blockTYPE 283283.10151 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
353 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7417807
|
[3] |
Plug
|
|
| 2. |
PJ7411338
|
[1] |
Giude
|
|
| 3. |
PJ7415346
|
[1] |
Plug
|
|
| 4. |
PJ7415347
|
[3] |
Plug
|
|
| 5. |
PJ7410691
|
[1] |
Plug
|
|
| 6. |
PJ7410403
|
[4] |
Bushing
|
|
| 7. |
PJ7410404
|
[2] |
Bushing
|
|
| 8. |
PJ7410405
|
[1] |
Bushing
|
|
| 9. |
PJ7410142
|
[1] |
Plug
|
|
| 10. |
PJ7410129
|
[1] |
Centraliser
|
|
| 11. |
PJ7410287
|
[2] |
Centraliser
|
|
| 12. |
PJ7415475
|
[1] |
Shaft
|
|
| 13. |
PJ7417809
|
[4] |
Seal
|
|
| 15. |
PJ7415322
|
[2] |
Centraliser
|
|
| 16. |
PJ7415332
|
[1] |
Plug
|
|
| 17. |
PJ7410143
|
[1] |
Plug
|
|
| 18. |
PJ7410089
|
[4] |
Screw
|
|
| 19. |
PJ7417806
|
[3] |
Plug
|
|
| 20. |
PJ7417846
|
[10] |
Bolt
|
|
| 21. |
PJ7415458
|
[1] |
Bushing
|
|
| 22. |
PJ7411321
|
[1] |
Bearings (kit)
|
STD SZ
|
| 23. |
PJ7415377
|
[1] |
Bearings (kit)
|
0,25 mm, 0.0096 in
|
| 24. |
PJ7415378
|
[1] |
Bearings (kit)
|
0,50 mm, 0.0197 in
|
| 25. |
PJ7415379
|
[1] |
Bearings (kit)
|
0,75 mm, 0.0295 in
|
