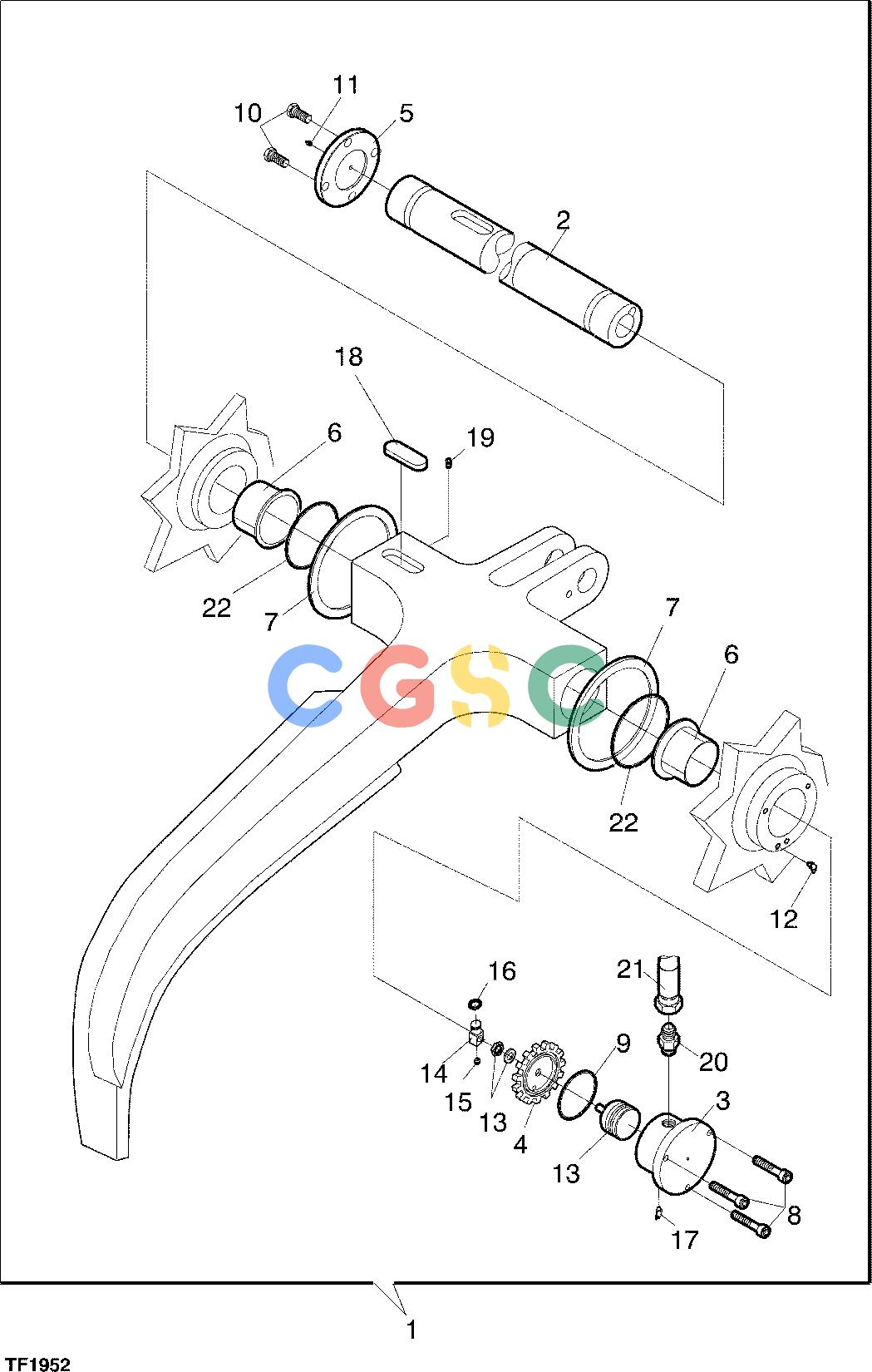

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE DIAMETER MEASURING F045006 11 14.1 TF1952 [TF1952]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F060378
|
[1] |
DIAMETER MEASURING
|
|
| 2. |
F060379
|
[1] |
PIVOT PIN
|
|
| 3. |
F059233
|
[1] |
Cap
|
|
| 4. |
F059234
|
[1] |
Shim
|
|
| 5. |
F059235
|
[1] |
Cover
|
|
| 6. |
F046322
|
[2] |
BEARING BUSHING
|
|
| 7. |
F060380
|
[2] |
Ring
|
|
| 8. |
F016303
|
[3] |
Cap Screw
|
|
| 9. |
F059237
|
[1] |
O-Ring
|
|
| 10. |
F003523
|
[4] |
Screw
|
|
| 11. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 12. |
F023581
|
[1] |
GREASE NIPPLE
|
|
| 13. |
F021413
|
[1] |
Sensor
|
|
| 14. |
F047711
|
[1] |
Clutch
|
|
| 15. |
F003466
|
[1] |
Set Screw
|
|
| 16. |
F047690
|
[1] |
O-Ring
|
|
| 17. |
F024847
|
[1] |
GREASE NIPPLE
|
|
| 18. |
F059238
|
[1] |
Wedge
|
|
| 19. |
F007666
|
[1] |
Set Screw
|
|
| 20. |
F005057
|
[1] |
Adapter
|
|
| 21. |
F047828
|
[1] |
HOSE-ASSY
|
|
| 22. |
F060381
|
[2] |
O-Ring
|
|
